Inductor (Optional Equipment)
The Inductor option is used to induct chemical into
the main sprayer tank so that the operator doesn’t
have to climb up the walk-board to do so.
To induct chemical into the tank refer to the follow-
ing instructions:
Refer to Figure 18
1. Fill the main sprayer tank with the carrier
needed and transport the sprayer to the field
where the sprayer will be used.
2. Make sure the boom section switches are all
off and operate the pump.
3. Turn the agitation valve #1 to “AGITATION”,
the tank valve #2 to “MAIN TANK” and the op-
eration valve #3 to “SPRAY”. Be sure the
valve to the tank is open.
4. Turn the product valve #4 from “OFF” to “IN-
DUCT”.
5. Add chemical to inductor tank.
6. Turn inductor valve #5 from “INDUCTOR
OFF” to “INDUCTOR ON”.
Raven G1 Autoboom (Optional
Equipment)
The Raven Autoboom is a system that helps auto-
matically adjust the height of the boom to
changing terrain. Although this option will allow
the sprayer to be driven faster most of the time,
take care to avoid large obstacles and large ter-
races as the autoboom will only sense terrain
changes at the point of the wheel sensor.
For information on installation, calibration, and
operation of the system, refer to the Raven manu-
als supplied.

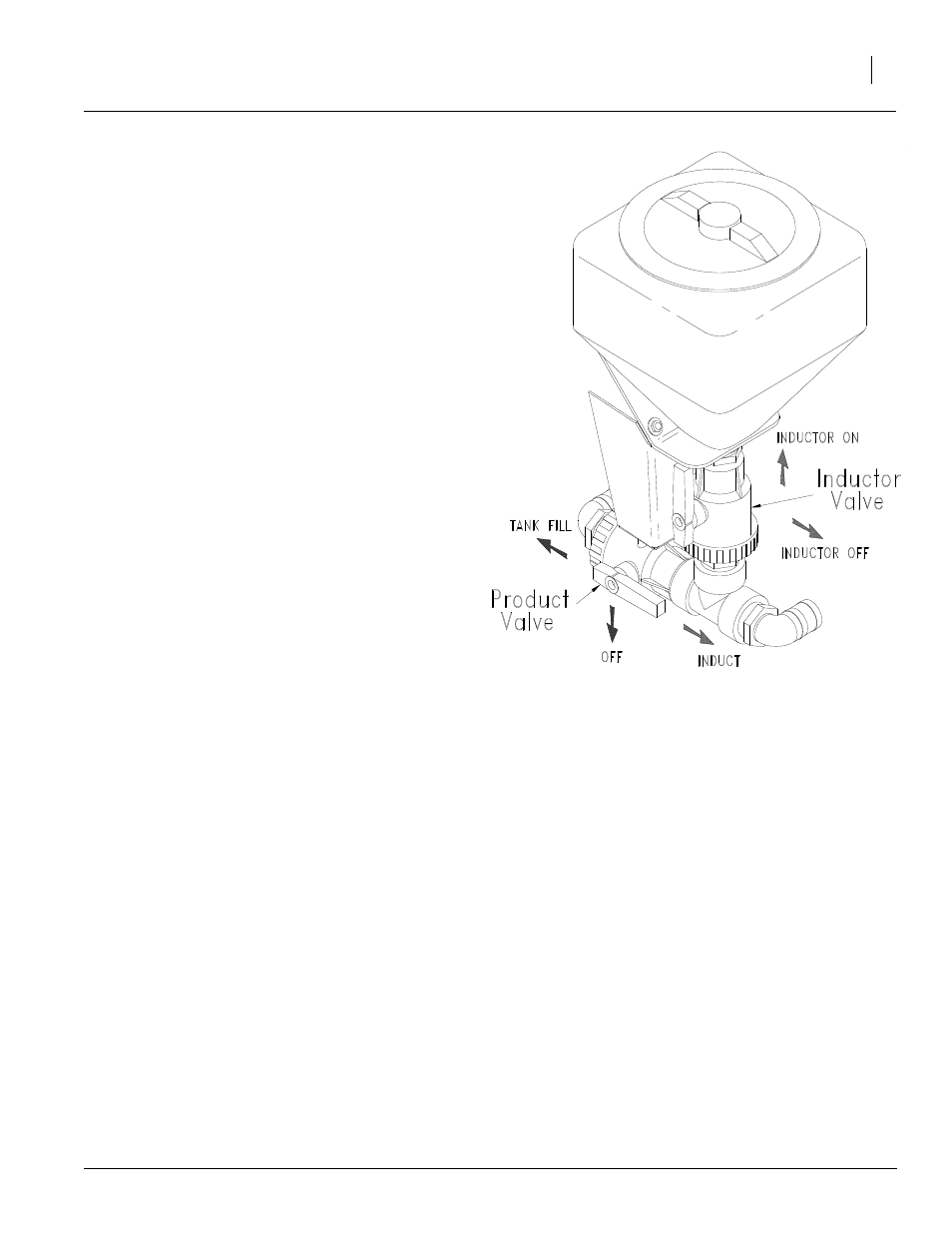

Figure 18
Product Valve and Inductor Valve
