Agitation Adjustment
Refer to Figure 22
The agitation valve is used to adjust the pressure
to the agitation nozzles in the tank. Refer to the
agitation gauge, and adjust the pressure to a de-
sired rate. Different chemicals require different
agitation pressures to keep the chemical in
suspension.
!
CAUTION
If using liquid fertilizer or any other chemical that will
corrode brass, install a gauge protector under the
brass agitation gauge or plug the gauge hole. Failure
to do so will eventually cause the gauge to fail and
chemical to be expelled from the gauge.
Operating Whirlfilter ®
There is one Whirlfilter ® on the Great Plains
Sprayer. The Whirlfilter ® filters the chemical solu-
tion being sprayed.
Refer to Figure 23
Clean-out the solution Whirlfilter ®
1. Fill the sprayer tank with water and turn the
pump on.
2. With the pump running, slowly open the
clean-out valve and allow the grit to flow out
into a bucket. Clean out the solution Whirlfil-
ter
® only when the sprayer tank is filled with
water and no chemical has been added.
3. Close the clean-out valve and turn off the
pump.
4. Dispose of the grit and water in the same
manner described on the manufacturer’s la-
bel of the latest chemical used in the sprayer.
24495

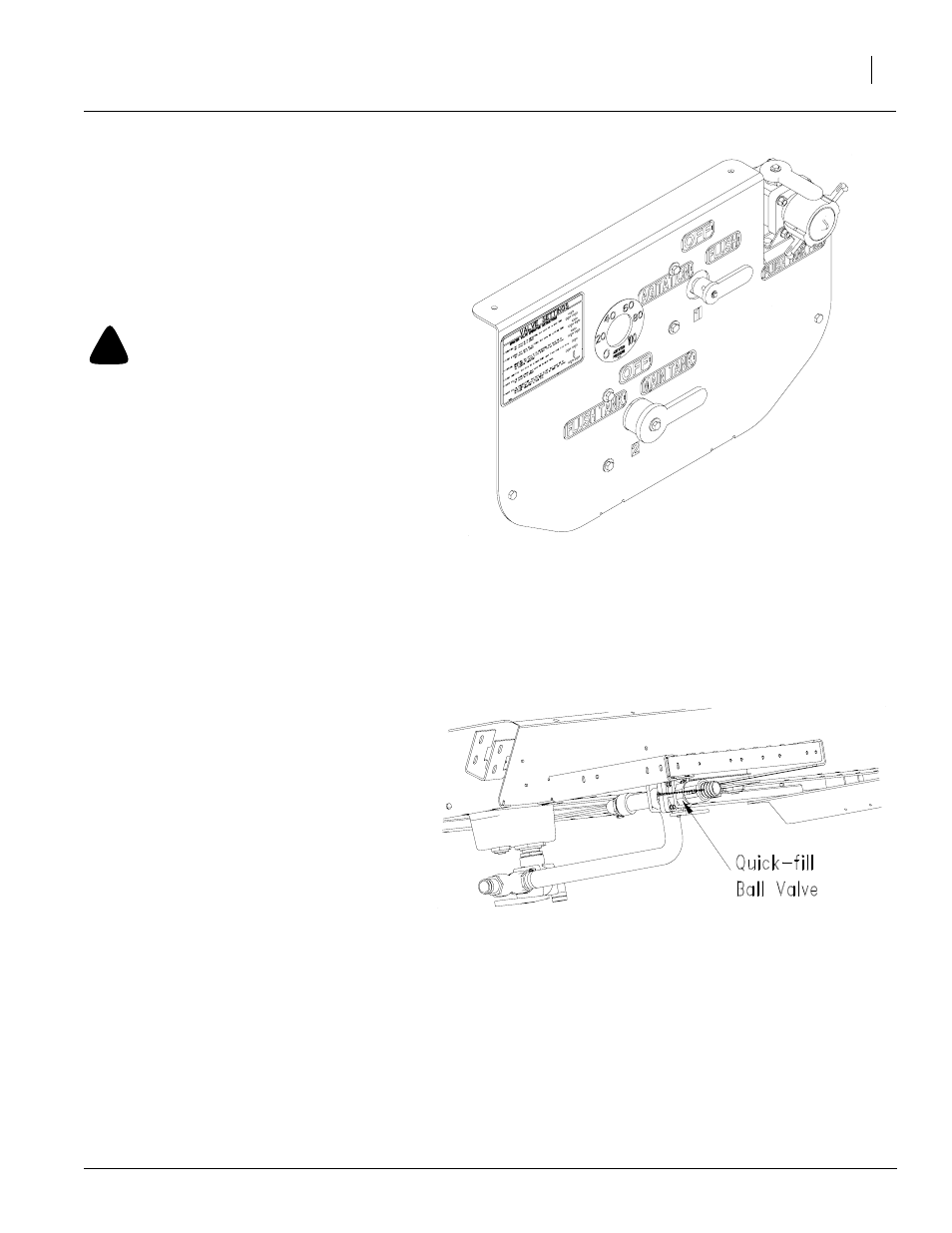

Figure 22
