Great Plains Manufacturing, Inc. Table of Contents Index Appendix C - Initial Setup 41
03/31/2011 Table of Contents Index 407-451M

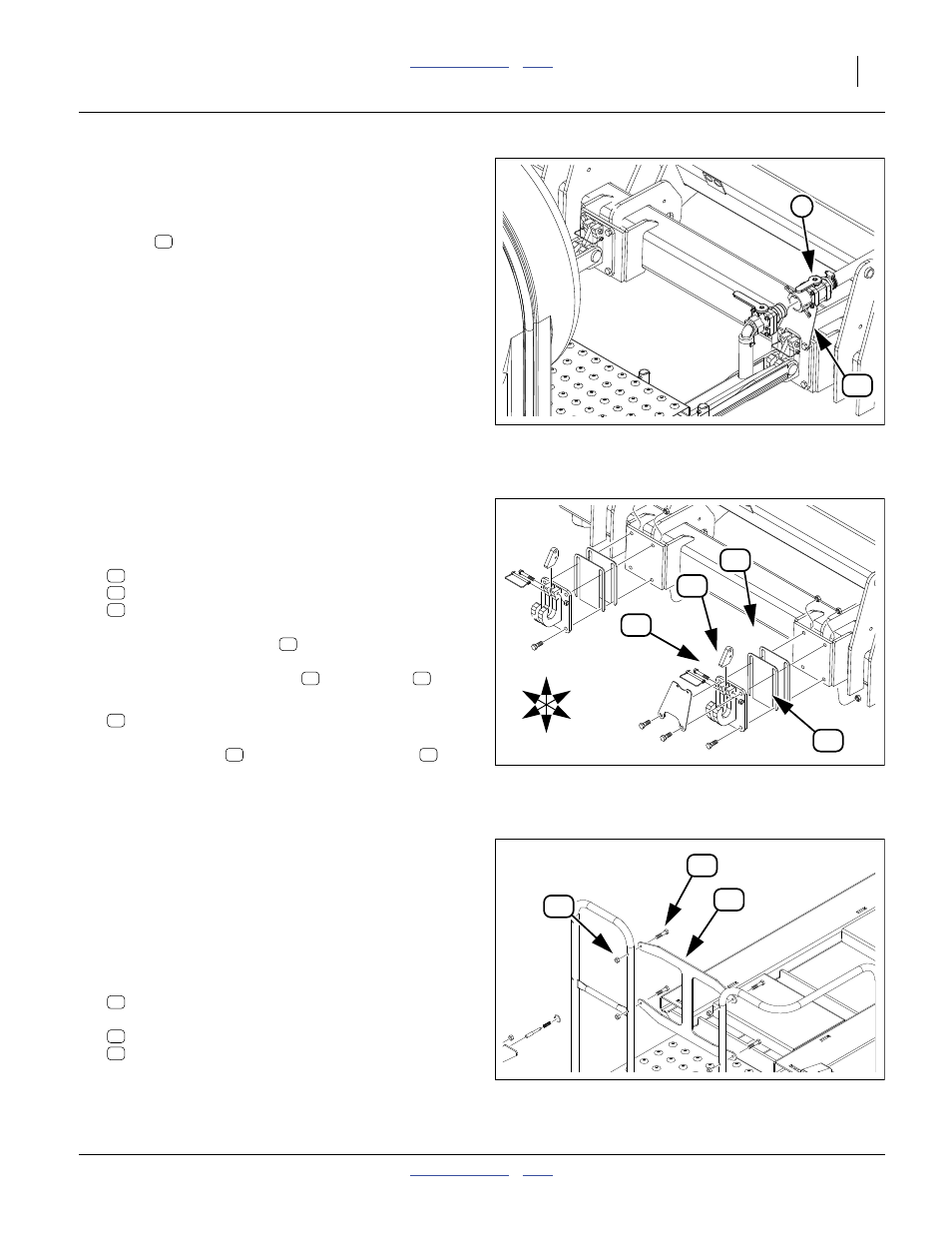

Mount Boom Inlet
Refer to Figure 27 (which depicts cart hitched -
do not hitch cart at this time)
5.
Re-mount the Type 2 boom inlet on the new
mount
.
Install Hitch Latches
If the latches and pins are already installed, skip step 6
and step 7.
Refer to Figure 28
6.
Select two sets:
407-566D QUICK HITCH LATCH PLATE
802-099C HHCS 1/2-13X3 1/4 GR5
803-019C NUT LOCK 1/2-13 PLT
Position each latch plate with the larger hole on
top and both holes to front. Secure between top
holes in hitch hook with bolt
and lock nut .
7. Select two:
805-200C PIN WIRE SNAP LOCK 3/8 X 4
With latch plates fully lowered, insert pins
through lower holes of hitch hooks and latch plates.
Pull up at bottom of latch plates to verify pin engage-
ment.
Check Handrail Fill
This topic applies only to the SML-750 Gallon Cart and
the SML-500 Gallon Cart when used with the YP2425
planter. In this configuration, a section of handrail is
removed to provide access to the YP24 walkboard from
the cart walkboard.
Refer to Figure 29
8.
Remove one:
407-567D PLATE HANDRAIL FILL
and four sets:
802-143C HHCS 3/8-16X2 GR5
803-013C NUT LOCK 3/8-16 PLT
These parts are not required while the cart is used
with the YP24.
MetaData: End of “Appendix C - Initial Setup”
Null4:
Figure 27
Re-Install Boom Inlet
31495
2
25
25
Null4:
Figure 28
Install Quick Hitches
31492
32
23
46
35
U
D
B
F
R
L
23
32
35
23
32 35
46
23 46
Null4:
Figure 29
YP24 Only: Remove Filler
31479
33
24
34
24
33
34
