12 SML-1000, SML-750, SML-500 Table of Contents Index Great Plains Manufacturing, Inc.
407-451M Table of Contents Index 03/31/2011
Crushing / Loss of Control Hazards:
Do not move the cart by hand. Even when empty, the cart is too
heavy for safe hand movement. Wheel castering can also cause
sudden changes in tongue weight. Attempting hand moves
could result in serious injury or equipment damage. Use a
powered hoist or lift if the cart must be moved for alignment
with towing implement.
Open Implement Hitches
At the implement, if the hitches are closed, latch them
both open.
Refer to Figure 5
1.
Remove the snap lock wire pin .
2. Flip the latch plate fully up.
3. Re-insert the pin in the plate only.
Hitch Cart and Implement
4. Bring implement and cart into close alignment.
Refer to Figure 5 and Figure 7
5.
Use the parking stand jacks (page 14) to raise the
cart arms above the quick hitch hooks
.
6. Move the implement and/or cart into contact.
7. Use the parking jacks to lower the cart arms into the
quick hitch hooks.
8. Remove the snap lock wire pins , allow the latch
plates to fall.
9. Insert pins through both hook risers and latch plates.
Pull up on plates to verify pinning. Secure the pins
with the wire bails.
Null4:
Null4:
Null4:
Roll-Away Hazard:
Prior to hitching cart, ensure implement cannot move. If
implement is hitched to a tractor, set tractor brakes or put trac-
tor in Park. Block tires if no tractor is hitched. Once weight is
off the cart parking stand, the cart can roll freely. If the ground
is unlevel, the cart could cause the implement to move. The
parking stand of an unhitched implement may not prevent roll-
away. A roll-away accident could result in equipment damage,
serious injury or death.

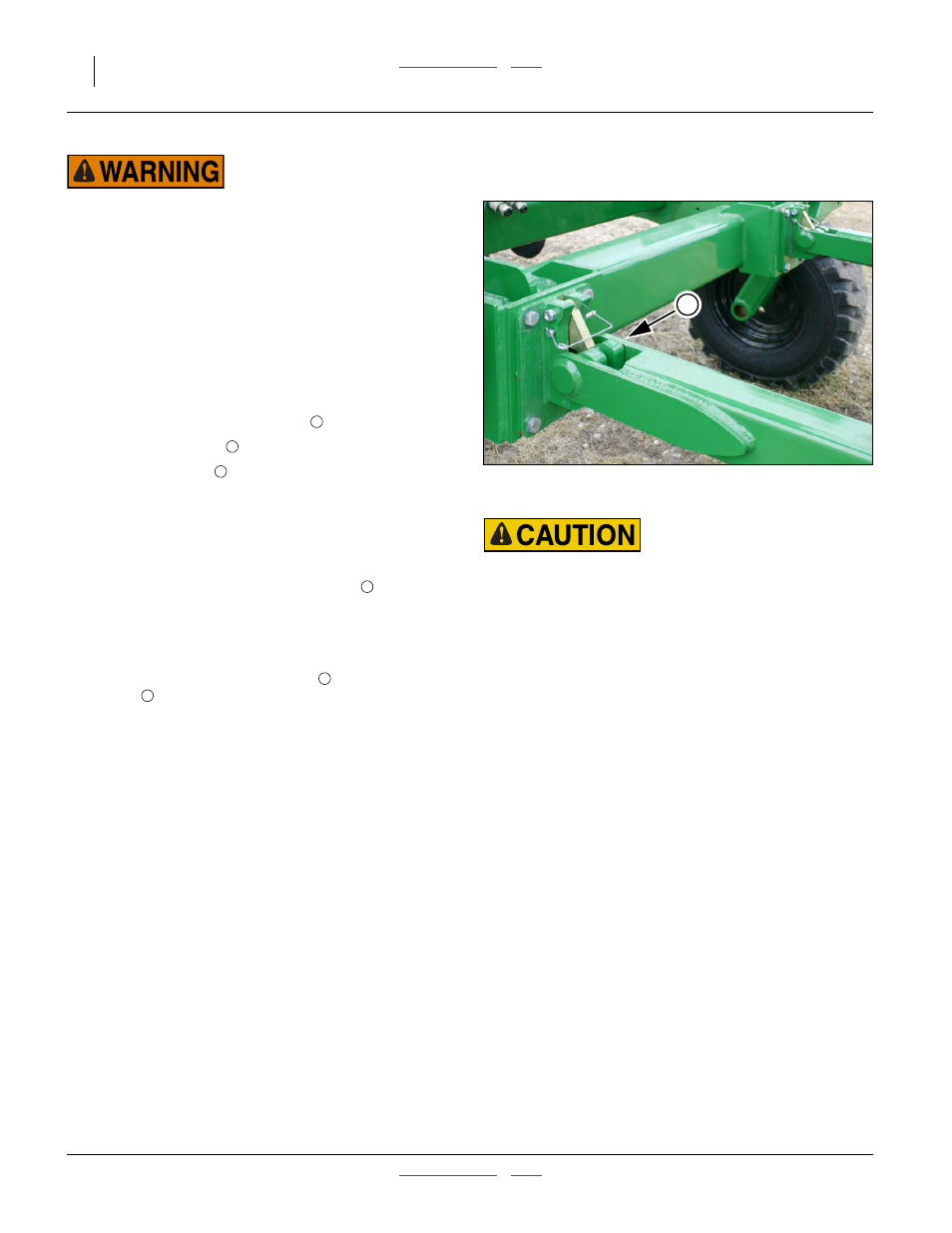

Figure 7:
Cart Hitched to Implement
31485
4
1
2
3
4
1
2
