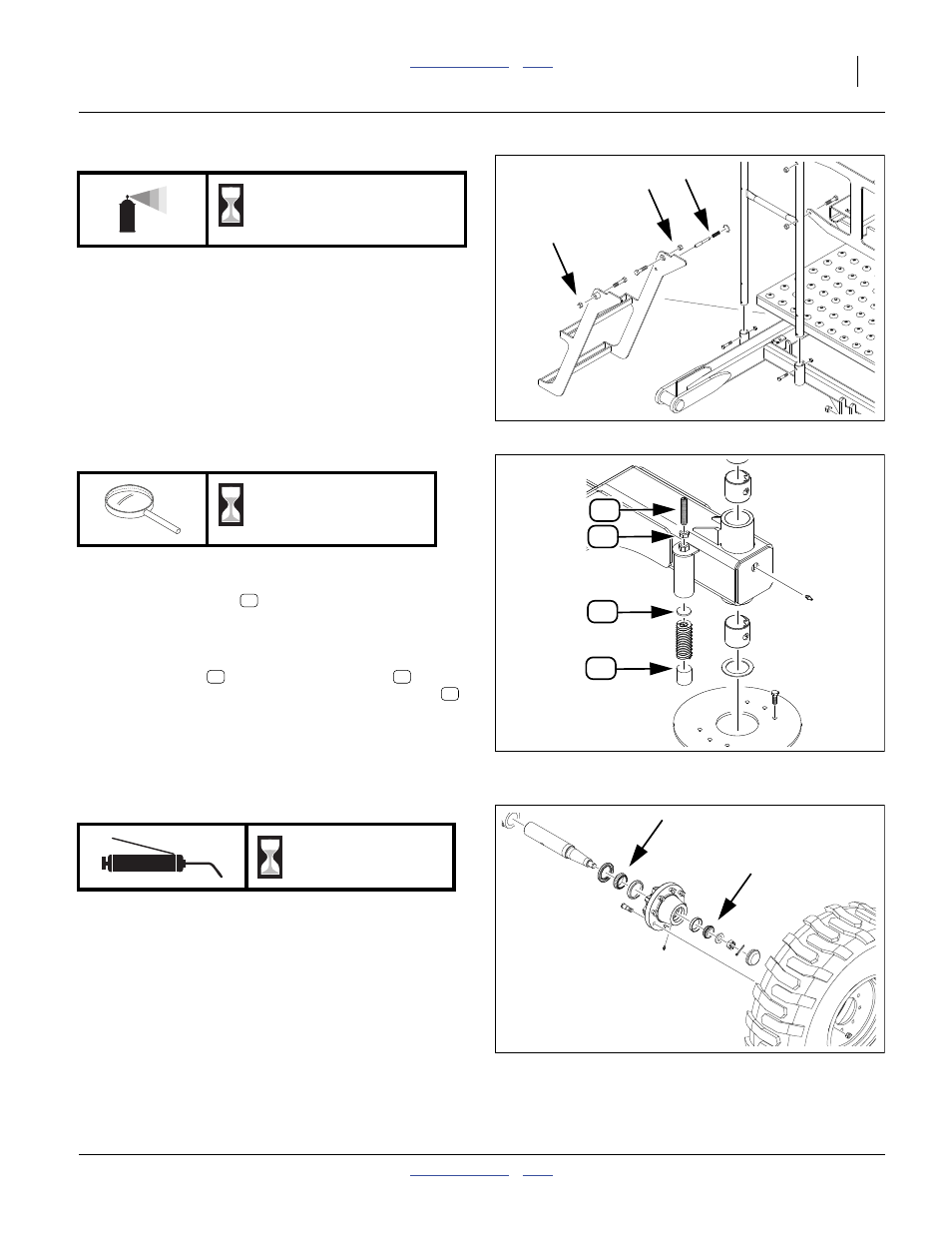

Walkboard Hinges
2 pivot points,
1 spring-load pin
Type of Lubrication: Spray lube
Quantity: Coat thoroughly
Null4:
Caster Stabilizers
One UHMW brake piston each caster;
2 total.
Replace UHMW piston if its length is less than 3.2cm
(1
1 ⁄
4
in). Also replace piston if missing, damaged, tilted,
or top of piston is visible.
To set spring tension with a new piston:
a. Loosen jam nut
and back out set screw .
b. Drive screw in (down) until it contacts spring plate .
c. Drive screw in another 1 inch (2.5cm).
d. Tighten jam nut.
Use more tension as needed to eliminate caster vibration
during highway transport.
Null4:
Wing Casters: Wheel Hubs
4 bearings; 2 each wing
Type of Lubrication: Grease
Quantity: Re-pack
MetaData: End of “Lubrication and Scheduled Maintenance”
MetaData: End of “Maintenance and Lubrication”
