8-18
Quick fixed automation series torches
SM-QFTORCH FIXED AuTOMATION CONDuITS LINERS

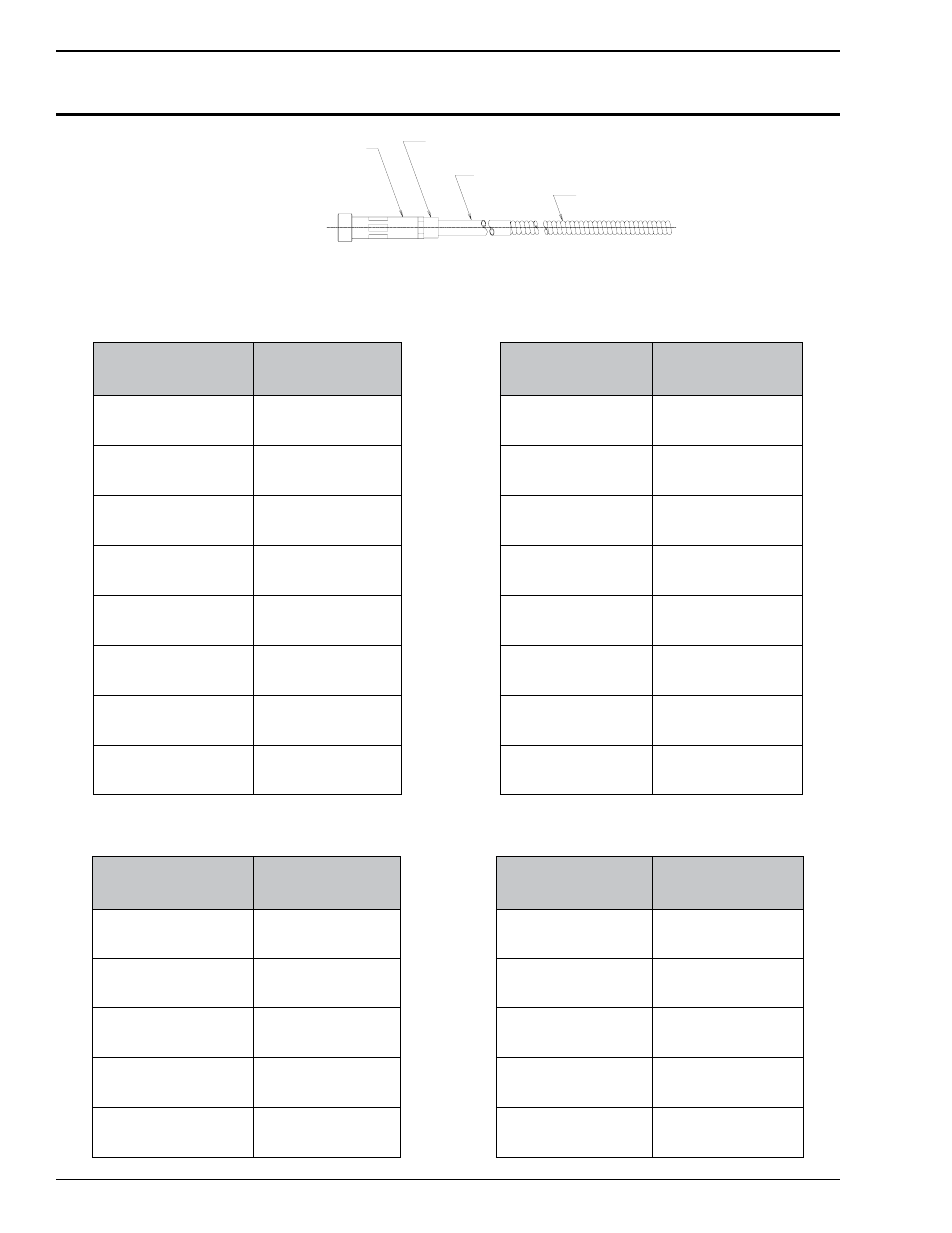

SECTION 8:
FIXED AUTOMATION CONDUITS LINERS
MACHINED CONDUIT STOP
WIRE CONDUIT
NEOPRENE SEAL
HEAT SHRINK
Art # JB-00018
R44 Series Conduits R45 Series Conduits
(Steel Weldng Wre) (Steel Weldng Wre)
Wire Size
Part No.
Stock No. Wire Size
Part No.
Stock No.
.035” / .045”
0,9mm / 1,2mm
R44-3545-1
1440-1223
.035” / .045”
0,9mm / 1,2mm
R45-3545-1
1450-1027
.035” / .045”
0,9mm / 1,2mm
R44-3545-4
1440-1224
.035” / .045”
0,9mm / 1,2mm
R45-3545-4
1450-1024
.035” / .045”
0,9mm / 1,2mm
R44-3545-8
1440-1225
.035” / .045”
0,9mm / 1,2mm
R45-3545-8
1450-1025
.035” / .045”
0,9mm / 1,2mm
R44-3545-15
1440-1226
.035” / .045”
0,9mm / 1,2mm
R45-3545-15
1450-1026
.052” / 1/16”
1,53mm / 1,6mm
R44-116-1
1440-1228
.052” / 1/16”
1,53mm / 1,6mm
R45-116-1
1450-1028
.052” / 1/16”
1,53mm / 1,6mm
R44-116-4
1440-1229
.052” / 1/16”
1,53mm / 1,6mm
R45-116-4
1450-1029
.052” / 1/16”
1,53mm / 1,6mm
R44-116-8
1440-1230
.052” / 1/16”
1,53mm / 1,6mm
R45-116-8
1450-1030
.052” / 1/16”
1,53mm / 1,6mm
R44-116-15
1440-1231
.052” / 1/16”
1,53mm / 1,6mm
R45-116-15
1450-1031
(Alumnum Weldng Wre) (Alumnum Weldng Wre)
Wire Size
Part No.
Stock No. Wire Size
Part No.
Stock No.
.035” / .045”
0,9mm / 1,2mm
R44WN-3545-4
1440-1040
.035” / .045”
0,9mm / 1,2mm
R45WN-3545-4
1450-1041
.035” / .045”
0,9mm / 1,2mm
R44WN-3545-8
1440-1041
.035” / .045”
0,9mm / 1,2mm
R45WN-3545-8
1450-1042
.035” / .045”
0,9mm / 1,2mm
R44WN-3545-15
1440-1042
.035” / .045”
0,9mm / 1,2mm
R45WN-3545-15
1450-1043
1/16”
1,6mm
R44WN-116-8
1440-1046
1/16”
1,6mm
R45WN-116-8
1450-1044
1/16”
1,6mm
R44WN-116-15
1440-1047
1/16”
1,6mm
R45WN-116-15
1450-1045
MACHINED CONDuIT STOP
