SECTION 9: WeldSkill Auto-Darkening Filter Lens Controls
9.01 WeldSkill Fixed Shade 11 Auto-Darkening Filter Lens Controls.
WARNING
For your protection and maximum efficiency of your product, please study this information carefully before
use
.
For your protection and maximum efficiency of your product, please study this information carefully before use.

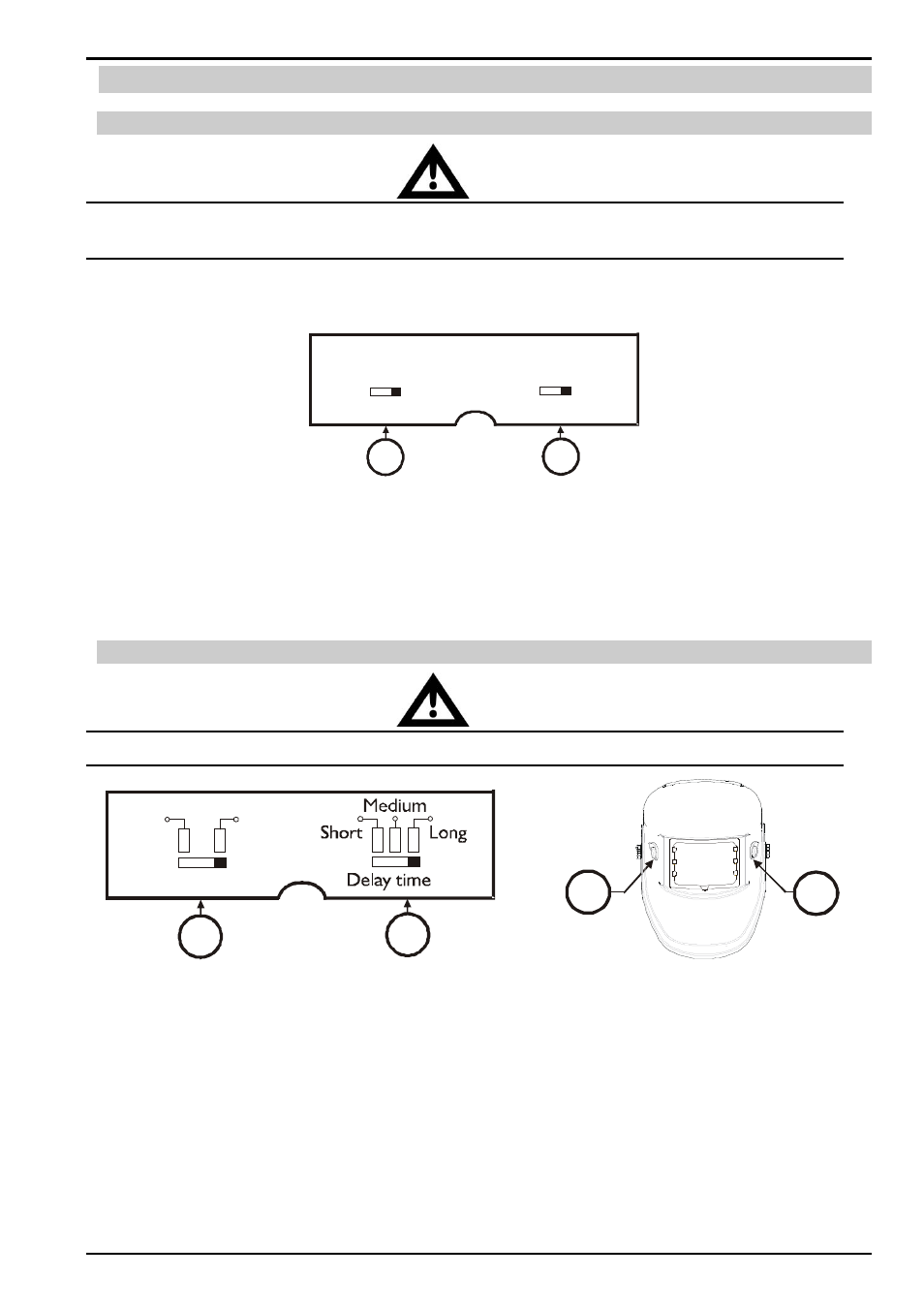

Figure 1 - WeldSkill Fixed Shade 11 Auto-Darkening Filter Lens Controls
1. Sensitivity Switch: The Sensitivity Switch is used to make the Filter Lens more responsive to different light levels. Manually
adjust the sensitivity level as required for the application.
2. Delay Switch: The Delay Switch is used to adjust the hold time of the Filter lens after welding is completed. Manually adjust
Delay time to desired level as required for application.
9.02 WeldSkill Variable Shade 9-13 Auto-Darkening Filter Lens Controls.
WARNING
Ensure that switch is set to welding mode when welding.
4 3
O perating Instructions
Figure 2 - WeldSkill Variable Shade 9-13 Auto-Darkening Filter Lens Controls
Sensitivity
Low High
2 1
Delay time
Long Short
454306
2 1
Mode
Grinding Welding
454307
Warning: Additional
eye & face protection
recommended
when grinding
