SECTION 6: Harness Adjustment
Prior to use, the Welding Helmet must be adjusted for maximum comfort and protection.
WARNING
The Helmet should be adjusted such that it is effectively positioned over the eyes and face to ensure adequate
protection and comfort whilst welding.

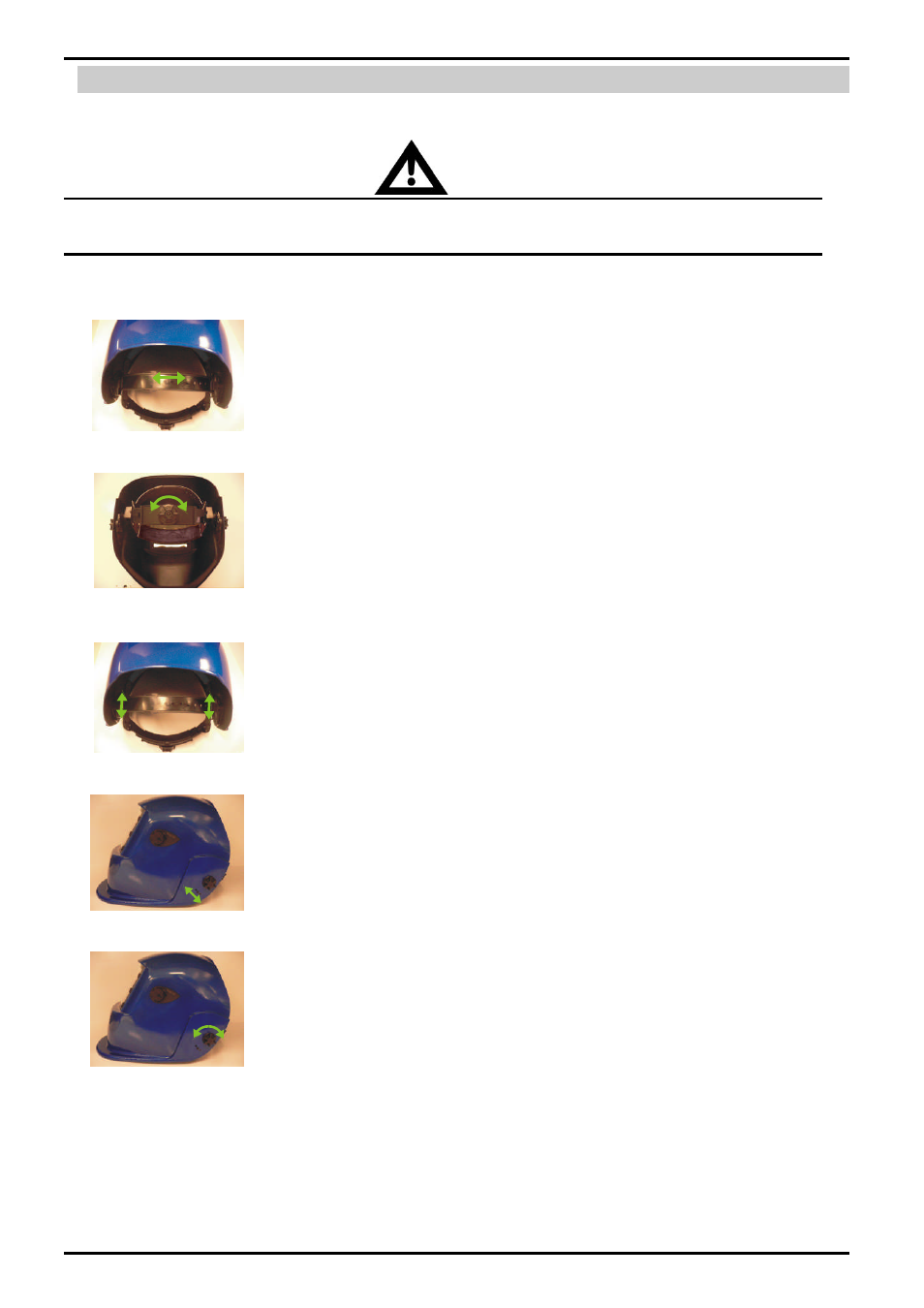

Please refer to the Harness adjustment instructions below.
1. Top Head Band
To adjust the top of Head Band move the Head Band in the direction of either arrow (as
pictured) to align the centre of the harness with centre of the Filter Lens viewing window.
2. Back of Head Band.
To adjust the back of Head Band push down the Knob and turn to the left or right to adjust to
size.
3. Distance of Harness from Filter Lens.
There are 3 positions possible that the Harness can be set upon to achieve the desired distance
between the welder’s eyes and the Filter Lens.
4. Incline Angle Adjustment.
There are 3 positions available (as pictured) for adjusting the angle from the welder’s eyes to the
Filter lens.
5. Helmet Tilt Position.
The Helmet is designed to be tilted and fixed into position whilst not welding. Loosen the
adjustment knobs (as pictured) located on either side of the helmet, once in desired position
tighten adjustment knobs to fix into place.
