TRANSMIG VAF4HD
INSTALLATION, OPERATION AND SETUP 3-26 Manual 0-5269

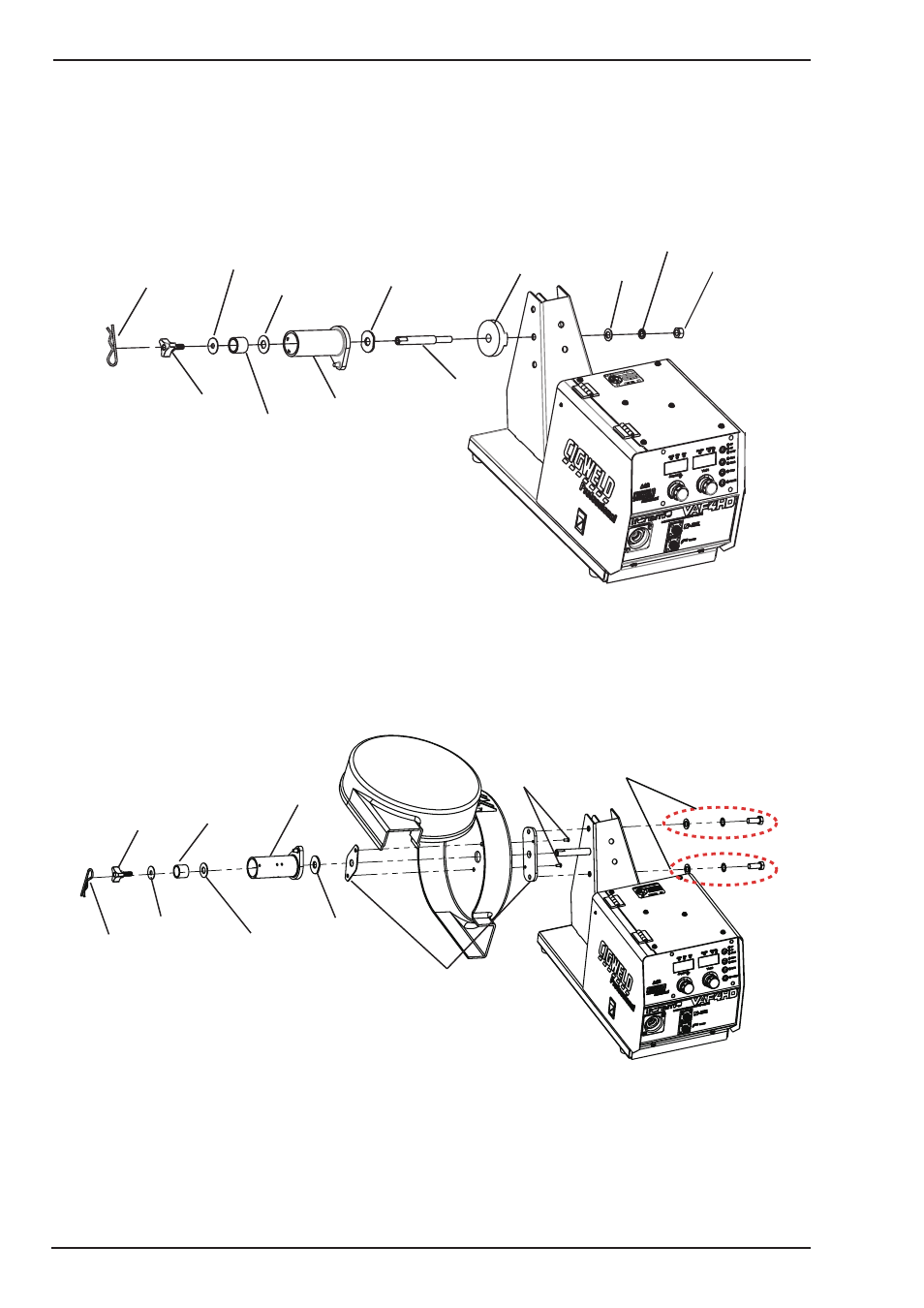

Spool cover is assembled in the following steps:
1. Remove the spool hub assembly.
a. Remove the clip from the spool hub.
b. Unscrew the 3-lobe screw.
c. Remove the spool hub parts and the spacer in the following sequence. Note that the spacer is not
required when fitting the spool cover.
Hexagon Nut
Spring Washer
Flat Washer,large hole
Spacer
Shaft
Friction Washer
Hub Wire Reel
Keyed Washer
Compression Spring
Flat Washer, small hole
3-lobe Screw
Retaining Clip
Art # A-11771
Figure 3-23 Removing Spool Hub Assembly
2. Assemble the Spool Cover Mounting Brackets, one inside and one outside the spool cover, with the two
countersunk screws M5 x 12.
3. Secure the spool cover assembly to the spool support arm with M12 x 30 Bolts, Star Washers, M12, and
Flat Washers, M12 as shown in the diagram below.
Spool Cover Mounting Brackets
Countersunk Screws,
M5×12
Hub Wire Reel
Keyed Washer
Compression Spring
Flat Washer, small hole
Retaining Clip
Friction Washer
M12 x 30 Bolts;
Star Washers, M12;
Flat Washers, M12
3-lobe Screw
Art # A-11772
Figure 3-24 Installing Spool Cover
