TRANSMIG VAF4HD
INSTALLATION, OPERATION AND SETUP 3-22 Manual 0-5269

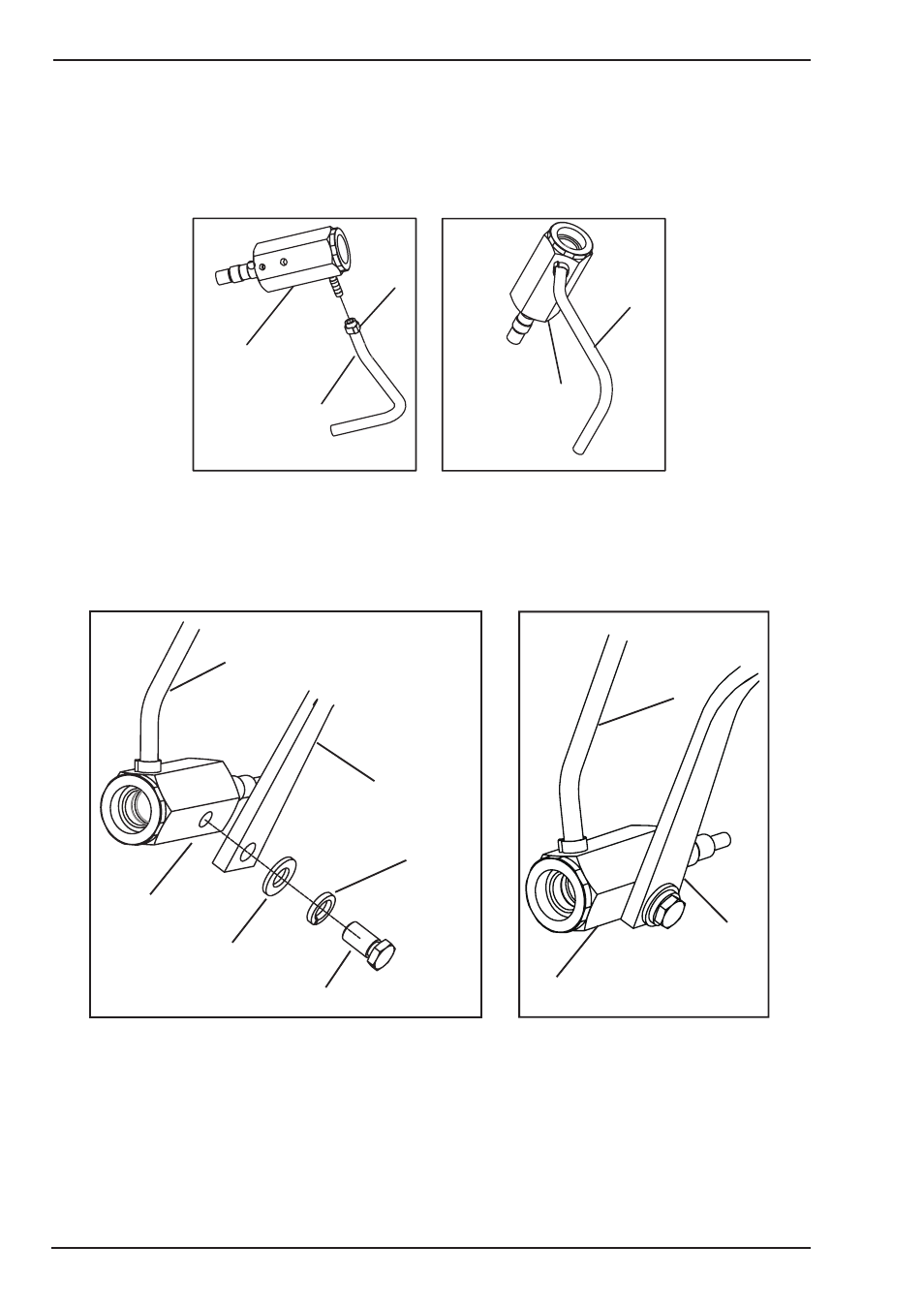

Connecting Gas Hose to Tweco No. 5 Adaptor
1. Place the hose clamp over gas hose.
2. Push the gas hose onto the Tweco No. 5 Torch Adaptor gas inlet.
3. Slide the hose clamp forward until it sits approximately 5mm from the end of the gas hose.
4. Tighten the hose clamp with a suitable crimping tool.
Torch Adaptor,
Tweco No. 5
Hose Clamp
Gas Hose
Torch Adaptor,
Tweco No. 5
Gas Hose
Art # A-11767
Figure 3-18 Connecting Gas Hose to Tweco No. 5 Adaptor
Connecting Welding Cable to Tweco No. 5 Adaptor
1. Attach the welding cable lug to Tweco No. 5 Torch Adaptor, using the M10 Flat Washer, M10 Spring Washer
and M10 × 18 Hex Bolt.
Welding Cable
Flat Washer, M10
Spring Washer, M10
Hex Bolt, M10 × 18
Art # A-11768
Welding Cable
Torch Adaptor,
Tweco No. 5
Torch Adaptor,
Tweco No. 5
Gas Hose
Gas Hose
Figure 3-19 Connecting Welding Cable to Tweco No. 5 Torch Adaptor
