2.0 CONTROL INSTALLATION
2.1 Enclosure Installation
Install the Enclosure in a convenient location that allows easy operator access to the front control
panel. Allow a minimum clearance of 6” (152mm) from the rear of the enclosure to allow access for
the external cable connections. To permanently mount the enclosure remove the four rubber feet
and mount the enclosure using blind-hole fasteners located on the bottom of the enclosure. Connect
the Power cable to a suitable source of AC power. Connect the Power supply remote cable to the
“POWER SUPPLY CONTROL” receptacle. Connect the optional operator pendant control cable to
the “REMOTE PENDANT” receptacle.

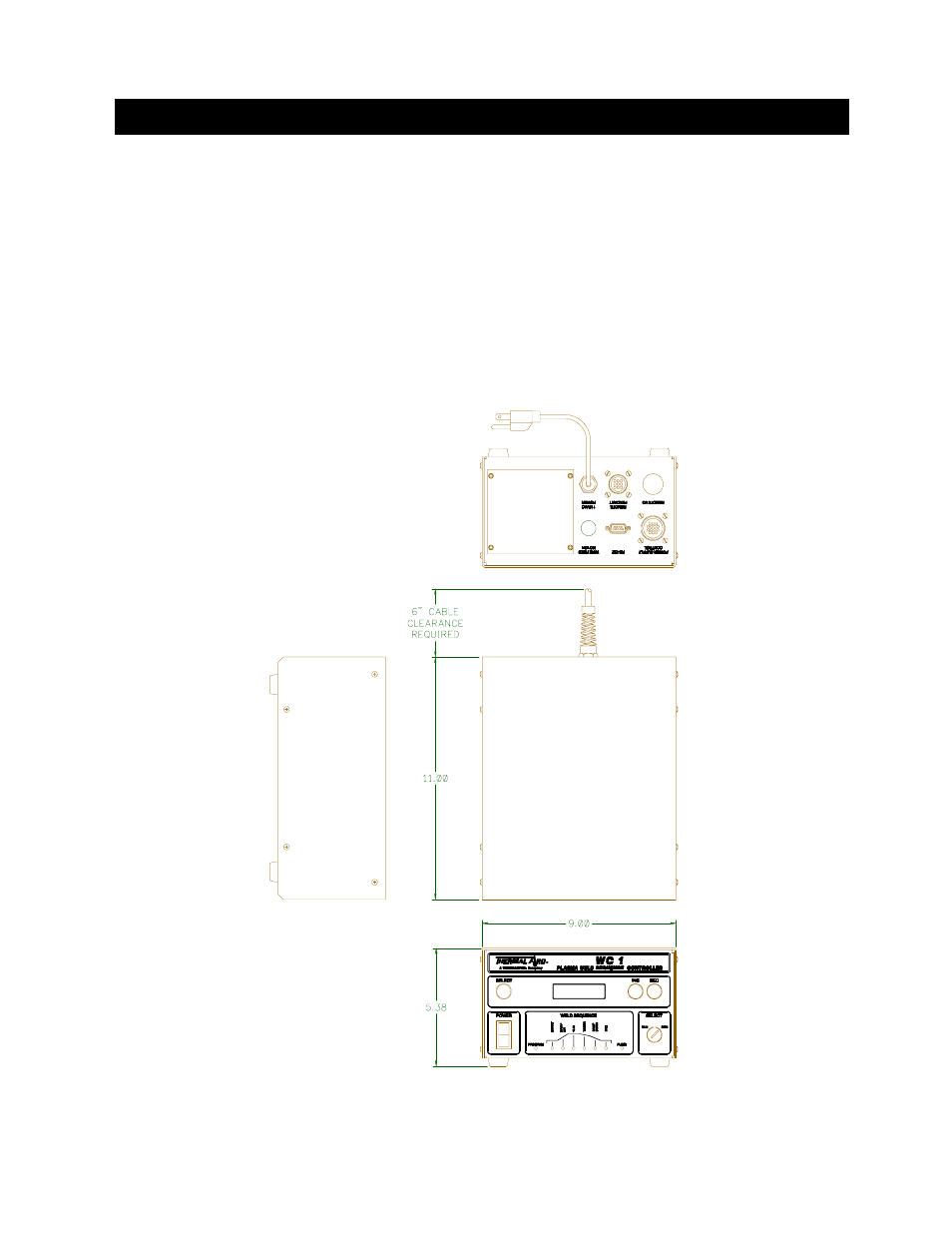

2.2 Standard Enclosure Dimensions
