Manual 0-5149 3-5 Installation, Operation And Setup
INSTALLATION THERMAL ARC 201 TS
WARNING
Before connecting the work clamp to the work and inserting the electrode in the electrode holder
make sure the Primary power supply is switched off.
CAUTION
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the
Welding Power Source.
3.06 STICK (MMA) SETUP
200A
Set Welding Current
as specified by the
Electrode Manufacturer.
Set Process Selection
Switch to STICK.
Set ARC Force
Positive Output
Terminal
(Dinse™ 50) Negative Output
Terminal
(Dinse™ 50)
Art#: A-09784

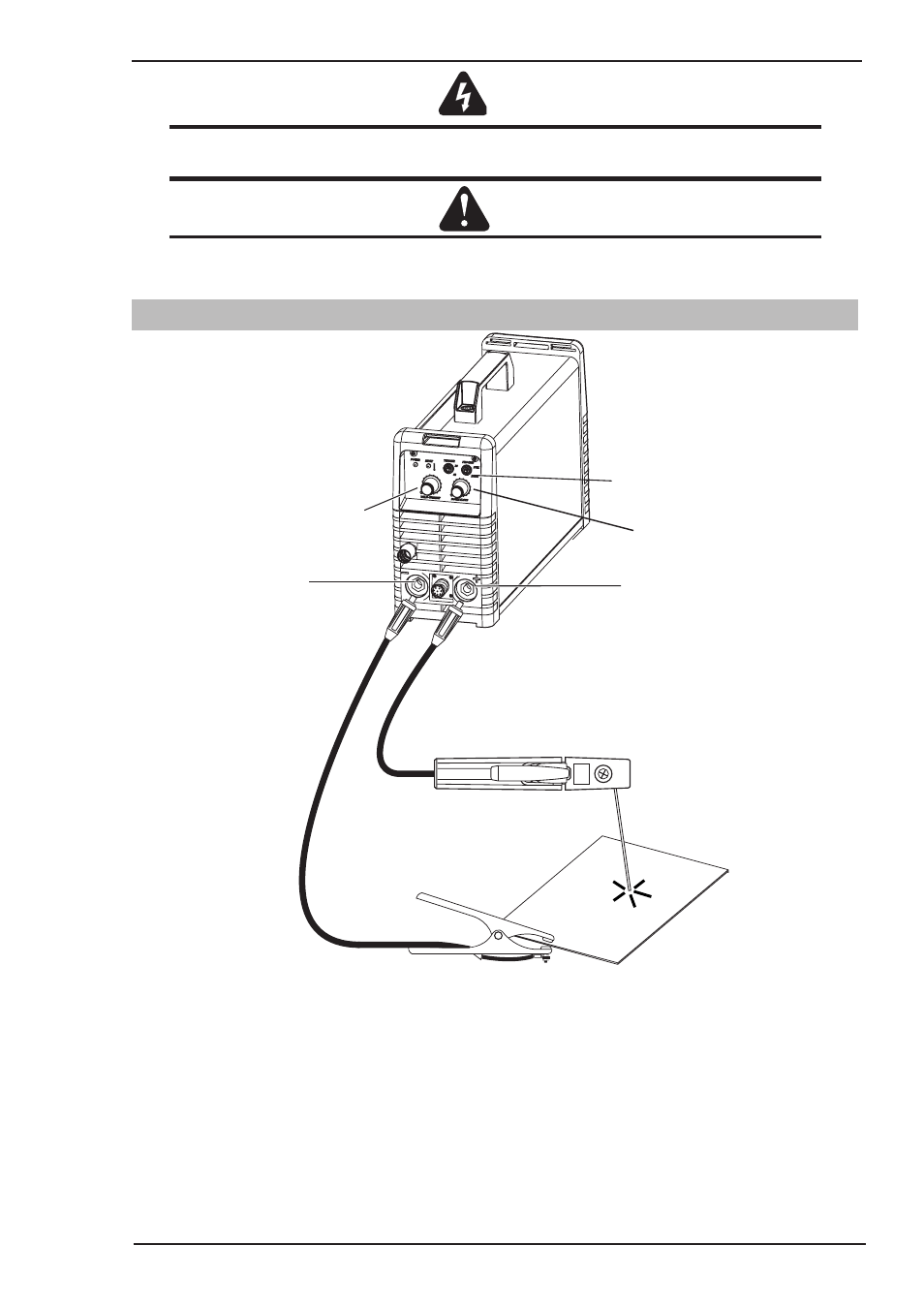

Figure 3-2 Setup for STICK (MMA) Welding
