Fabricator 141i

INSTALLATION, OPERATION AND SETUP

3-14

Manual 0-5145

3.11 Attaching the Fusion 140A MIG Gun

Fit the MIG Gun to the Power Source by pushing the MIG Gun connector into the MIG Gun Adapter and tightening

the Locking Screw to secure the MIG Gun in the MIG Gun Adapter.
Connect the 8 pin plug by aligning the keyway then inserting the 8 pin plug into the 8 pin socket and rotate threaded

collar fully clockwise to lock the plug into position.

Art #

A-10356_AB

MIG Gun Adaptor

MIG Gun Connector

Thumb Screw

8 pin socket

8 pin plug

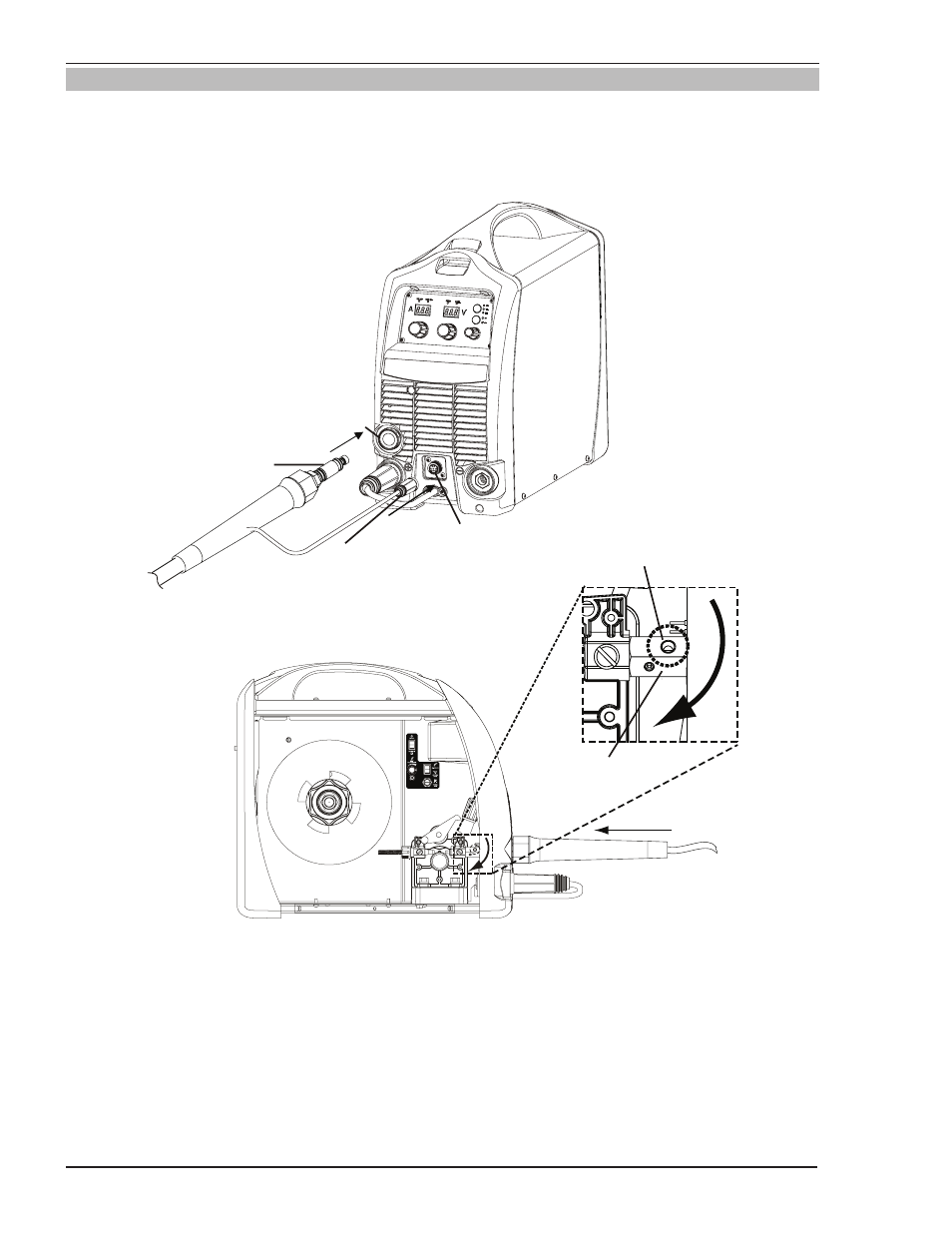

Figure 3-8: Attaching MIG Gun
