PARTS LISTS 6-6 Manual 0-2817
A-02802
2
4
5
6
3
1

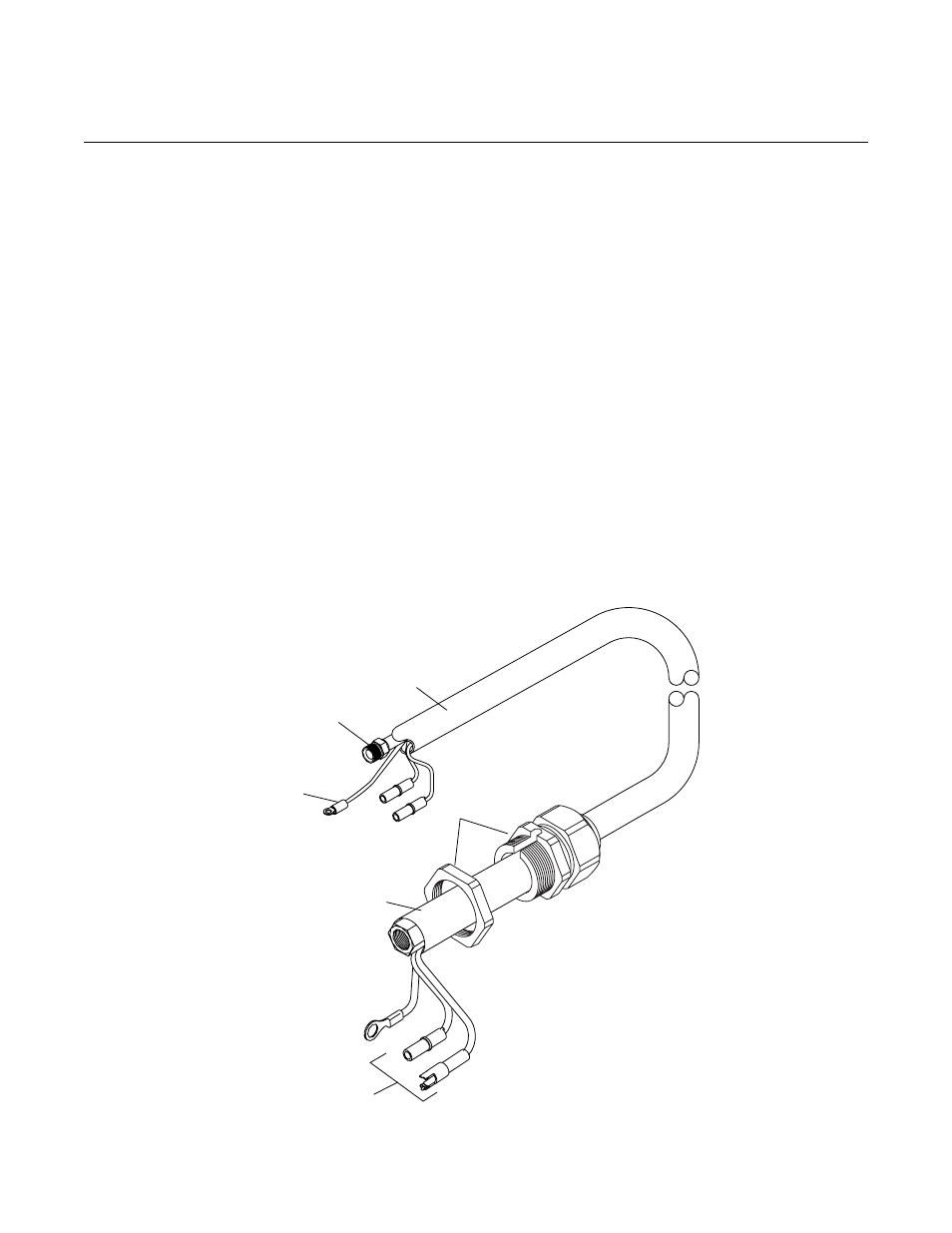

6.05 Replacement Torch Lead Parts
Item # Qty Description Catalog #
1 1 Nylon Sleeving
25 ft (7.6 m) Length 9-5515
50 ft (15.2 m) Length 9-5516
2 1 Through - hole Protector , Notched (Supplied with Nut) 9-7016
3 1 Boot 9-7017
4 1 Lead, Pilot Return, 14AWG
25 ft (7.6 m) Length 8-6460
50 ft (15.2 m) Length 8-6461
5 1 Lead, Negative, #4 Hose - #12 AWG
25 ft (7.6 m) Length 9-9032
50 ft (15.2 m) Length 9-9033
6 1 Assembly, Control Cable (Unshielded Leads)
25 ft (7.6 m) Length 8-6462
50 ft (15.2 m) Length 8-6463
PCM-62 Unshielded Torch Leads
