Manual 0-2731 23 INSTALLATION PROCEDURES
b. Remove the panel by lifting the panel up and
off the studs being careful not to damage the
wiring.
c. Locate the Wiring Harness with Connector at-
tached, 14-pin CPC type, in the parts supplied
with the Remote Arc Starter.
d. At the rear of the Power Supply Bulkhead Panel
place the connector into the spare hole on the
left side as viewed from the front.
e. Secure the connector to the Power Supply Bulk-
head Panel with two screws.
J11 on CD Start
PC Board
Remote Arc Starter
Wiring Harness
Assembly
Bulkhead
Panel
Ground Stud
A-02287

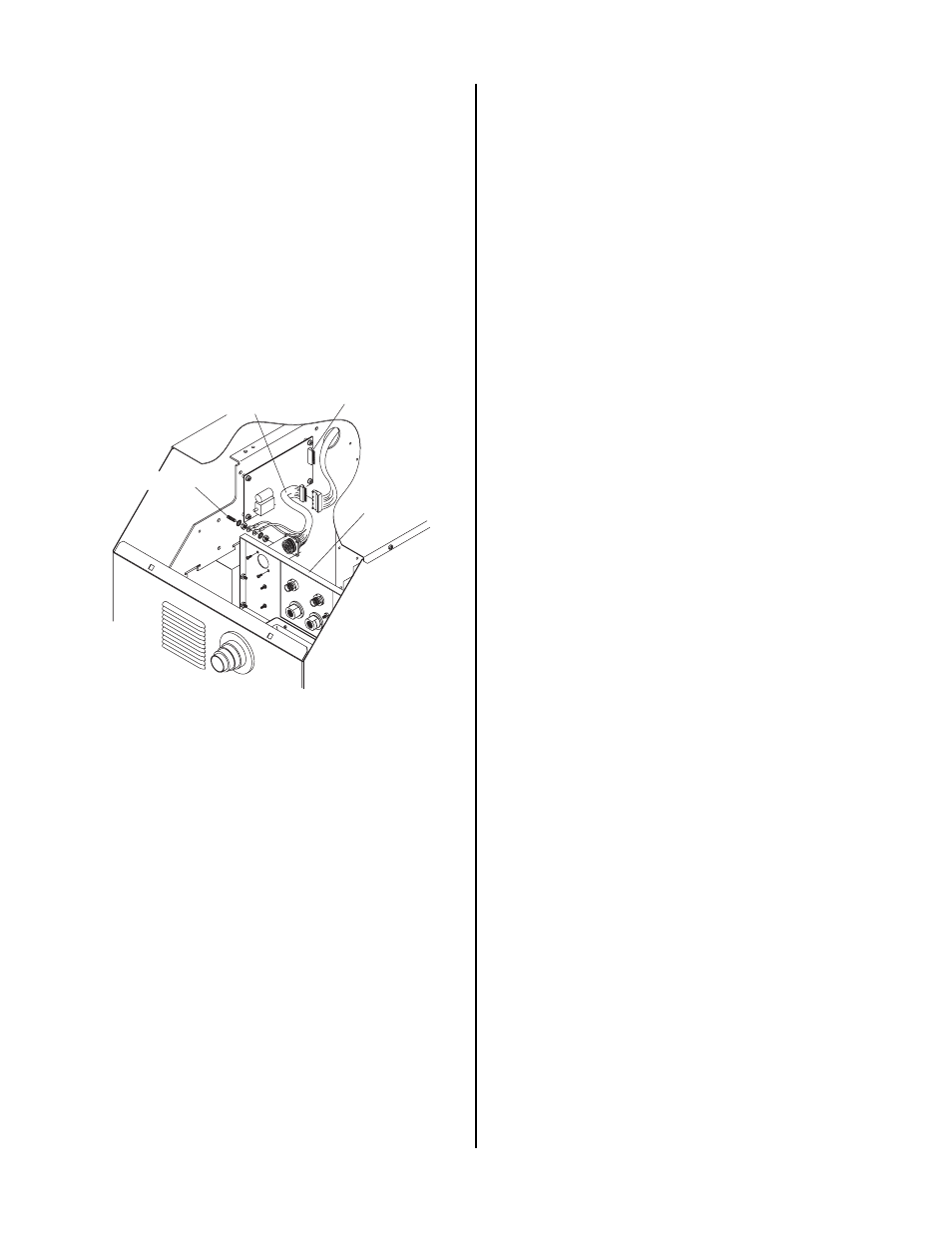

Figure 3-17 Installation Of Wiring Harness
f. Locate the ground stud and remove one nut
and star washer.
g. Place the two wires with ring terminals over
the ground stud and secure with the nut and
star washer.
h. Locate the CD Start PC Board mounted to the
Center Chassis on the Power Supply.
i. Disconnect the plug connected to J11 on the right
side of the PC Board.
j. Reconnect the J11 plug to the mating connector
on the Wiring Harness with Connector installed
above.
k. Re-install the Front/Access Panel.
l. Connect the end of the Control Cable to the 14-
pin CPC connector mounted to the Power Sup-
ply Bulkhead.
