Tweco 1000 Cutting Systems - Manual (Page 49)

Manual 0-2710 6-9 PARTS LISTS
Art # A -03019

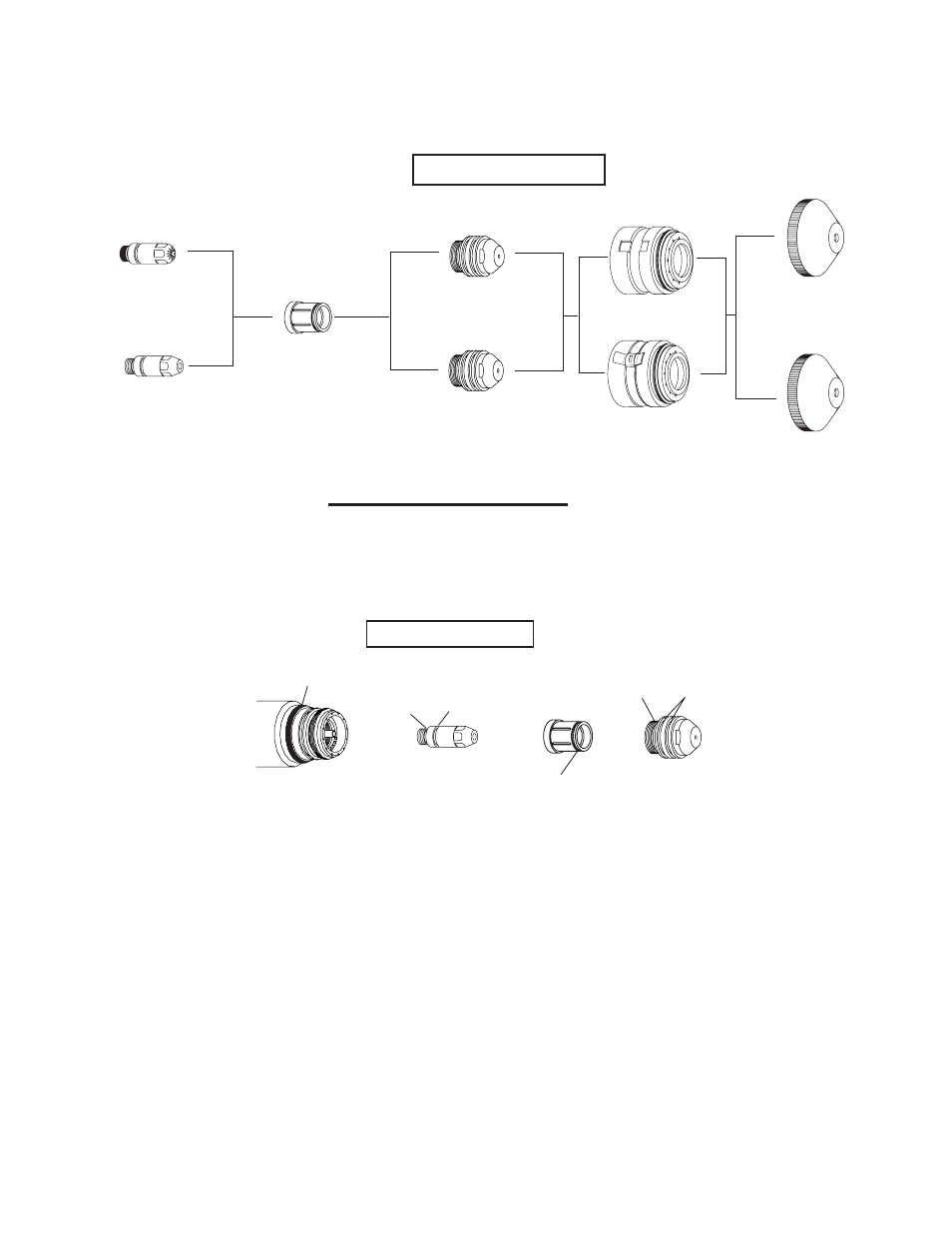

Electrodes (All)
Gas Distributors (All)
Tips (All)
Included with
Shield Cup Body
Small Large
Small Large
Torch Head
O-Ring Locations
Maximizer 300 With Merlin 1000
Electrodes
Using N2 or ArH2
(50 - 100 amps)
50 - 300 amps - N2
Catalog No. 20-1023
100 - 300 amps - ArH2
Catalog No. 20-1025
Tips
Gas
Distributor
End Caps
50 - 225 amps
Catalog No. 20-0008
O-Ring
Cat. No. 8-3484
0.055" Orifice, 100 amps
Catalog No. 20-1031
Standard Cutting
100 - 225 amps
Catalog No. 20-1004
0.043" Orifice, 50 amps
Catalog No. 20-1030
Standard Cutting
50 amps
Catalog No. 20-1003
Art # A -03116
Cutting Consumables Cutting Consumables
Shield Cup Body
Standard Cutting
Catalog No. 20-1002
Ohmic Clip
Shield Cup Body
Catalog No. 20-1427
NOTE:
If using a torch height control which of-
fers an ohmic sensing feature, select
catalog # 20-1427 shield cup body with
an ohmic clip tab.
