Tweco 1000 Cutting Systems - Manual (Page 48)

PARTS LISTS 6-8 Manual 0-2710

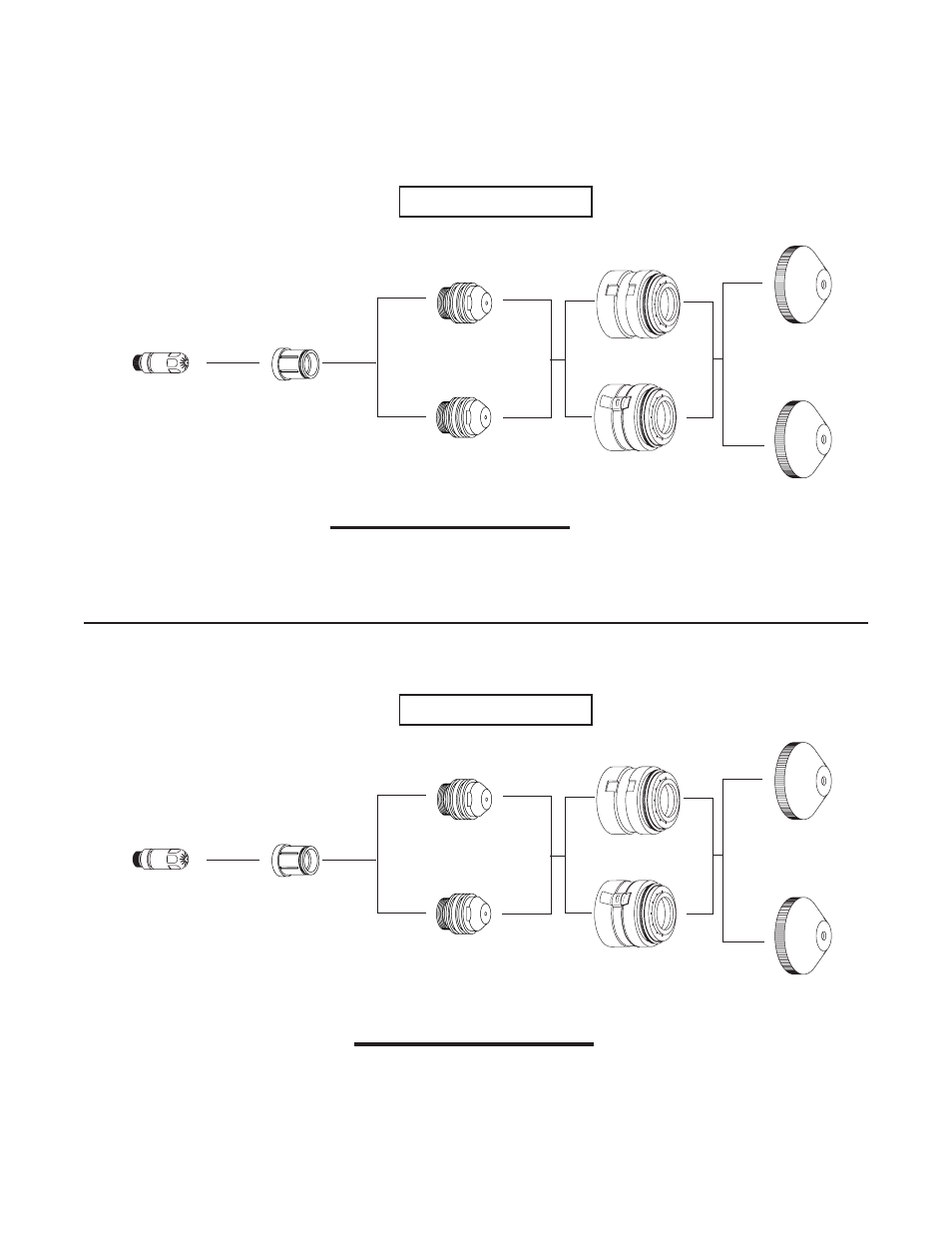

6.06 Torch Consumables
Maximizer 300 With Merlin 1000
Tips
Gas
Distributor
End Caps
Cutting Consumables
Electrode
50 - 225 amps
Catalog No. 20-1018
50 - 225 amps
Catalog No. 20-0008
O-Ring
Cat. No. 8-3484
0.055" Orifice, 100 amps
Catalog No. 20-1031
Standard Cutting
100 -225 amps
Catalog No. 20-1004
0.043" Orifice, 50 amps
Catalog No. 20-1030
Standard Cutting
50 amps
Catalog No. 20-1003
Using Air (50 - 100 amps)
Shield Cup Body
Art # A -03114
Cutting Consumables
Standard Cutting
Catalog No. 20-1002
Ohmic Clip
Shield Cup Body
Catalog No. 20-1427
Using O
2
(50 - 100 amps)
Tips
Gas
Distributor
End Caps
Electrode
50 - 100 amps
Catalog No. 20-1016
50 - 225 amps
Catalog No. 20-0008
O-Ring
Cat. No. 8-3484
0.055" Orifice, 100 amps
Catalog No. 20-1031
Standard Cutting
100 -225 amps
Catalog No. 20-1004
0.043" Orifice, 50 amps
Catalog No. 20-1030
Standard Cutting
50 amps
Catalog No. 20-1003
Art # A -03115
Cutting Consumables Cutting Consumables
Shield Cup Body
Standard Cutting
Catalog No. 20-1002
Ohmic Clip
Shield Cup Body
Catalog No. 20-1427
NOTE:
If using a torch height control which of-
fers an ohmic sensing feature, select
catalog # 20-1427 shield cup body with
an ohmic clip tab.
NOTE:
If using a torch height control which of-
fers an ohmic sensing feature, select
catalog # 20-1427 shield cup body with
an ohmic clip tab.
