CUTMASTER A40, A60

OPERATION Manual 0-5120

4T-2

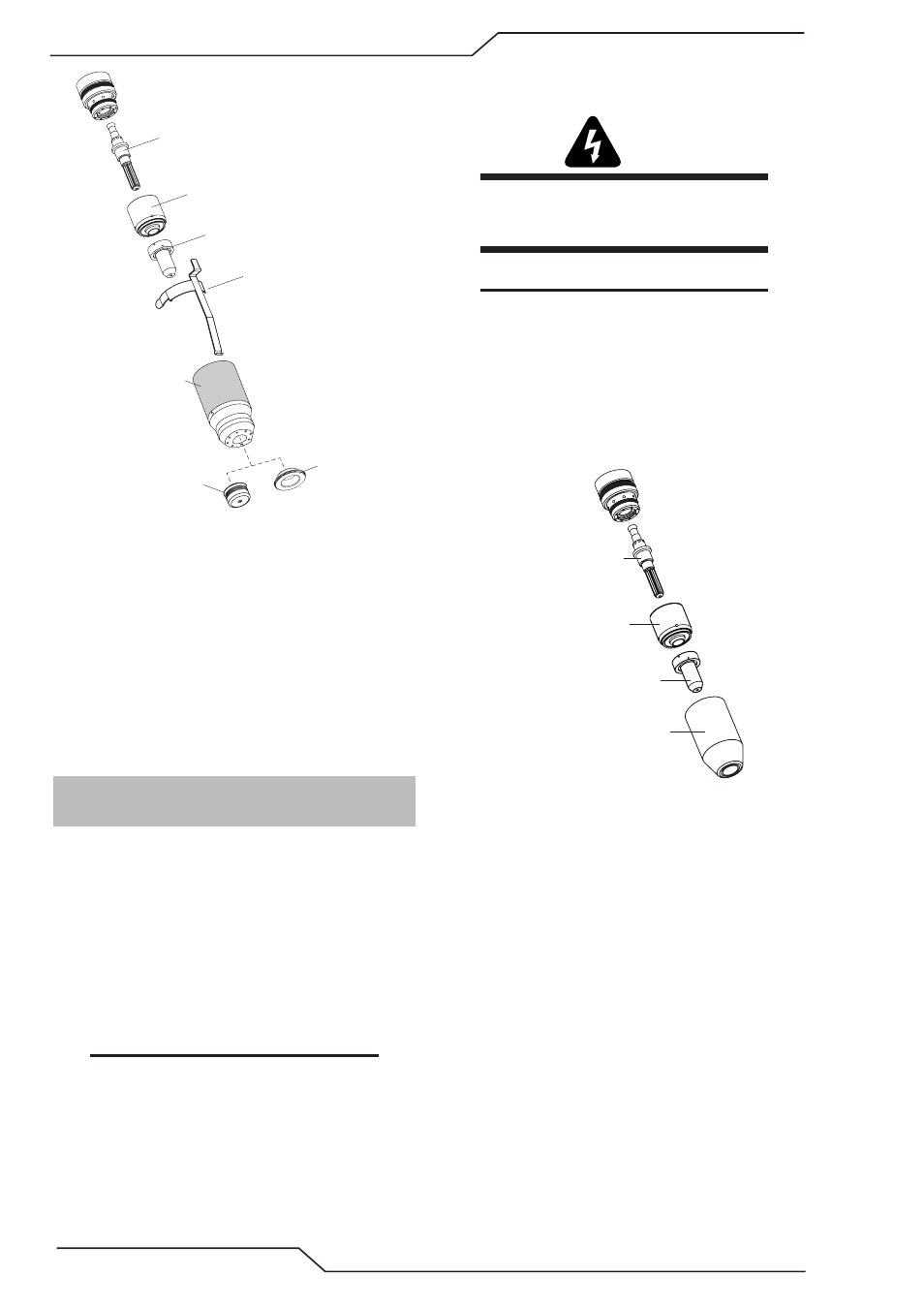

Art # A-04173_AB

Electrode

Torch Head

Shield Cup Body

Shield Cap

Deflector

Ohmic Clip

(If installed)

Tip

Start Cartridge

Automation Torch Parts

3. Install the replacement Electrode by pushing

it straight into the torch head until it clicks.

4. Install the starter cartridge and desired tip for

the operation into the torch head.

5. Hand tighten the shield cup assembly until

it is seated on the torch head. If resistance is

felt when installing the cup, check the threads

before proceeding

6. If used, attach the ohmic clip to the shield cup.

4T.02 Machine and Hand Torch Parts

Selection

Depending on the type of operation to be done deter-

mines the torch parts to be used.

Type of operation:

Drag cutting, standoff cutting or gouging

Torch parts:

Shield Cup, Cutting Tip, Electrode and Starter

Cartridge

NOTE

Refer to Section 4T.08 and following for ad-

ditional information on torch parts.

Change the torch parts for a different operation as

follows:

WARNING

Disconnect primary power at the source before

assembling or disassembling torch parts, or

torch and leads assemblies.

NOTE

The shield cup holds the tip and starter cartridge

in place. Position the torch with the shield cup

facing upward to keep these parts from falling

out when the cup is removed.

1. Unscrew and remove the shield cup assembly

from the torch head.

2. Remove the Electrode by pulling it straight out

of the Torch Head.

A-03510_AB
