Materials Required ----------------------------------------------------------------------------------- -----------------------------------------------------------------------------------
(2) #10 x 1” Wood Screws
(3) Wire Nuts
18 AWG LVT Solid Wire (Low Voltage Connections) •
•
• 14 AWG Solid Wire (Line Voltage Connections)
tekmar 009K (24 V (ac) transformer with 4” x 4” junction box)
Cable or Conduit Connectors •
•
•
Power Required -------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------
120 V (ac), 1-phase, 15 A service from circuit breaker
panel • Power disconnect (optional) •
Installation Location
When choosing the location for the control, consider the
following:
Keep dry. Avoid potential leakage onto the control.
RH 90% to 104°F (40°C).
Non-condensing environment.
Do not expose to operating temperatures beyond 32-
104°F (0-40°C)
Provide adequate ventilation.
Keep away from equipment, appliances or other
sources of electrical interference. •
•
•
•
•
Locate the control near pumps and/or zone valves if
possible.
Provide easy access for wiring, viewing and adjusting
the control.
Mount approximately 5 ft. (1.5 m) off the finished floor.
Install the electrical junction box to a wall using #10
x 1” wood screws. Wall anchors are recommended
when mounting to sheet rock wallboard or masonry. •
•
•
•
Rough-In Wiring
Line Voltage Wiring----------------------------------------------------------------------------------- -----------------------------------------------------------------------------------
The control operates a number of pumps through wiring
on the back of the control. The control must be mounted
to a 4” x 4” electrical junction box so that these electrical
connections are safely contained.
For ease of service, the circuit breaker or power disconnect
should be located in reasonably close proximity to the
equipment.
All line voltage wire connections are recommended to
be pulled inside a flexible or solid conduit. Always follow
proper wiring practices, building and electrical codes for
your jurisdiction.
Each cable must be pulled from the equipment to the
electrical junction box. It is recommended to label each
cable for easy identification. All line voltage wires should
be stripped to a length of 1/2” (13 mm).
Pull a three conductor 14 AWG cable for the following
equipment:
Circuit Breaker or Power Disconnect
Mix System Pump
Boiler System Pump
DHW Tank Pump (if applicable)
Variable Speed Injection Pump (if applicable) •
•
•
•
•

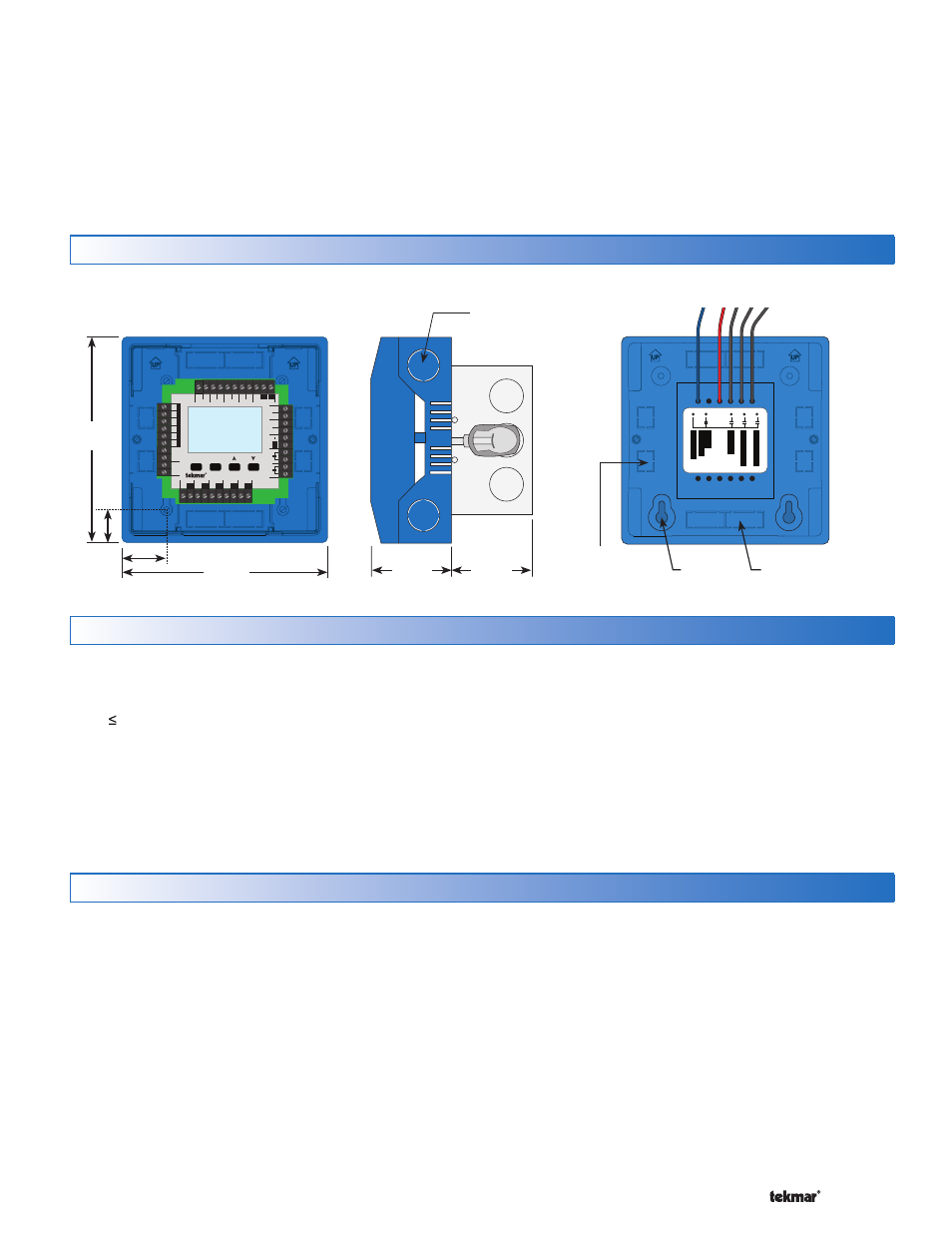

Physical Dimensions
Side View Cover Off Front View Back View
5–1/2”
(140 mm)
5–1/2”
(140 mm)
Menu
House Control 402
Item
+
Mix
Com
Boil
Out
DHW
Vlv C Vlv C Vlv C
Zone 3 Zone 1 Zone 2 Zone 4
Made in Canada
Vlv C
Com
Zone 1
H800
7B
Zone 2 Zone 3 Zone 4
tN2 tN2 tN2 tN2 tN2 tN2 tN2 tN2 C
Floating Action
Cls Opn
Sensors - No P
ow er
Call
Call
tN4
tN4
C
C
Mod dc/mA
Boil Exp.
Mix Exp.
Se
tpoint
DHW
Use at least 167°F (75°C) conductors R C
Input Power
Stage 2
Stage 1
1–1/8”
(30 mm)
7/8”
(22 mm)
CL
1/2” Knock-out (x 4)
Control designed to mount on 4” x 4”
electrical box (not included).
Electrical box shown comes with 009K
2–1/4”
(57 mm)
2–1/4”
(57 mm)
Boil Sy
stem Pump
Mix Sy
stem Pump
DHW Pump V ariable Speed Pump Pump P
ow
er L
7/8” x 1/2” (23 mm x 12 mm)
Knock-out (x 4)
1/2” x 5/8”
(12 mm x 16 mm)
Knock-out (x 4)
∅1/8”
(3 mm)
