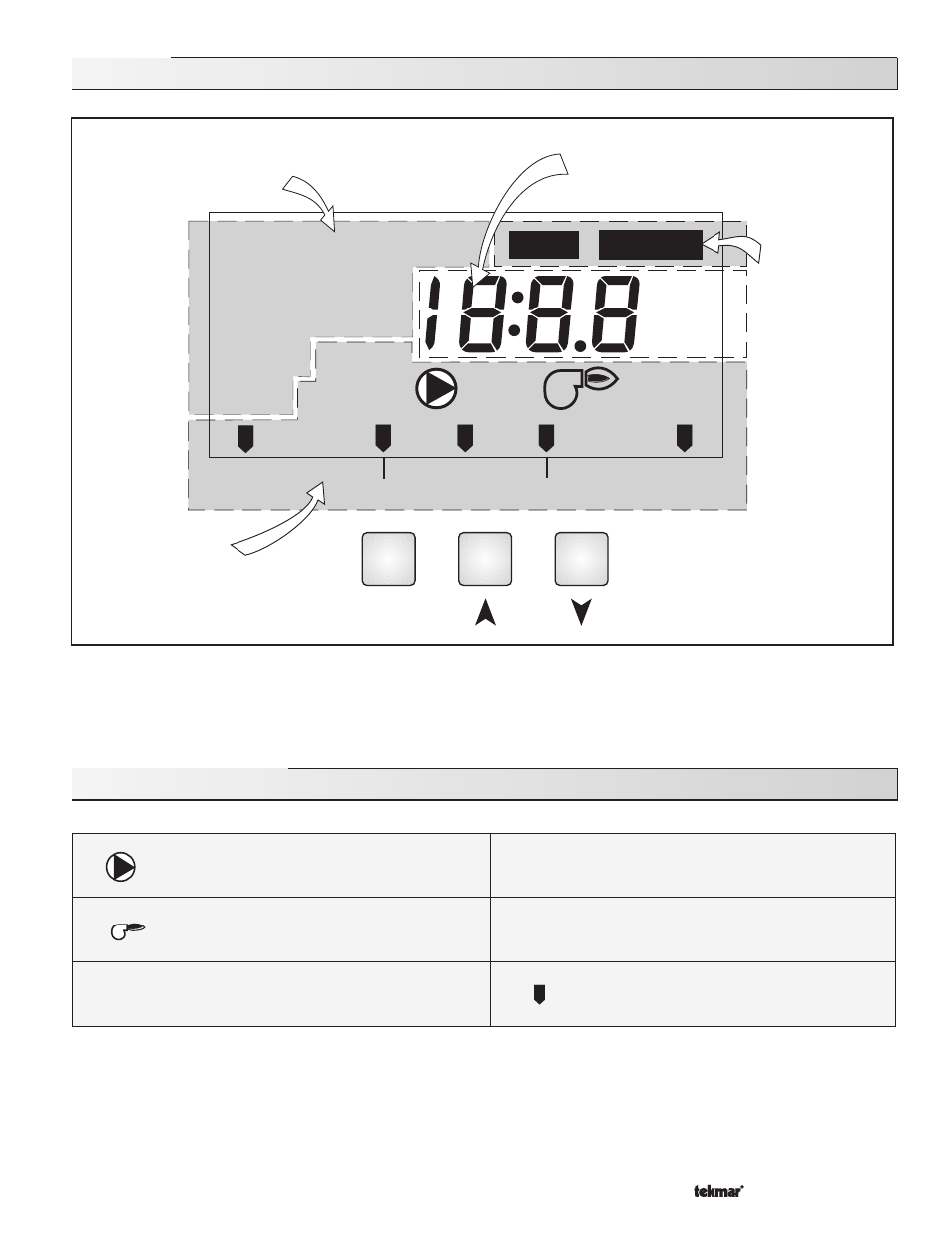

Display
Symbol Description
Setpoint Demand
Item
Number Field
Displays the current value
of the selected item
{
Buttons
Selects Menus, Items and
adjusts settings
Menu Field
Displays the
current menu
Status Field
Displays the current
status of the control’s
inputs, outputs and
operation
Item Field
Displays an
abbreviated name of
the selected item
Fire Delay
Setpoint Terminal Unit
TARGET
INDR
DSGN DIFF
BOIL
OUTDR
ROOM WWSD
°F
°C
1 2
MAX MIN
OCC UN
VIEW ADJUST
Boiler Demand
min
Pump
Displays when the boiler pump is in operation.
Burner
Displays when the stage 1 and / or stage 2 relay
is turned on.
°F, °C
°F, °C
Displays the unit of measure that all of the
temperatures are to be displayed in the control.
OCC
Occupied Schedule
Displays when the control is in occupied (Day)
mode.
UNOCC
Unoccupied Schedule
Displays when the control is in unoccupied
(Night) mode.
Pointer
Displays the control operation as indicated by
the text.
1 2
