tekmar 261 Boiler Control - Manual (Page 14)

Copyright © D 261 - 0
3/09
14 of 20

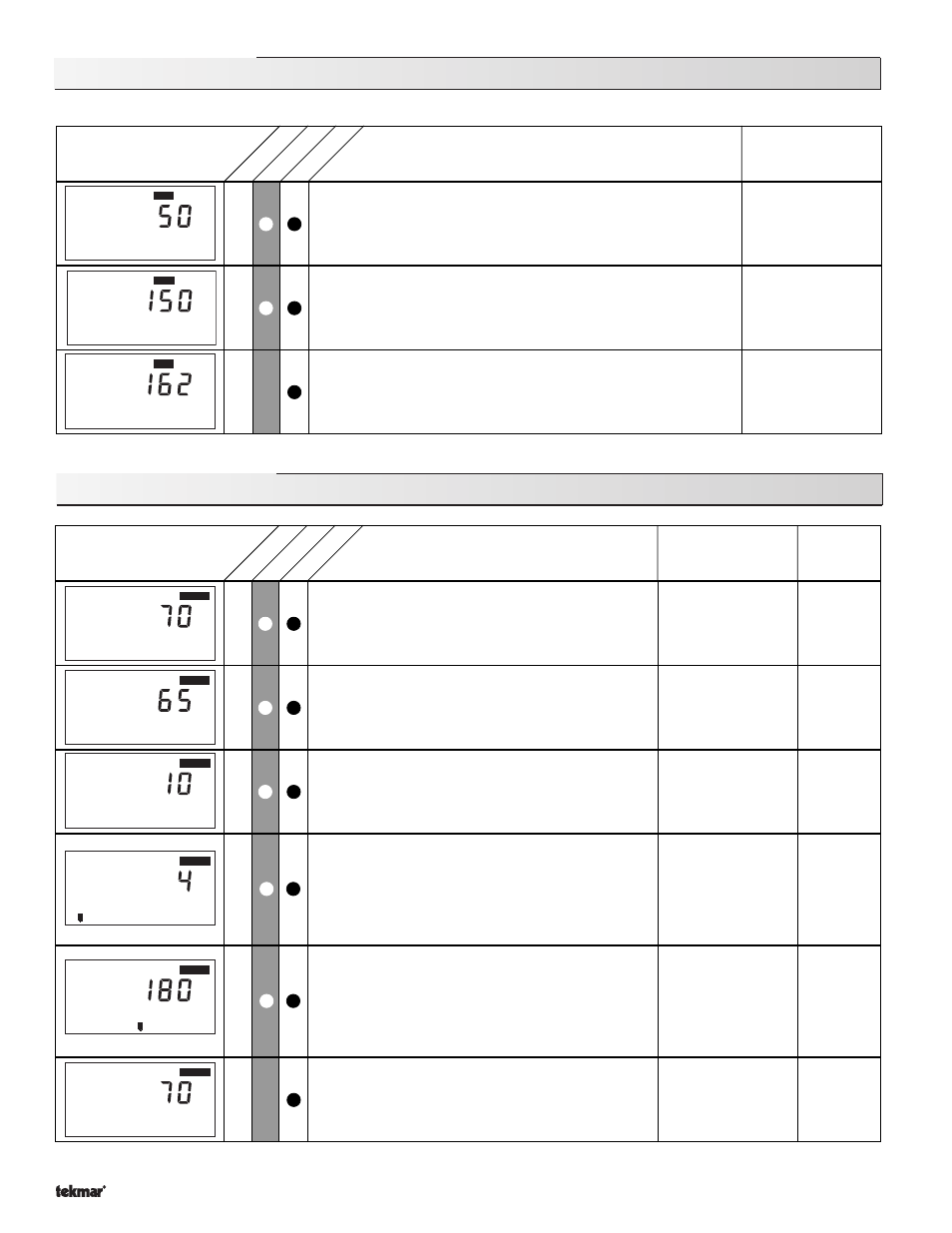

View Menu (1 of 1)
Adjust Menu (1 of 2)
Current outdoor air temperature as measured by the outdoor
sensor. This is also the default display for the control. -67 to 149 °F
(-55 to 65 °C)
Section Advanced Installer
Display Description Range
Current boiler supply water temperature as measured by the
boiler sensor. 14 to 266 °F
(-10 to 130 °C)
B1
B3
Target boiler supply is the temperature the control is currently
trying to maintain at the boiler sensor. ---, 14 to 266 °F
(---, -10 to 130 °C)
B1
B3
C
The design indoor air temperature used in the heat
loss calculation for the heating system. 35 to 100 °F
(2 to 38 °C)
B3
The type of terminal units that are being used in the
heating system.
B2
The desired room air temperature during an
unoccupied (Night) period. 35 to 100
°F
(2 to 38 °C) B2
The design outdoor air temperature used in the
heat loss calculation for the heating system. -60 to 32
°F
(-51 to 0
°C) B2
Section Advanced Installer
Display Description Range
Actual
Setting
The desired room air temperature during an
occupied (Day) period. 35 to 100 °F
(2 to 38 °C)
B2
Target setpoint temperature the control is currently
trying to maintain at the boiler sensor. OFF, 70 to 220 °F
(OFF, 21 to 104 °C) C
1 (High Mass Radi-
ant), 2 (Low Mass
Radiant), 3 (Fancoil),
4 (Fin-tube Convec-
tor), 5 (Radiator),
6 (Baseboard)
VIEW OUTDR
° F
OCC
VIEW
BOIL °F
OCC
VIEW
TARGET BOIL ° F
OCC
ROOM
° F
OCC
ADJUST
ROOM
° F
OCC UN
ADJUST
ADJUST DSGN OUTDR
° F
Setpoint
° F
ADJUST
ADJUST
INDR
BOIL ° F
Terminal Unit
ADJUST
