Step five — electrical connections to the control, Test the power supply, Test the outputs – tekmar 157 Difference Setpoint Control User Manual

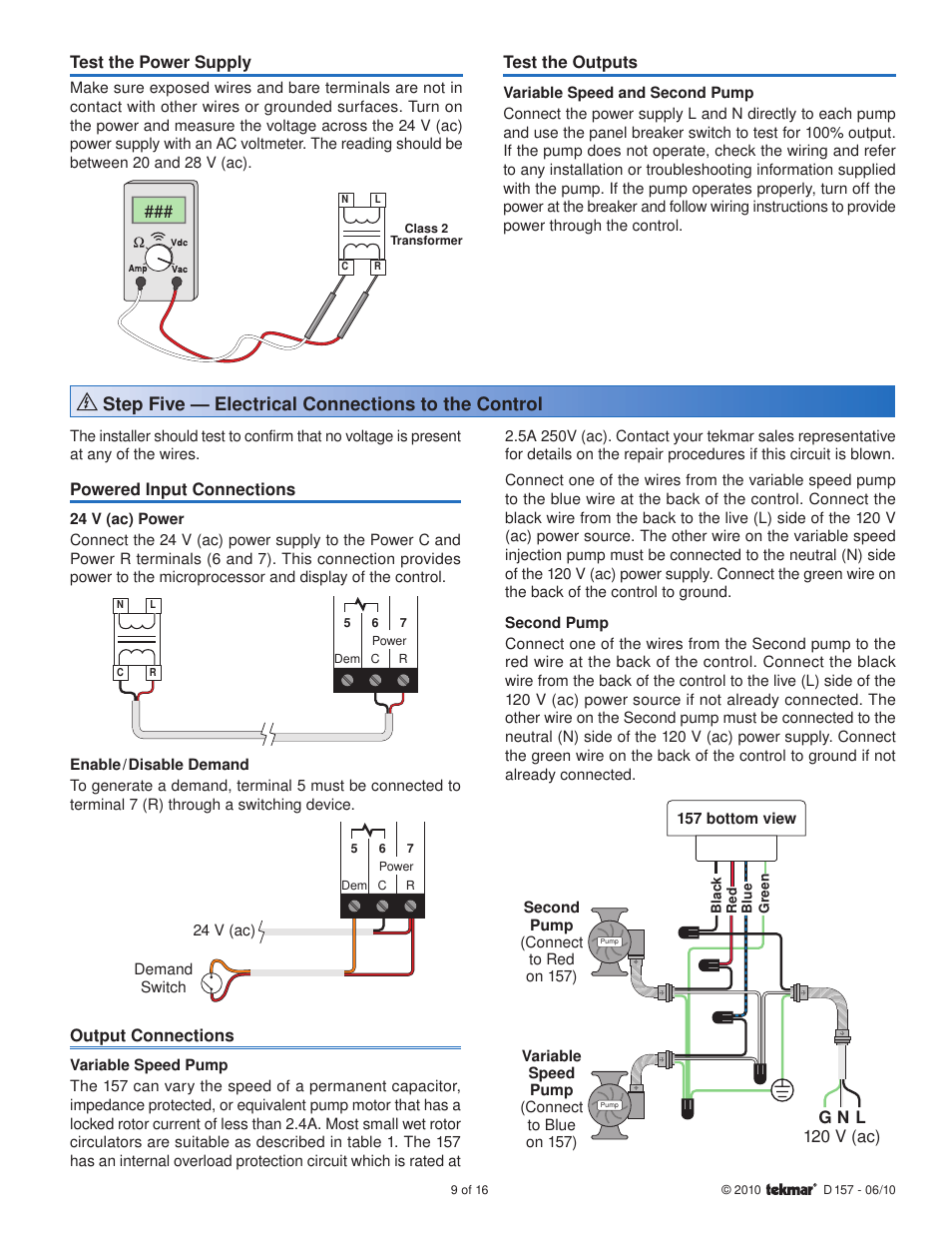

Page 9: Powered input connections, Output connections, 120 v (ac) l n
