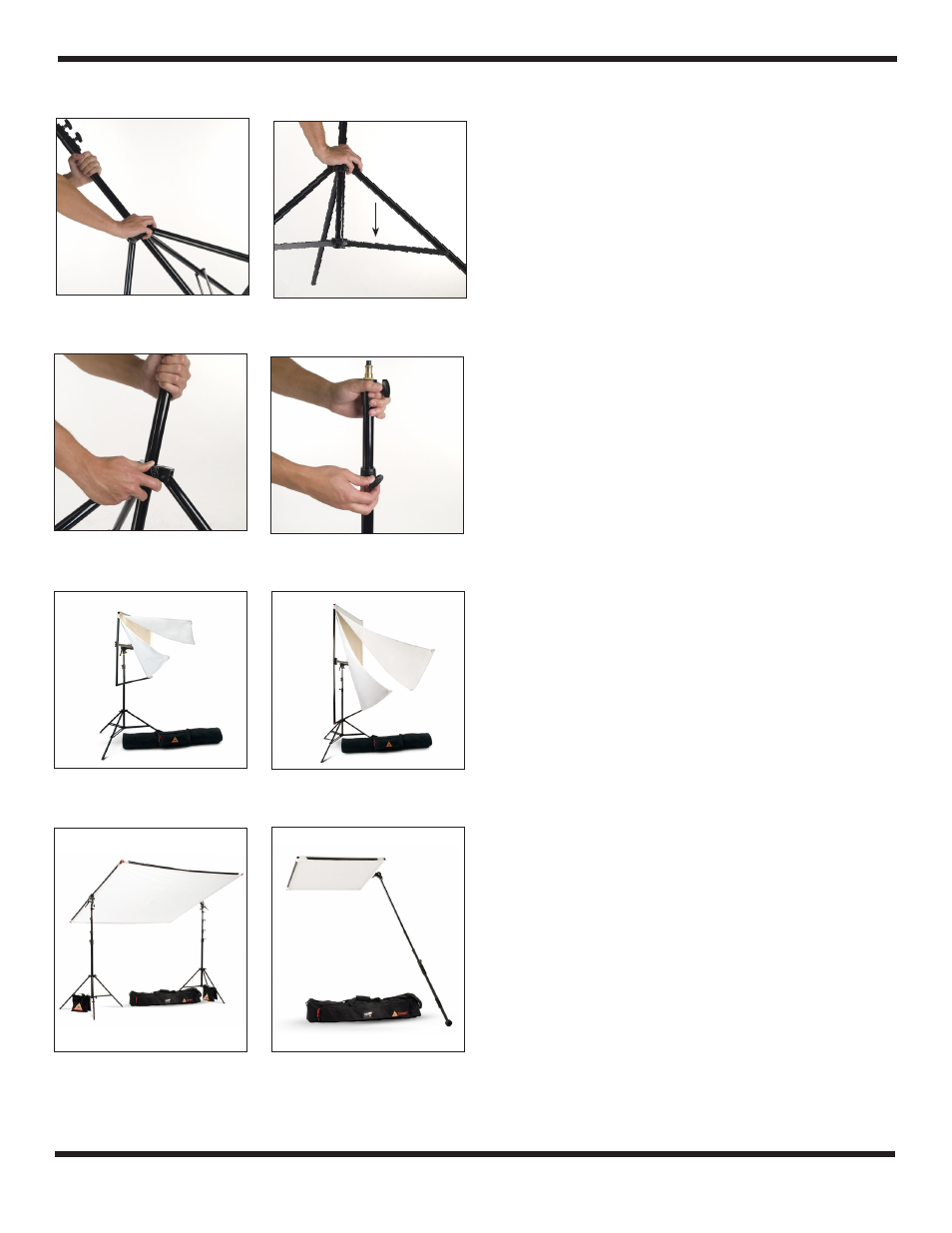

Figure 15
Figure 17
Figure 16
Figure 18
8. Loosen base collar knob at the top of the legs.
9. Spread legs apart.
10. Push legs down to widen footprint.
11. Keep pushing until the legs are completely open and the
flat steel struts are parallel to the floor.
12. Tighten base collar knob to lock legs into place.
13. Loosen knobs on risers to adjust height.
Available Kits Figures 15-18
LitePanel Kits are available for a variety of indoor and outdoor
applications. They can be used as large reflectors or to block the
light to create shade or negative fill. The diffusion fabric will soften
the sun or your artificial light source. Additional fabrics and
accessories are available for each of the kits.
A. The FirstStudio ® 39 x 39 inch LitePanel Kit
(LP-FS3939KIT) Figure 15
•
39 x 39 inch PVC Frame
•
White diffusion fabric
•
Soft gold/white fabric
•
Crossbar
•
7’ LiteStand
•
LitePanel Hardware
B. The 39 x 72 inch LitePanel Kit (LP-PANELKIT1)
Figure 16
•
39 x 72 inch aluminum frame
•
White diffusion fabric
•
Soft gold/white fabric
•
Crossbar
•
Medium 8’ LiteStand
•
LitePanel Hardware
C. The 77 x 77 inch LitePanel Kit (LP-PANELKIT77)
Figure 17 Ideal for outdoor overhead diffusion
•
77 x 77 aluminum frame
•
White diffusion fabric
•
Crossbar
•
(2) Heavy duty 12’ LiteStands
•
(2) LitePanel hardware
•
(2) RockSteady ® weight bags
•
(2) LitePanel hardware clamps
D. The LiteReach ® Plus LitePanel Kit (LP-3939LRKIT)
Convert harsh direct sunlight into soft diffused light for your
video or photo location shots. Utilizing the extra-long LiteReach
Plus to position a LitePanel diffuser just where you need it. The
LiteReach Plus is designed with balance ball technology so it can
be braced on the ground taking pressure off your back. The same
balance ball provides a comfortable resting place against the waist
for quick positioning on the go. The new LitePanel Hardware
facilitates rapid set-up using the quick release system. Figure 18
To view more information on LitePanel kits go to:
www.http://photoflex.com/products/category/litepanel-kits
