9.
Expanding the graph

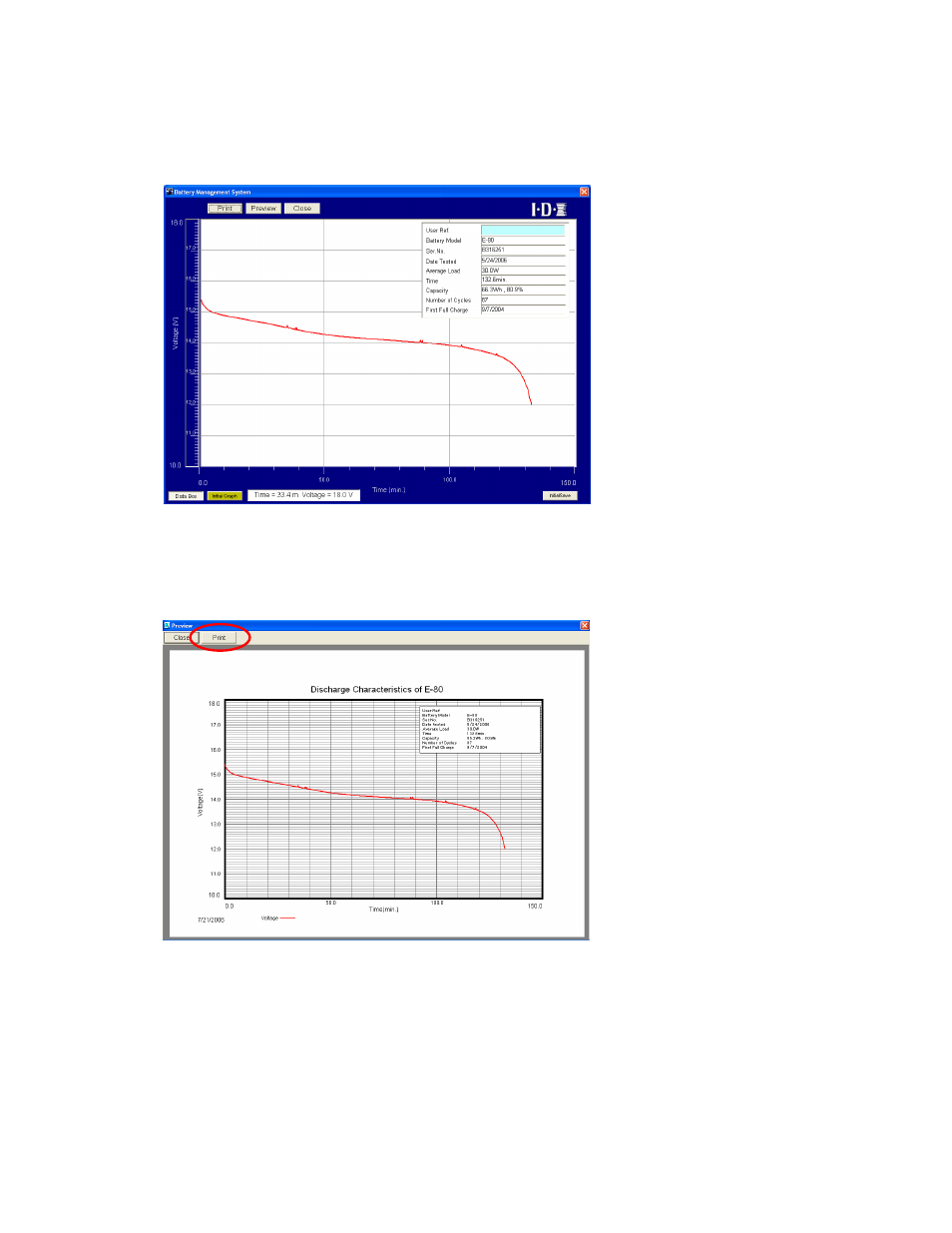

Double-clicking anywhere on the graph image will expand the size of the graph currently displayed. You
can click Preview to check a preview image of the printed graph before it is actually printed.
Time(min) axis:
Thick lines: 50-minute graduations; thin lines: 10-minute graduations
Voltage(V) axis:
Thick lines: 1-volt graduations; thin lines: 0.1-volt graduations
Clicking Print in the above screen will print the preview image.
