User Guide for Battery Management System Ver4.2
Page 40/75 IDX Company, Ltd.

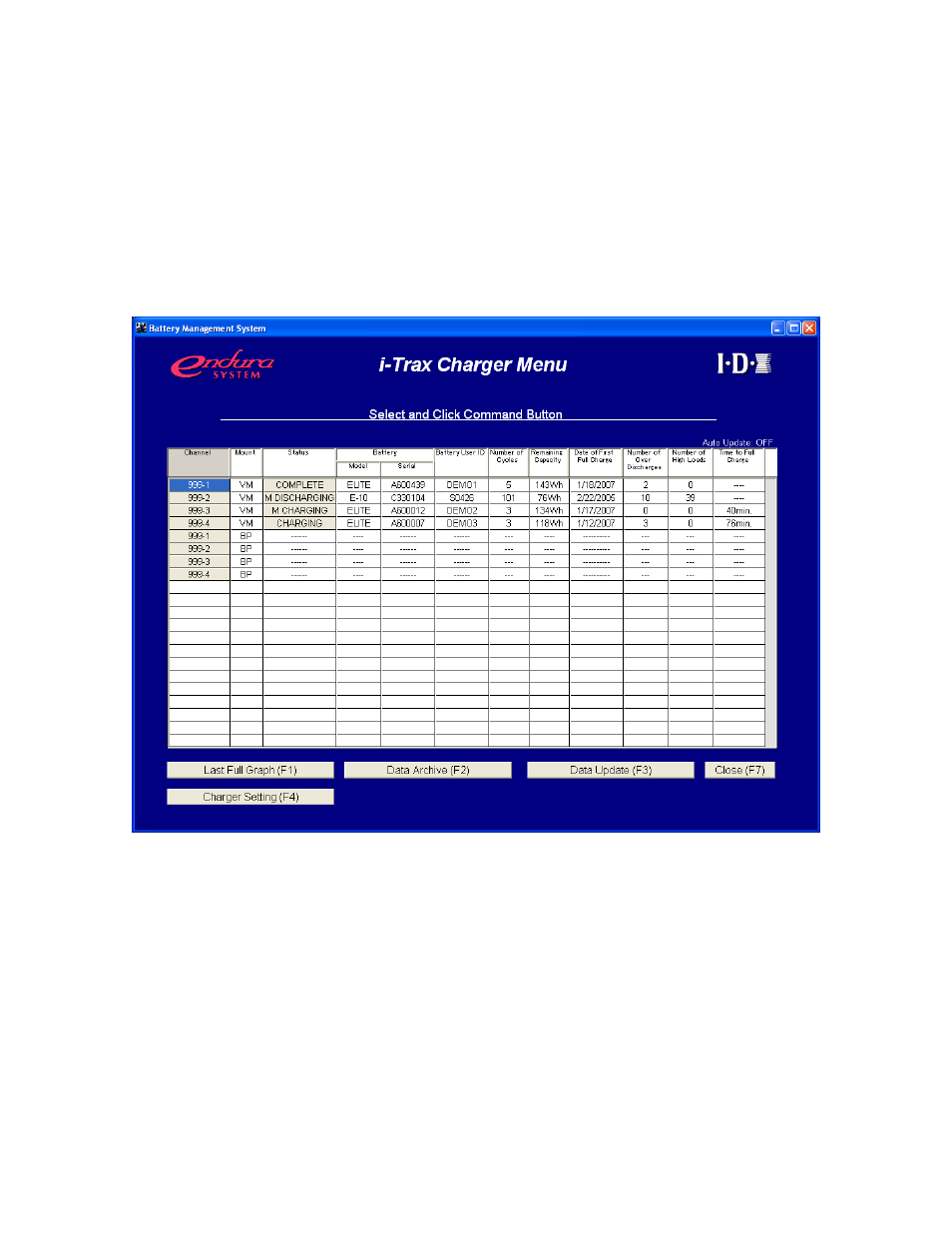

CHAPTER 8. Items and Functions Available on the
i-Trax Charger Menu Screen
This screen displays status of each battery connected to an i-Trax Charger.
The items displayed in this screen are explained below.
 Channel
Display charge channel names. By double clicking the channel name, battery data read from i-Trax
charger is displayed.
 Mount
Identifies if batteries are connected to the V-Mount (VM) or BP connection charge channel.
