19 E-flite Taylorcraft ARF Assembly Manual
Tail Installation
Required Parts
Fin/rudder Stabilizer/elevator
Fuselage Assembled wing
#4 washer (2)
4-40 x 1-inch socket head bolt (2)
Required Tools and Adhesives
30-minute epoxy Mixing stick
Square Epoxy brush
Hobby knife w/#11 blade Felt-tipped pen
Hex wrench: 3/32-inch

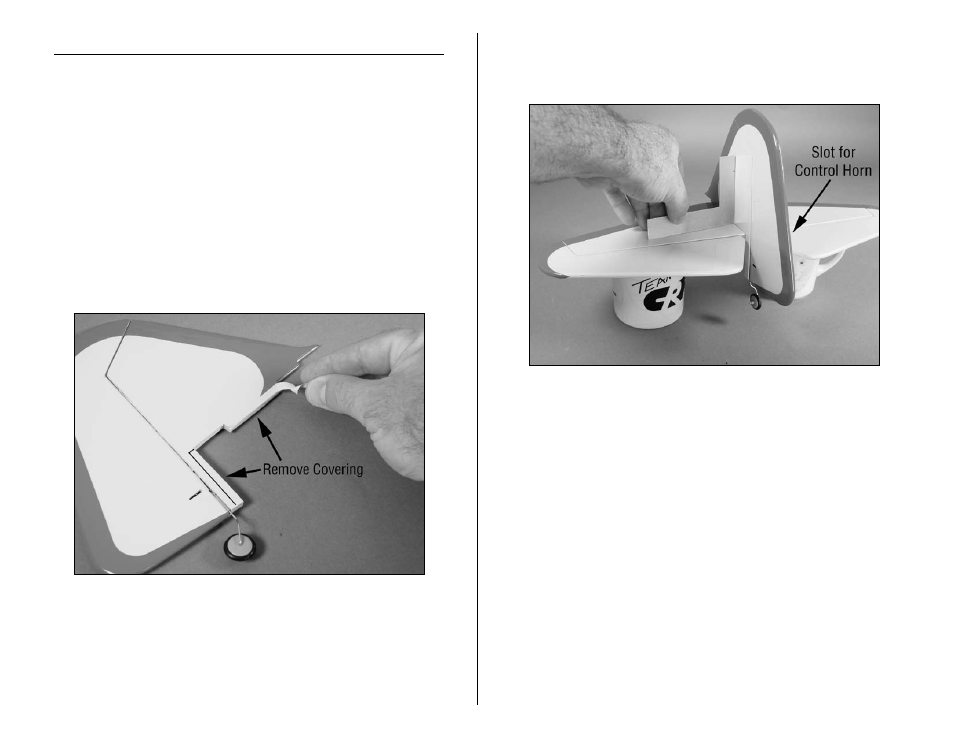

 1. Carefully remove the covering slightly below the edge
of the fin and on the lower tailpost.
Note: You will want the slot for the elevator to be on the
right side of the vertical fin and rudder during the next
step.
 2. Use 30-minute epoxy to glue the tab from the fin into
the stabilizer. Check that the fin and stabilizer are square
while the epoxy cures.
Hint: Rest the stabilizer on two coffee cups. This will
suspend the assembly and keep the tail wheel from
causing any issues with keeping things square.
