E-flite Taylorcraft 450 ARF - Manual (Page 16)

16 E-flite Taylorcraft ARF Assembly Manual

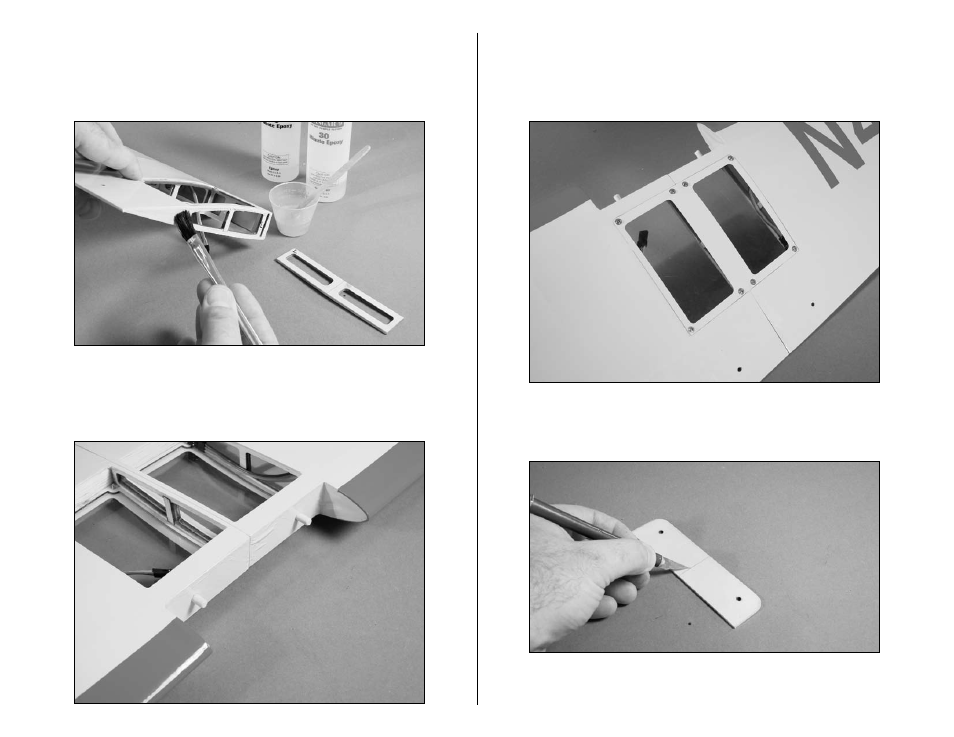

 8. Finally, apply epoxy to the root ribs that will come in
contact with each other. Slide the panels together and use
low-tack tape to hold the two panels together until the
epoxy has fully cured.
 9. Use medium CA to glue the wing dowels in position.
They will slide in the wing until they are flush with the
back side of the wing center section.
 10. Attach the skylight to the wing using eight 2mm x
6mm sheet metal screws using a #1 Phillips screwdriver.
Leave the screws slightly loose until they have all been
started so you can adjust the position of the window.
 11. Lightly score the wing bolt brace so it can bend to
conform to the dihedral in the wing when installed.
