13 E-flite Taylorcraft ARF Assembly Manual

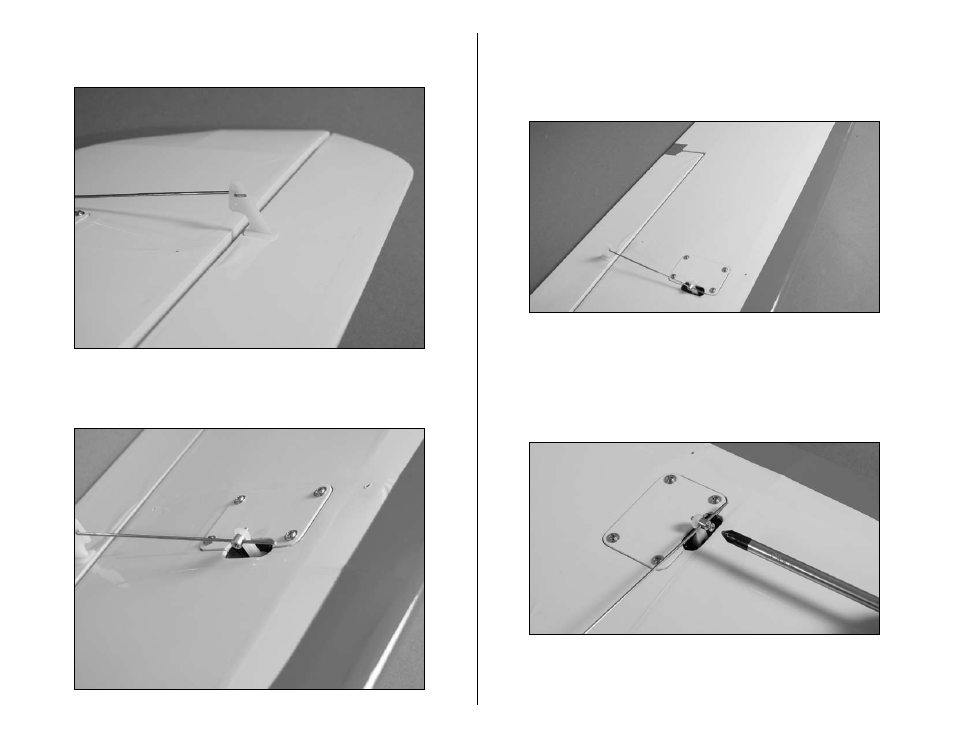

  18. Attach the 3 3 /
4
-inch (95mm) aileron pushrod to the
middle hole of the control horn.
  19. Slide the opposite end of the pushrod through the
connector on the servo arm.
  20. Use a piece of low-tack tape to hold the aileron in
neutral. You can leave the tape in place until you are
ready to set the control throws to help prevent moving the
aileron and possibly stripping the servo gears.
  21. With the radio on, check the operation of the aileron
servo again. Use a 2mmx 4mm machine screw and
a #1 Phillips screwdriver to secure the pushrod to the
connector. Use side cutters to remove any excess wire
extending beyond the connector.
 22. Repeat Steps 1 though 21 for the remaining aileron
servo and linkage.
