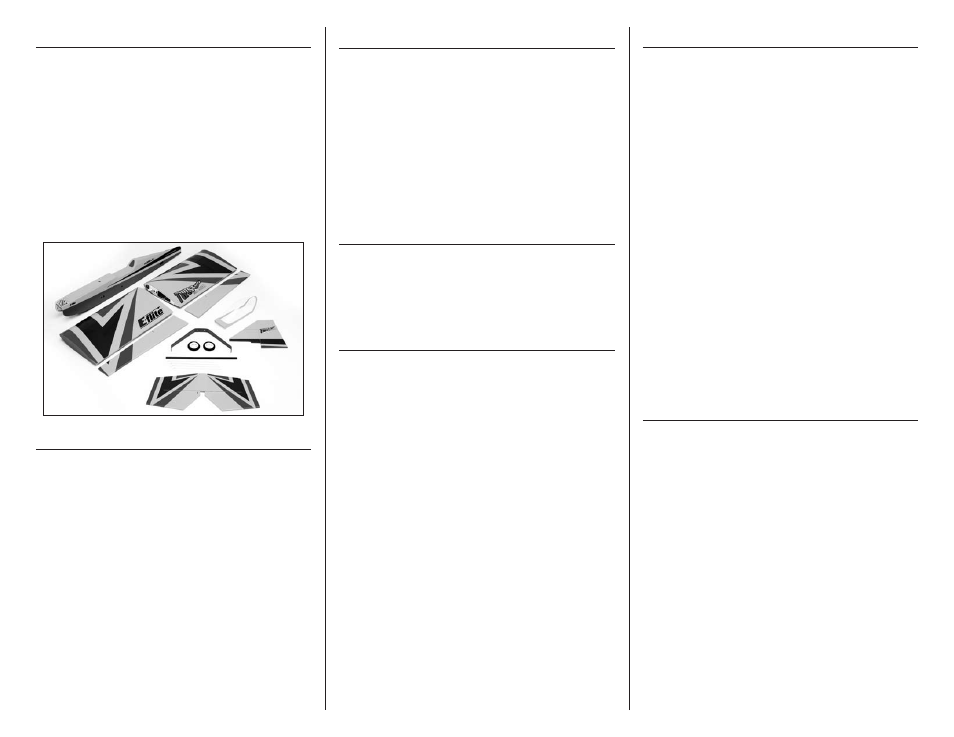

Contents of Kit/parts Layout
Replacement parts:
EFL300501
Fuselage
EFL300502 Wing Set
EFL300503 Tail Set
EFL300504 Landing Gear
EFL300505 Canopy
EFL300506 Wing Tube
EFL300507 Hardware Package
EFL300508 Pushrod Set
EFL300509 Hatch Set
EFL300510 Decal Set
Covering Colors
Cub Yellow HANU884
True Red HANU866
Deep Blue HANU873
Transparent Red HANU950
Recommended Radio Equipment
You will need a minimum 4-channel transmitter,
receiver and four servos.
Complete Radio System
DX6i
Or purchase Separately
SPMAR6115 AR6115 6CH DSMX ®
Microlite Receiver
EFLRDS76 DS76 Digital Servo (4)
EFLREX9L 9-inch (228mm)
Servo Extension (2)
high-power Setup (Recommended)
EFLM1505 Park 480
EFLA1030 30-Amp Pro Brushless ESC
EFLB22003S30 2200mAh 3S 11.1V 30C Li-Po,
12AWG with EC3 ™ connector
APC12060E 12 x 6E Electric Propeller
Sport-power Setup (Optional)
EFLM1400 Park 450
EFLA1030 30-Amp Pro Brushless ESC
EFLB22003S30 2200mAh 3S 11.1V 30C Li-Po,
12AWG with EC3 ™ connector
APC12060E 12 x 6E Electric Propeller
Required Tools and Adhesives
Tools & Equipment
Felt-tipped pen Hex wrench: 1.5mm, 2.5mm
Light machine oil Medium CA
Pin vise Ruler
Side cutters Square
T-pins String or dental floss
Thin CA Toothpicks
Nut driver: 5.5mm Needle nose pliers
Straight edge Denatured alcohol
Paper towels
Drill bit: 1/16 inch (1.5mm), 5/64 inch (2mm)
Hobby knife with #11 blade
Medium grit sandpaper
Phillips screwdriver: #00, #1
Optional Tools & Equipment
Balancing stand (optional)
Adhesives
5-minute epoxy PAAPT37
Medium CA PAAPT02
Thin CA PAAPT08
Threadlock PAAPT42
Canopy Glue PAAPT56
Optional Accessories
EFLA110 Power Meter
EFLC3025 Celectra ™ 80W AC/DC Multi-
Chemistry Battery Charger
EFLAEC312 Charge Lead with 12 inch Wire
and Jacks, 16AWG
PKZ5105 Painted Pilot: Extra 300
EFL2605 Wheel pants (from Edge 540 BP)
