Rudder and Elevator Installation
Required parts
Fuselage assembly Rudder
Elevators CA hinge (6)
Elevator joiner wire Tail wheel assembly
Required Tools and Adhesives
Thin CA T-pins
Pin vise Drill bit: 1/16-inch (1.5mm)
5-minute epoxy Hobby knife with #11 blade
Toothpicks Light machine oil

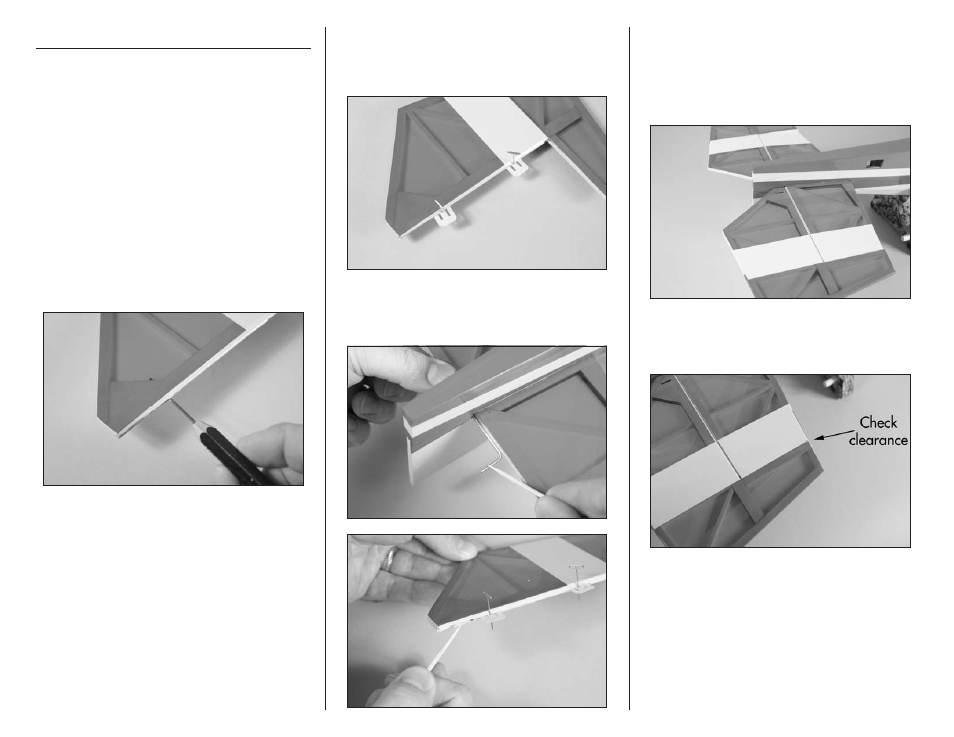

 1. Use a pin vise and 1/16-inch (1.5mm) drill bit
to drill a hole in the center of each hinge slot. This
creates a tunnel for the CA to wick into, creating
a better bond between the hinge and surrounding
wood. Prepare all of the hinge slots for the vertical
fin, rudder, horizontal stabilizer, and elevators.
 2. Place a T-pin in the center of four CA hinges.
Insert the hinges into the elevator as shown. The
T-pin will rest on the edge of the bevel of the
control surface. Prepare both elevators at this time.
 3. Mix a small amount of 5-minute epoxy and
apply it to the joiner wire and into the hole and slot
in the elevator using a toothpick.
 4. Place both elevators into position once the epoxy
has been applied. Use a paper towel and rubbing
alcohol to remove any excess epoxy before it
begins to cure. Make sure to check the alignment
of the elevators to make sure they are in alignment
while the epoxy cures.
 5. Remove the T-pins from the hinges. Position
the elevators so they move freely without the
counterbalances hitting the ends of the stabilizer.
