Park 480 Outrunner Motor Installation

Required Parts

• Fuselage

• Firewall stick mount (included)

• 4-40 x 1/2" (12mm) socket head screw (4)

• Outrunner stick mount (included)

• Aluminum spacers, 4mm long (4)

• 3mm x 8mm Phillips head screws (4)

(to mount motor to Outrunner stick mount)

• 2mm x 8mm sheet metal screw (3) (to secure mounts)

• Park 480-size Brushless Outrunner Motor

Required Tools and Adhesives

• Hex wrench: 3/32"

• Phillips screwdriver (small)

Skip to page 36 for setup of a 6-pole motor

installation using a gearbox.

Note: This section covers the installation of our

Park 480 Outrunner or equivalent size motor.



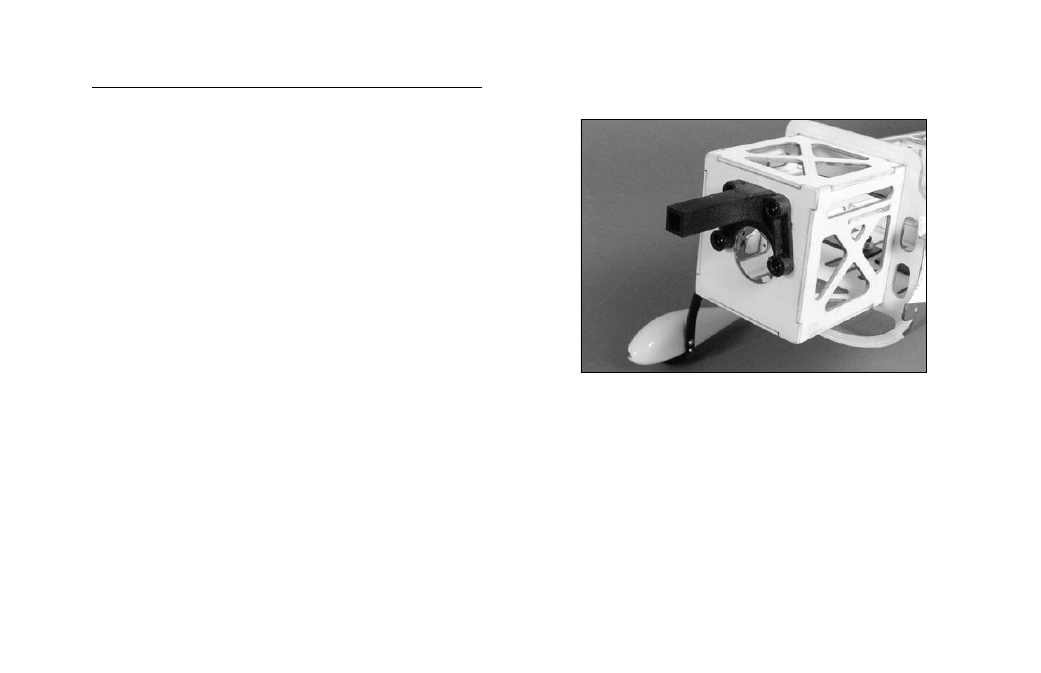

1. Secure the firewall stick mount to the fuselage

using four 4-40 x 1/2" socket head screws.
