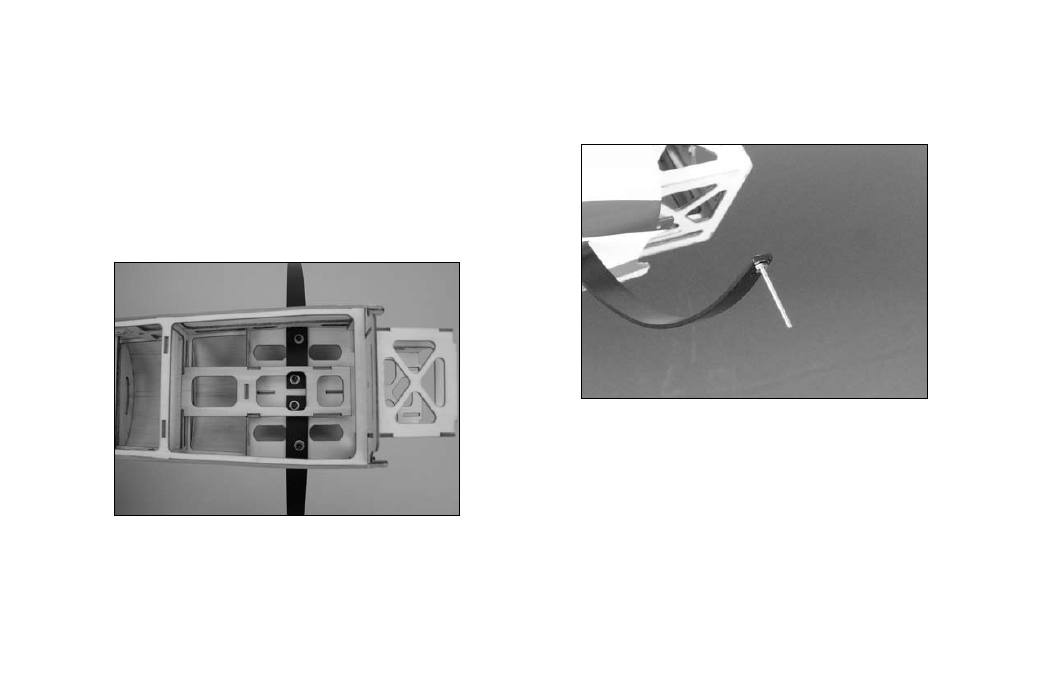

 3. Slide the 2mm x 25mm bolt through the
landing gear. Secure the bolt using a 2mm nut
and threadlock.
 2. Slide the landing gear into the fuselage. The
holes in the gear will only line up when installed
correctly. Slide a #4 washer onto each of the four
4-40 x 1/2" socket head screw. Place a drop of
threadlock onto each of the 4-40 screws. Slide the
screws through the landing gear and into the pre-
installed blind nuts. Use a 3/32" hex wrench to
tighten each of the screws.
