B101525-4-0411 Page 51

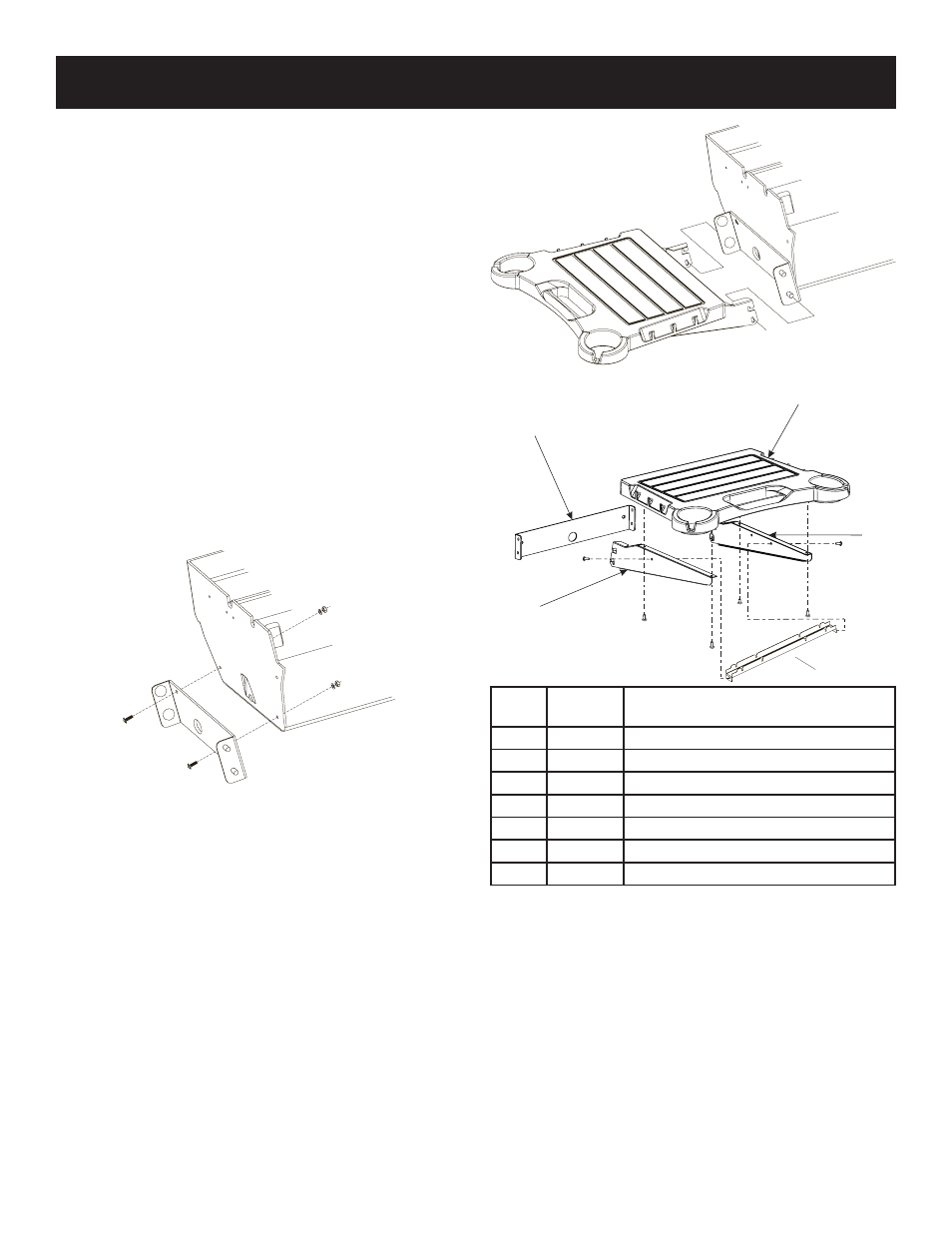

Solid Surface Drop-Down Side Shelf
1. Remove the cooking grids, briquets and briquet rack from
the grill.
2. Attach the Bracket Attach Assembly to the grill using the
Truss Head Screws, Flat Washers, Lock Washers, and
Nuts. See Figure 38.
3. Place the Side Shelf upside down on a clean surface and
use the four coarse-thread screws to loosely attach the
Support Brackets.
4. Place the support stiffener on the inside of the shelf using
(2) #10-16x1/2” screws to secure in place.
5. Hang the shelf brackets on the lower pins of the Bracket
Attach Assembly. Tighten the four screws to secure the
bracket arms to the shelf. See Figure 39.
6. To raise the shelf - swing it out and lift the notches over
the upper pins. Make sure the shelf is securely in position
before placing anything on it.
7. To lower the shelf - lift up on both brackets simultaneously
and pull out slightly.
f
igure
39
f
igure
40
D
rop
-D
own
S
iDe
S
helf
i
nStallation
f
igure
41
3
2
1
4
5
Index
No.
Part No. Description
1 B100561 Side Shelf
2 B100568 Support Bracket Front - Stainless Steel
2 B100559 Support Bracket Front - Black
3 B100569 Support Bracket Back - Stainless Steel
3 B100560 Support Bracket - Back - Black
4 B101370 Bracket Attach Assembly
5 B100993 Shelf Support Stiffener
