Checking for Gas Leaks
Check for gas leaks every time you connect your Broilmaster ®
propane gas grill to a Propane gas cylinder, when a con-
nected cylinder has not been used recently, or when either
a natural or propane grill is being used for the first time.
Caution: Do not use an open flame when checking for
leaks. Checking for leaks with an open flame may lead
to a fire or explosion, resulting in property damage or
personal injury.
To check for gas leaks:
1. Use dish washing liquid and a little water to make a soapy
solution.
2. Turn OFF the knob on the control panel.
3. Turn ON the gas at the supply or cylinder. A hissing
sound indicates a leak. Turn OFF the gas and repair
the leak.
4. Apply the soapy water solution to all gas connections.
5. Look for bubbles. Bubbles indicate a leak.
6. If there are bubbles turn OFF the gas and repair the
leak.
7. Turn the gas back ON and repeat the above procedures
until all leaks are repaired.
Air Shutter Adjustment
The venturi air shutter(s) are preset at the factory so that
after five minutes the burner flames are blue with well defined
cones. If, after five minutes the flame is yellow, or there is
a gap between the burner and the flame, adjust the venturi
air shutter as follows:
1. Turn gas OFF and let the burner cool.
2. Loosen shutter set screw
3. Close the air shutter to the minimum opening.
4. Light the burner, wait five minutes and then carefully open
the air shutter until the flame is blue and well defined.
5. Retighten the set screw.

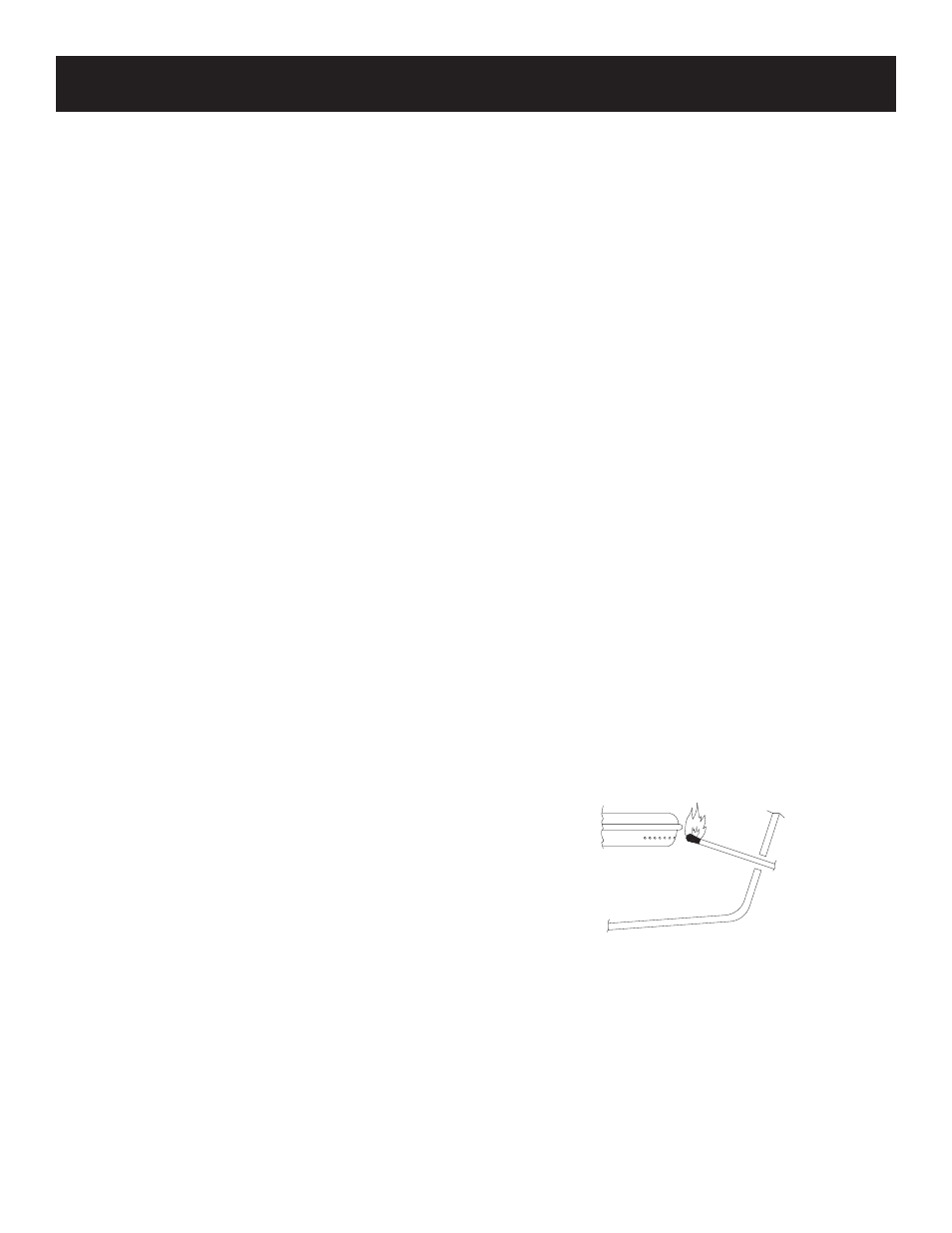

Figure 18
OPERATION - PROPANE & NATURAL GAS GRILLS
Operating Instructions
Using the Ignitor
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes, to allow the gas to clear,
then try again.
1. Turn knob on the grill CLOCKWISE to the OFF posi-
tion.
2. Turn ON gas at the source.
3. With the grill lid open, push and turn the burner control
knob COUNTERCLOCKWISE to Hi.
4. Push and hold the ignitor button until the burner lights
(approximately 5 seconds).
5. If a burner does not light, turn OFF all gas and refer to
the Troubleshooting section of this manual.
Operating Instructions
Using Matches
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes, to allow the gas to clear,
then try again.
1. Turn knob on the grill CLOCKWISE to the OFF posi-
tion.
2. Turn ON gas at the source.
3. Open the grill lid.
4. Insert a burning long wooden match through the lighter
hole on either side of the grill. See Figure 18.
5. Turn the burner control knob COUNTERCLOCKWISE to
HI.
6. If a burner does not light, turn OFF all gas and refer to
the Troubleshooting section of this manual.
