B101525-4-0411 Page 23

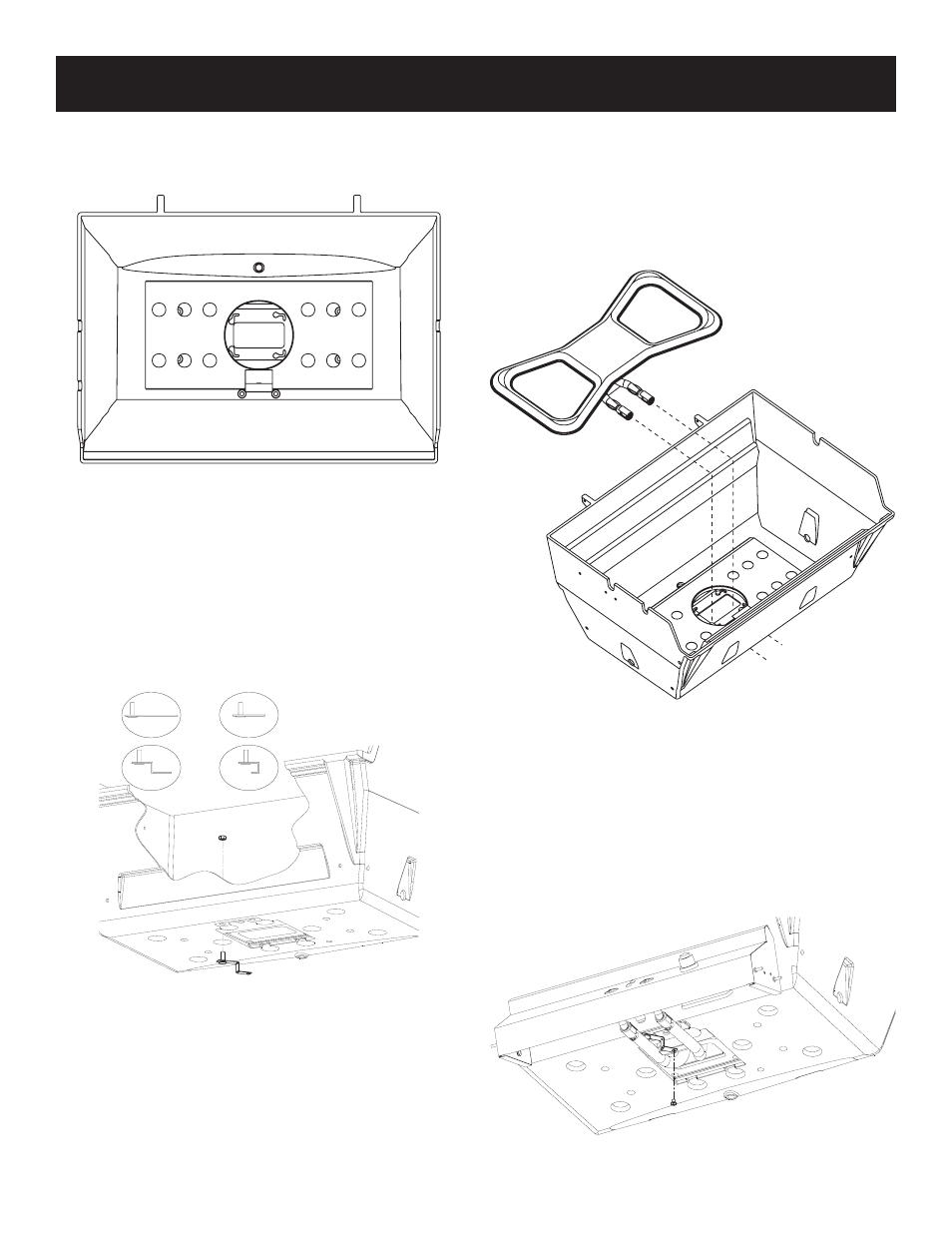

Radiation Shield
Place the radiation shield in the grill bottom.
See Figure 9.
Installing the Burner
Insert the burner assembly into the grill bottom with the venturi
tubes facing the front of the grill. See Figure 11.
Slide the venturi on top of the valve assembly. Attach burner
bracket to venturi and secure it with #8-32 x 1/2” screw. Tighten
the 1/4”-20 nut inside the grill. See Figure 12.
Figure 12
Figure 9
Figure 10
P3X/H3X P4X
BEFORE BEFORE
AFTER AFTER
GRILL ASSEMBLY
Installing Burner Bracket
Hand bend the bracket as shown in Figure 10. Insert bracket
screw in the bottom of the casting and secure with 1/4”-20
nut. Do not tighten.
Figure 11
Note: Bowtie burner is shown. The instructions for installing
the “H” burners is the same.
Note: If the Grill Head is installed on a PCB1 or DCB1,
make sure the burner bracket is mounted on the burner be-
fore installing it.
