1. Mount grill onto cart, post or base per the mount-
ing instructions.

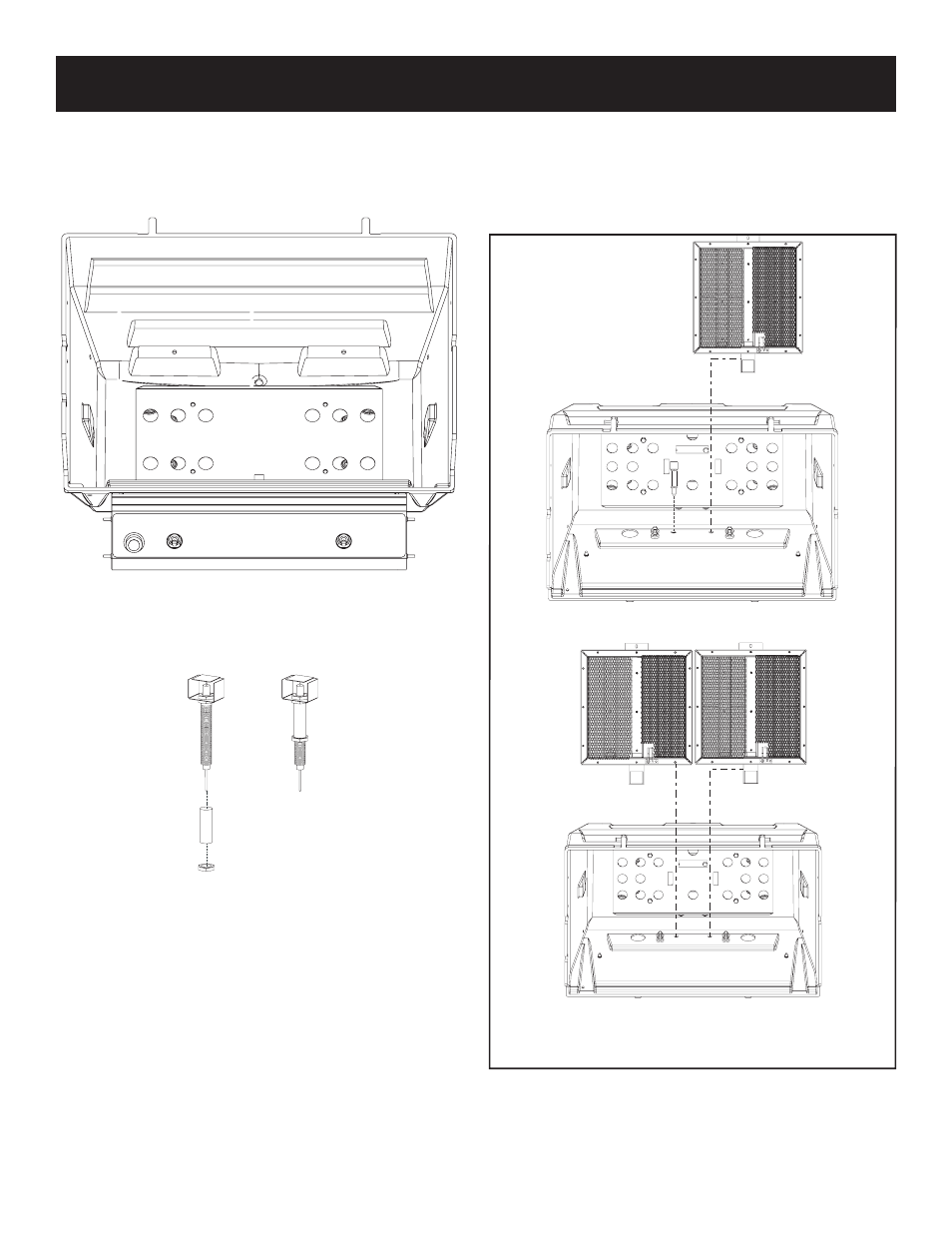

2. Place radiation shield (flange side up) onto four
raised bosses located on the interior bottom of the
grill. See Figure 20.
3. R3B model only: Slide ignitor spacer onto collector
box assembly and secure with nuts. See Figure
21.
Attention: Do not cut or damage ignitor wires.
Figure 20
4. R3B model only: Insert collector box assembly into
hole adjacent to burner. The opening of the collec-
tor box should be facing the burner. The infrared
ignitor wire slides through the empty hole next to
the burner. See Figure 22.
Figure 21
Figure 22
R3B
R3
GRILL ASSEMBLY
