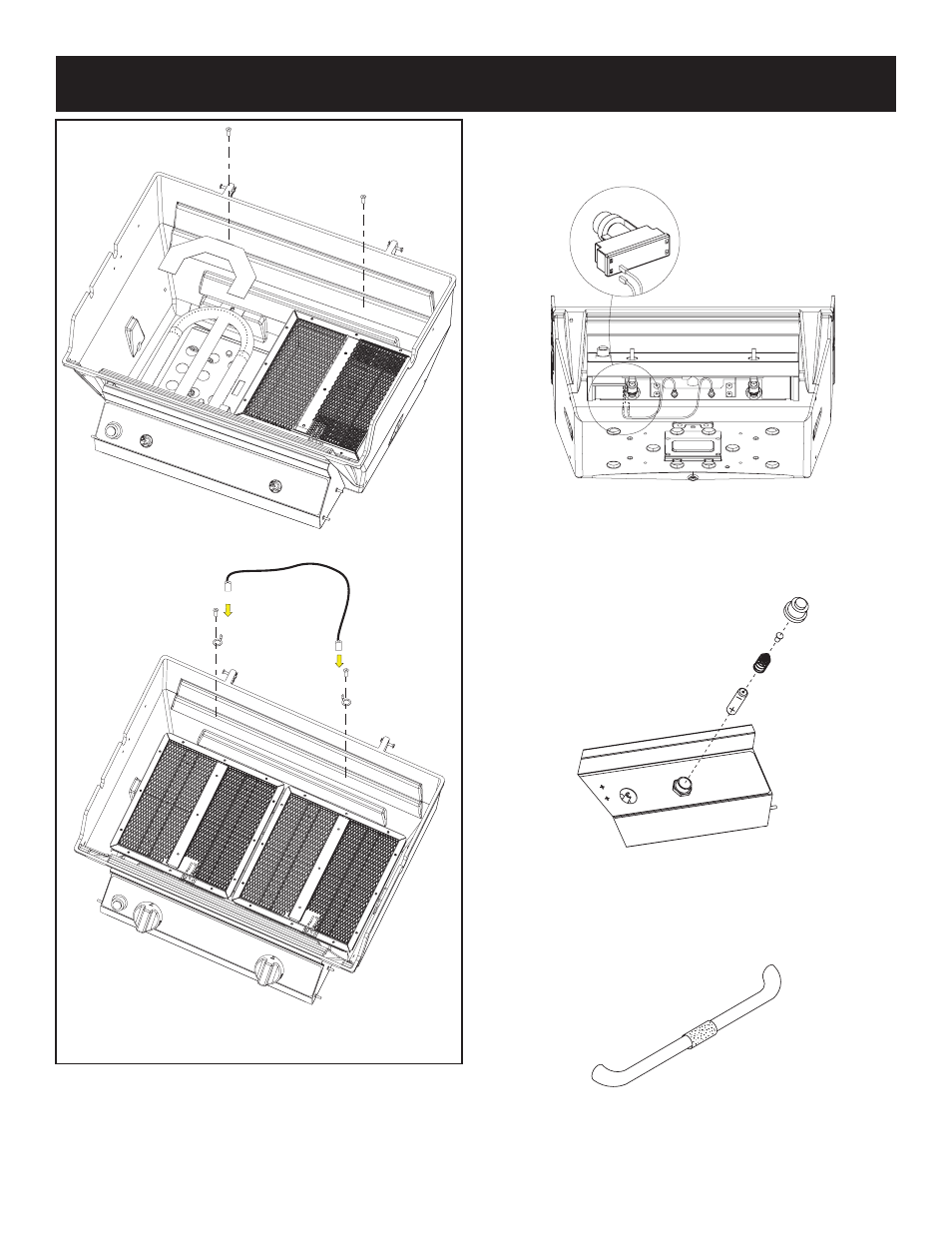

6. Remove ignitor from the control panel by unscrew-
ing the ignitor button and nut. Attach ignitor wires
to terminals on the ignitor. See Figure 26.
7. Re-attach the ignitor to the control panel, then
tighten nut and insert AA battery, positive side
down, and replace ignitor button. See Figure 27.
8. Install foam grip on lid handle. See Figure 28.
Tip: For ease of installation, slightly lubricate the
lid handle with liquid soap before pushing the foam
grip into place.
Figure 27
Figure 28
Figure 26
R3B
R3
Figure 25
GRILL ASSEMBLY
