S
tationary
S
iDe
S
helf
i
nStallation
Stainless Steel Side Shelf
1. Remove the cooking grids, briquets and briquet rack from
the grill.
2. Attach the Handle Shelf Bracket to the grill using the Hex
Head Bolts, Flat Washers, Lock Washers, and Nuts. Do
not over-tighten.
3. Place the Tool Hook Bar inside the Shelf and place the
Shelf on the Bracket, aligning the screw hole. Insert the
Truss Head Screw and tighten. See Figure 37.

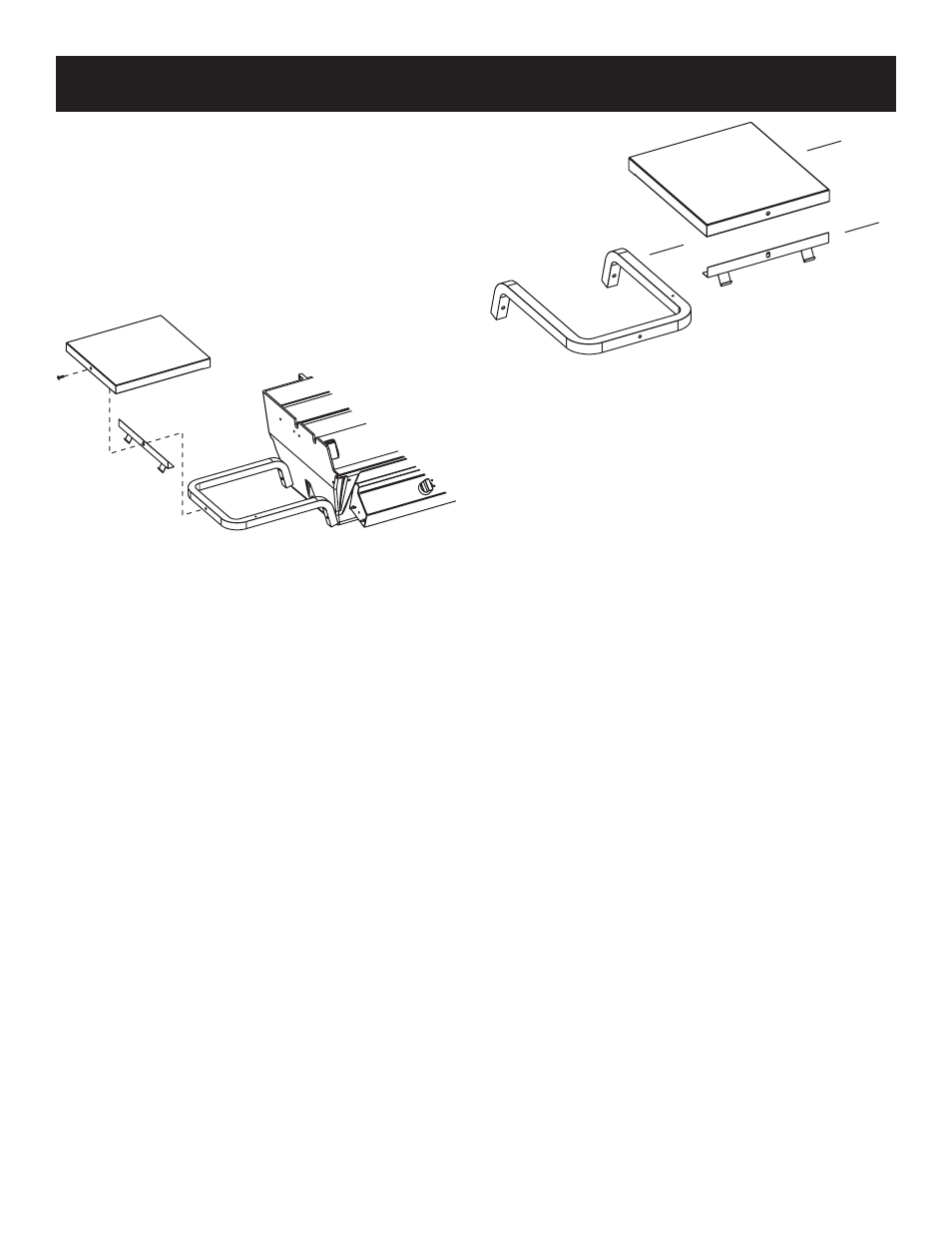

f
igure
37
Index No. Part No. Description
1 B076727 SIDE SHELF
2 B073971 TOOL HOOK
3 B101405 HANDLE SHELF BRACKET
B100002 HARDWARE PACKAGE
1
2
3
All repair part orders should be placed through your local Broilmaster ® dealer. To locate a dealer in your area, contact
Broilmaster Customer Service •
www
.broilmaster.com. To ensure prompt and accurate service, please provide the following
information when placing a repair part order: Model Number of your grill, Part Name, Part Number, and Quantity of parts
needed.
f
igure
38
