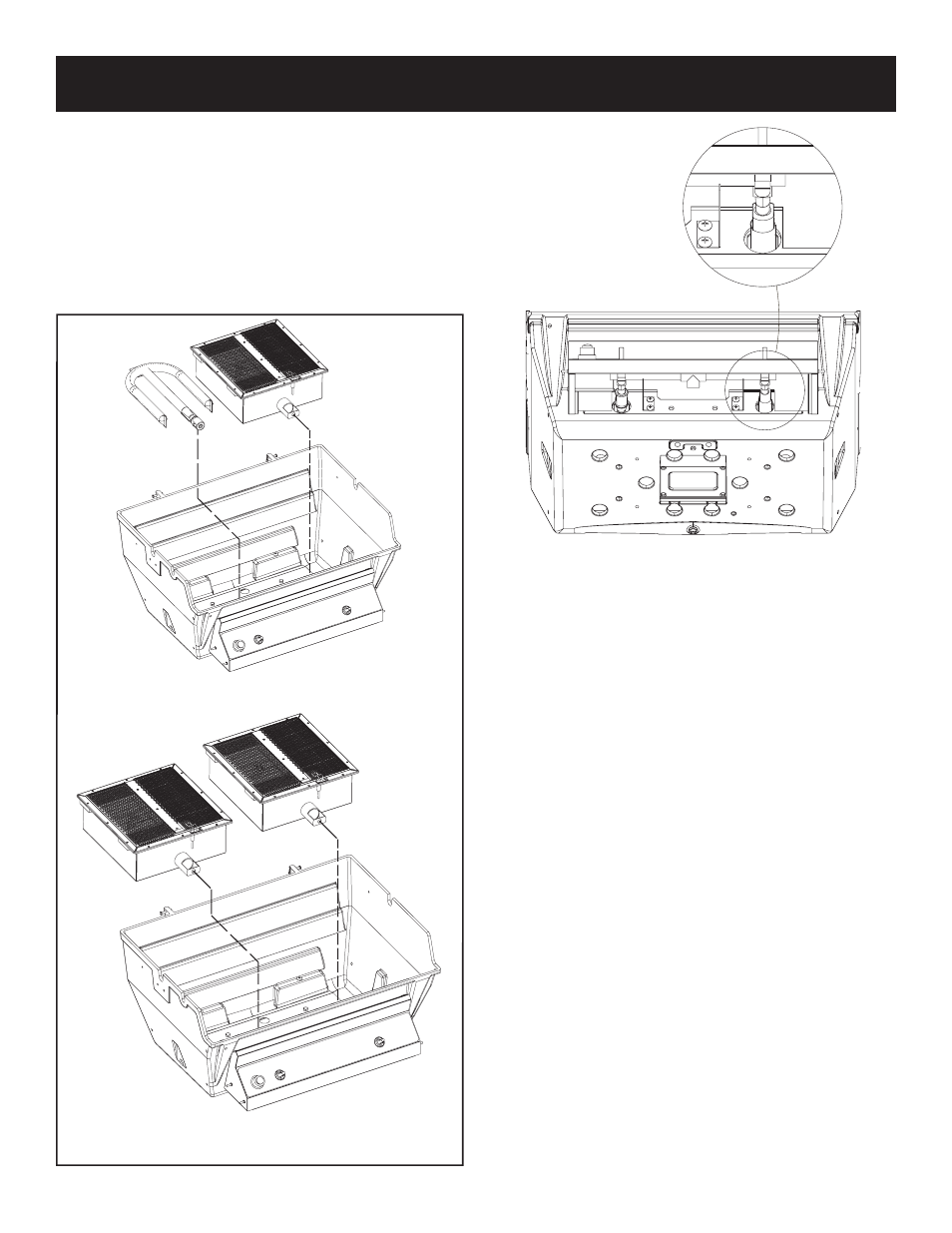

5. Place blue flame burner on the left and infrared
on the right into grill and insert burner tubes over
orifice fittings on valve. Secure each burner and
burner shield with one (1) 1/4-20 x 3/4 phillips
screw and nut. See Figures 23, 24, and 25. R3
model only: Use lugs to attach ground wire before
screwing the two infrared burners on. See Figure
25. Tuck ground wire underneath the burners to
prevent damage.
R3B
Figure 24
R3
Figure 23
GRILL ASSEMBLY
