B101525-4-0411 Page 22

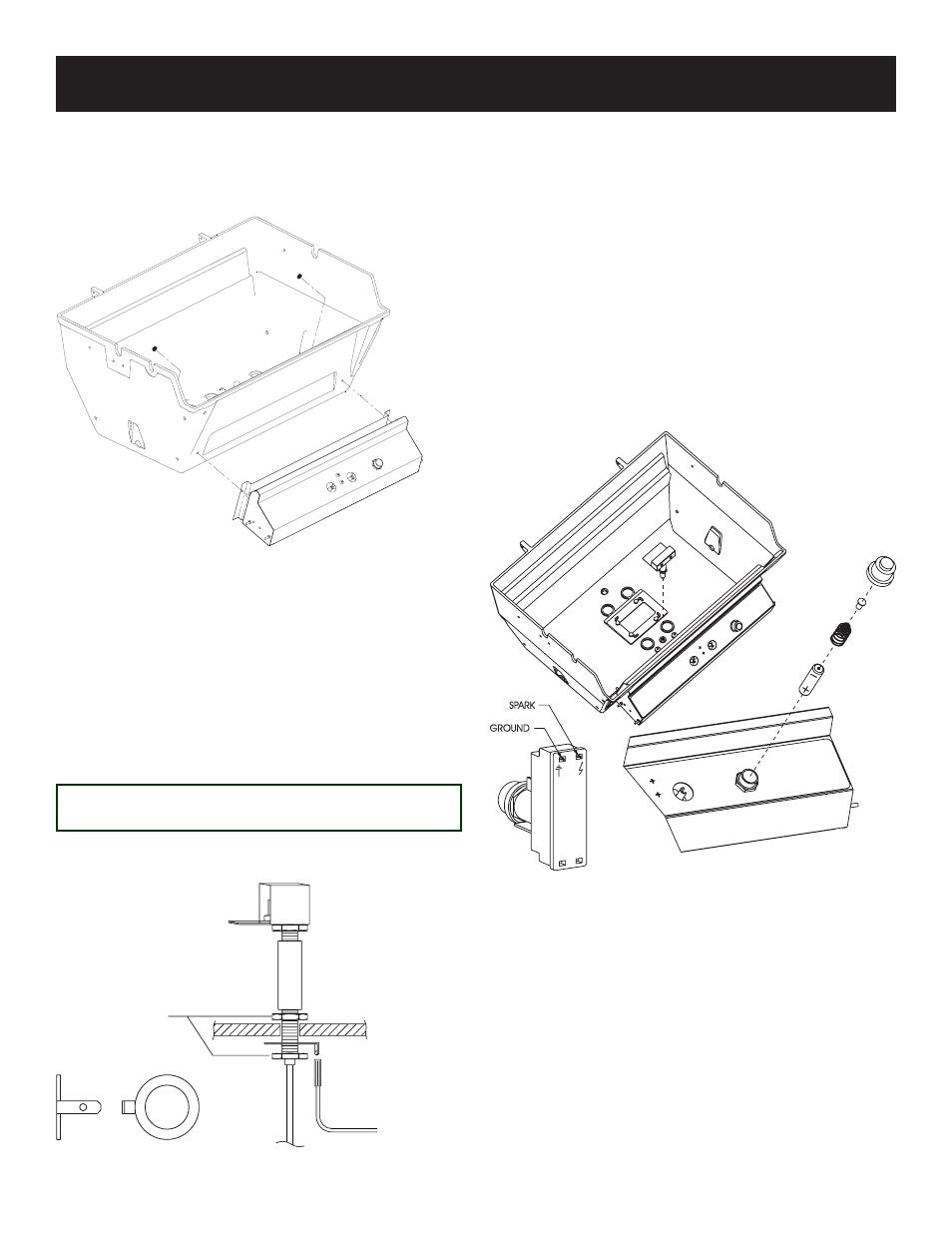

Installing the Ignitor
Caution: Do not cut or damage ignitor wire.
Carefully thread the end of the ignitor wire through the center
hole in the grill bottom. Slide the ground lug over the ignitor
wire and fasten with nut provided.
Attach one end of the ground wire to the terminal on the
rear of the electronic ignitor. Attach the remaining end to the
ground lug. See Figures 7 and 8.
Attach ignitor wire to the spark terminal on the rear of the
electronic ignitor.
Figure 8
Installing Control Panel
Attach radiation shield control panel assembly to grill bottom
with two (2) 10-24 keps nuts. See Figure 6.
Figure 6
GRILL ASSEMBLY
Nut
Figure 7
Ignitor Assembly
Slide the collector box spacer and nut (provided on assembly)
onto the collector box shaft and tighten. See Figure 7.
Note: Peel protective film from control panel label before
installing ignitor.
