A-GAGE EZ-ARRAY
Instruction Manual

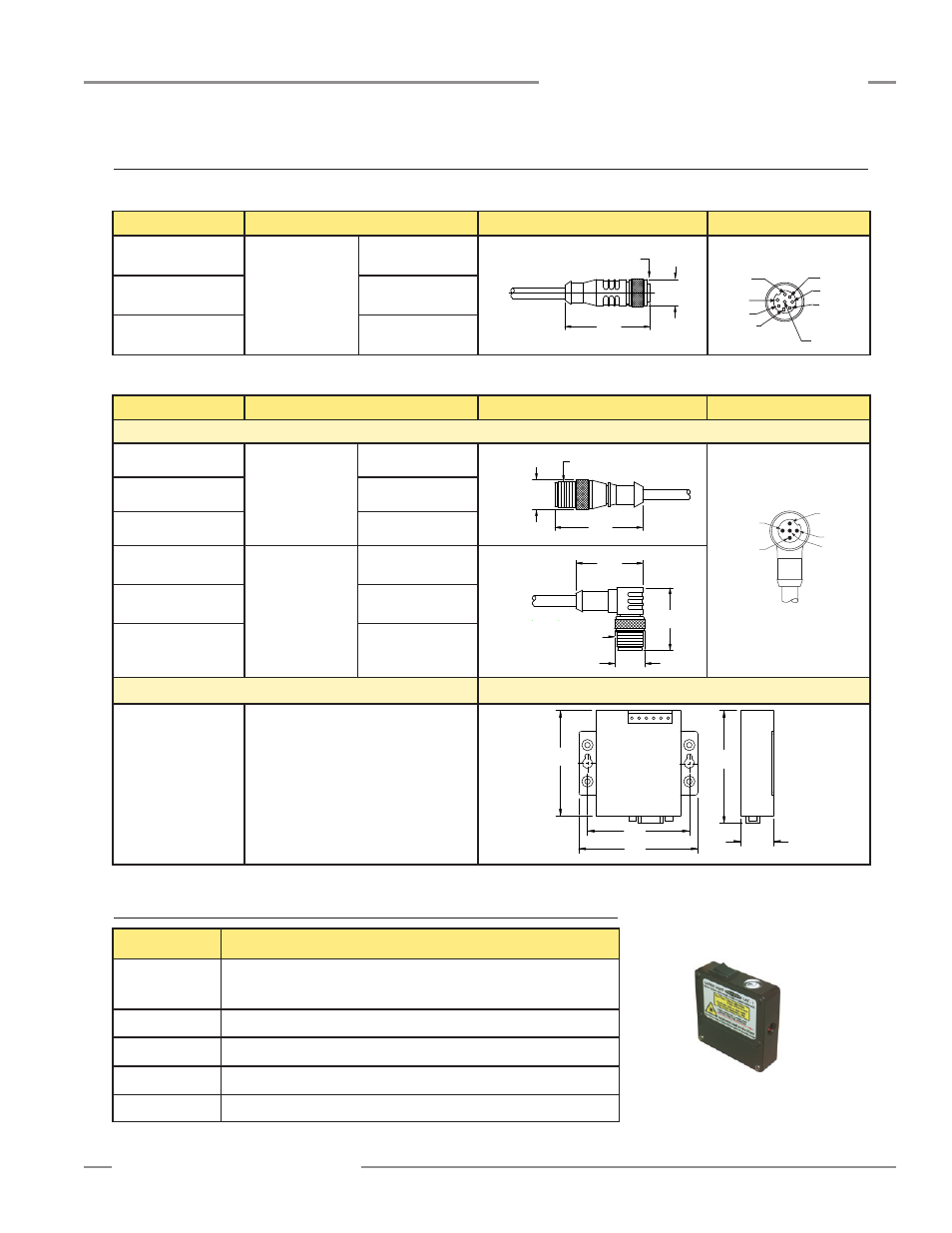

Components and Specifications
Model Description Pinout
Communications Cables
MQDMC-506
Straight male
connector, 5-pin
Euro-style
2 m (6.5') long
Male Connector Shown
MQDMC-515 5 m (15') long
MQDMC-530 9 m (30') long
MQDMC-506RA
Right-angle male
connector, 5-pin
Euro-style
2 m (6.5') long
MQDMC-515RA 5 m (15') long
MQDMC-530RA 9 m (30') long
USB Serial Adapter Dimensions
INTUSB485-1
For connection of 5-pin communications
cable to computer USB port
2.2 Cordsets and Connections
Quick-Disconnect Sensor Cordsets
Model Description Pinout
MAQDC-815
Straight female
connector,
8-pin Euro-style
5 m (15') long
Female Connector Shown
MAQDC-830 9 m (30') long
MAQDC-850 15 m (50') long
Model Description
LAT-1-SS
Self-contained visible-beam laser tool for aligning any EZ-ARRAY emitter/
receiver pair. Includes retroreflective target material and mounting clip.
EZA-LAT-SS Replacement adaptor (clip) hardware for EZ-ARRAY models
EZA-LAT-2 Clip-on retroreflective LAT target
BRT-THG-2-100 2" retroreflective tape, 100'
BT-1 Beam Tracker
2.3 Alignment Aids
LAT-1-SS
22.5 mm
(0.88")
72.5 mm
(2.85 ")
70.0 mm
(2.75")
82.0 mm
(3.23")
77.5 mm
(3.05")
Communication Connections
White
Brown
Blue
Gray Black
Green
Yellow
Gray
Red
Brown
White
Blue
Pink
Ø15.0 mm
(0.59")
M12X1
48.5 mm
(1.91")
M12X1
Ø14.5 mm
(0.57")
40.0 mm
(1.57")
31.8 mm
(1.25")
31 mm
(1.22")
M12X1
Ø13.5 mm
(0.53")
