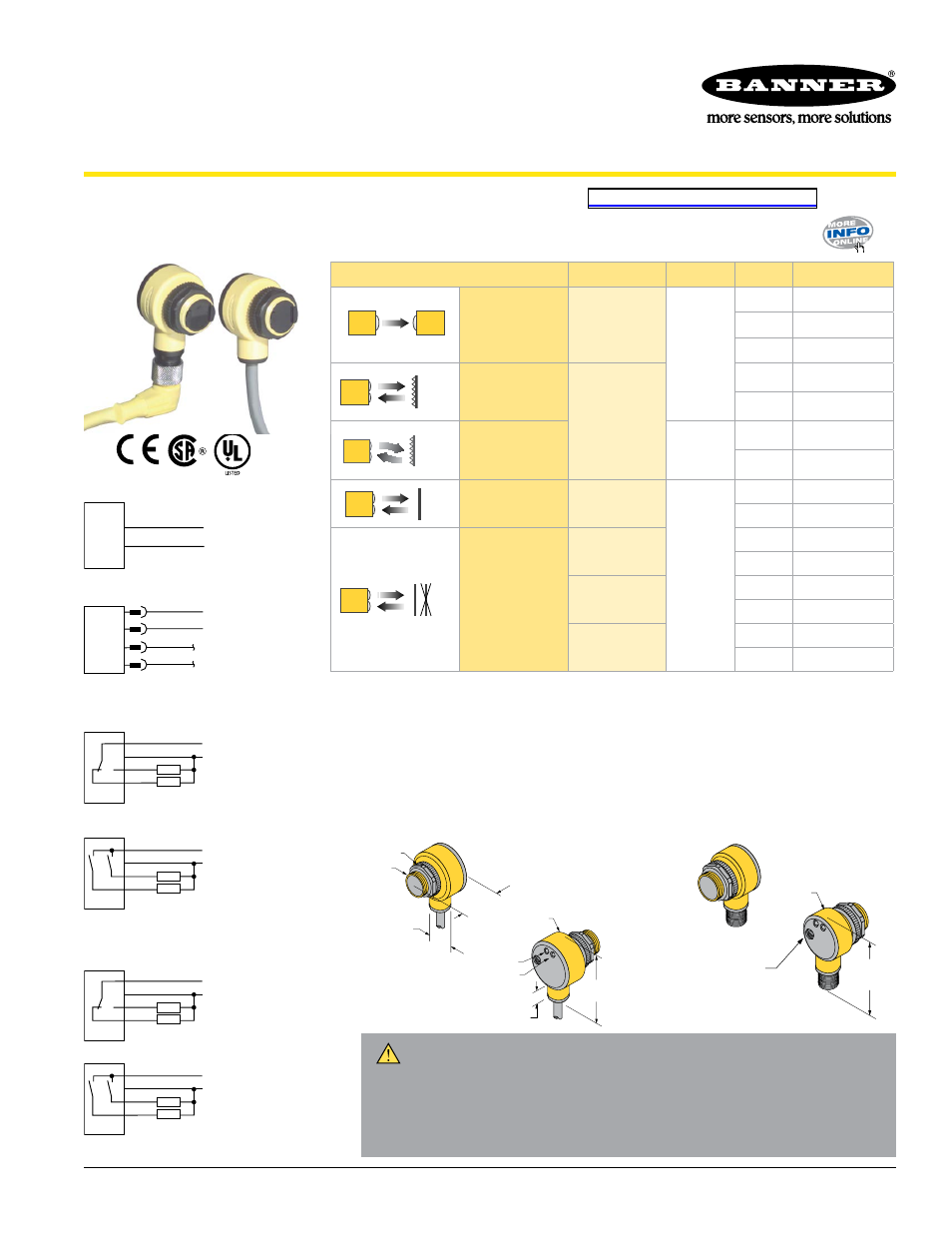

Banner T18 Series - Manual

T18 Sensors - DC Voltage Series
Self-contained, dc-operated sensors
Printed in USA Jan 2013 P/N 116163 Rev. B
41.5 mm
(1.64")
ø 30.0 mm
(1.18")
Jam Nut
(Supplied)
11.5 mm
(0.45")
M18 x 1
Thread
ø 15 mm
(0.59")
30.0 mm
(1.18")
Green LED
Power Indicator
Yellow LED
Output Indicator
53.7 mm
(2.11")
ø 30.0 mm
(1.18")
Single-turn
Sensitivity (Gain) Control
(D and L Models)
Additional information on this product is immediately available online at www.bannerengineering.com/116163
View or download additional information, including excess gain curves, beam patterns and accessories.
For further assistance, contact a Banner Engineering Applications Engineer at (763) 544-3164 or (888) 373-6767.
* Standard 2 m (6.5') cable models are listed.
• 9 m (30') cable: add suffix “W/30” (e.g., T186E W/30).
• 4-pin Euro-style QD models: add suffix “Q” (e.g., T186EQ). A model with a QD connector requires a mating
cable.
† Use polarized models when shiny objects will be sensed.
Sensing Mode Range LED Output Model*
Opposed 20 m (66')
Infrared
950 nm
– T186E
NPN T18SN6R
PNP T18SP6R
Retro-reflective
with Gain control
2 m (79")†
NPN T18SN6L
PNP T18SP6L
P
Polarized Retro-
reflective
Visible
Red
680 nm
NPN T18SN6LP
PNP T18SP6LP
Diffuse with Gain
control
500 mm (20")
Infrared
880 nm
NPN T18SN6D
PNP T18SP6D
Fixed Field
25 mm (1")
cutoff
NPN T18SN6FF25
PNP T18SP6FF25
50 mm (2")
cutoff
NPN T18SN6FF50
PNP T18SP6FF50
100 mm (4")
cutoff
NPN T18SN6FF100
PNP T18SP6FF100
Dimensions
Cabled Models
QD Models
bn
bu
wh
bk
+
10 - 30V dc
–
Load
Load
Cabled Emitters
bn
bu
wh
bk
10 - 30V dc
Load
Alarm
+
–
bn
bu 10-30V dc
+
–
NPN (Sinking) Outputs
Standard Hookup
10-30V dc
No Connection
bu
bk
bn
wh
+
–
PNP (Sourcing) Outputs
Standard Hookup
QD Emitters
Alarm Hookup
Alarm Hookup
bu
bn
wh
bk
+
10 - 30V dc
–
Load
Load
bn
bu
wh
bk
10 - 30V dc
Load
Alarm
+
–
NOTE: QD hookups are functionally identical.
WARNING . . . Not To Be Used for Personnel Protection
Never use these products for personnel protection. Doing so could lead to serious injury or death. These
devices do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety
applications. A device failure or malfunction can cause either an energized or de-energized output condition.
Consult your current Banner Safety Products catalog for safety products that meet OSHA, ANSI, and IEC
standards for personnel protection.
