Banner EZ-ARRAY USB Serial Adapter - Manual (Page 12)

10 P/N 130426 Rev. C
Banner Engineering Corp. • Minneapolis, U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
A-GAGE EZ-ARRAY
Instruction Manual
Components and Specifications
2. Components and Specifications
Emitter/Receiver Model
NPN Outputs
Emitter/Receiver Model
PNP Outputs
Analog Output
Array
Length
Y*
Total
Beams
EA5E150Q Emitter
EA5R150NIXMODQ Receiver
EA5R150NUXMODQ Receiver EA5E150Q Emitter
EA5R150PIXMODQ Receiver
EA5R150PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
150 mm
(5.9")
30
EA5E300Q Emitter
EA5R300NIXMODQ Receiver
EA5R300NUXMODQ Receiver EA5E300Q Emitter
EA5R300PIXMODQ Receiver
EA5R300PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
300 mm
(11.8")
60
EA5E450Q Emitter
EA5R450NIXMODQ Receiver
EA5R450NUXMODQ Receiver EA5E450Q Emitter
EA5R450PIXMODQ Receiver
EA5R450PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
450 mm
(17.7")
90
EA5E600Q Emitter
EA5R600NIXMODQ Receiver
EA5R600NUXMODQ Receiver EA5E600Q Emitter
EA5R600PIXMODQ Receiver
EA5R600PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
600 mm
(23.6")
120
EA5E750Q Emitter
EA5R750NIXMODQ Receiver
EA5R750NUXMODQ Receiver EA5E750Q Emitter
EA5R750PIXMODQ Receiver
EA5R750PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
750 mm
(29.5")
150
EA5E900Q Emitter
EA5R900NIXMODQ Receiver
EA5R900NUXMODQ Receiver EA5E900Q Emitter
EA5R900PIXMODQ Receiver
EA5R900PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
900 mm
(35.4")
180
EA5E1050Q Emitter
EA5R1050NIXMODQ Receiver
EA5R1050NUXMODQ Receiver EA5E1050Q Emitter
EA5R1050PIXMODQ Receiver
EA5R1050PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
1050 mm
(41.3")*
210
EA5E1200Q Emitter
EA5R1200NIXMODQ Receiver
EA5R1200NUXMODQ Receiver EA5E1200Q Emitter
EA5R1200PIXMODQ Receiver
EA5R1200PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
1200 mm
(47.2")*
240
EA5E1500Q Emitter
EA5R1500NIXMODQ Receiver
EA5R1500NUXMODQ Receiver EA5E1500Q Emitter
EA5R1500PIXMODQ Receiver
EA5R1500PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
1500 mm
(59.1")*
300
EA5E1800Q Emitter
EA5R1800NIXMODQ Receiver
EA5R1800NUXMODQ Receiver EA5E1800Q Emitter
EA5R1800PIXMODQ Receiver
EA5R1800PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
1800 mm
(70.9")*
360
EA5E2100Q Emitter
EA5R2100NIXMODQ Receiver
EA5R2100NUXMODQ Receiver EA5E2100Q Emitter
EA5R2100PIXMODQ Receiver
EA5R2100PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
2100 mm
(82.7")*
420
EA5E2400Q Emitter
EA5R2400NIXMODQ Receiver
EA5R2400NUXMODQ Receiver EA5E2400Q Emitter
EA5R2400PIXMODQ Receiver
EA5R2400PUXMODQ Receiver –
Current (4–20 mA)
Voltage (0–10V)
2400 mm
(94.5")*
480
* Models with array lengths 1050 mm and longer ship with a center bracket as well as two end-cap brackets.

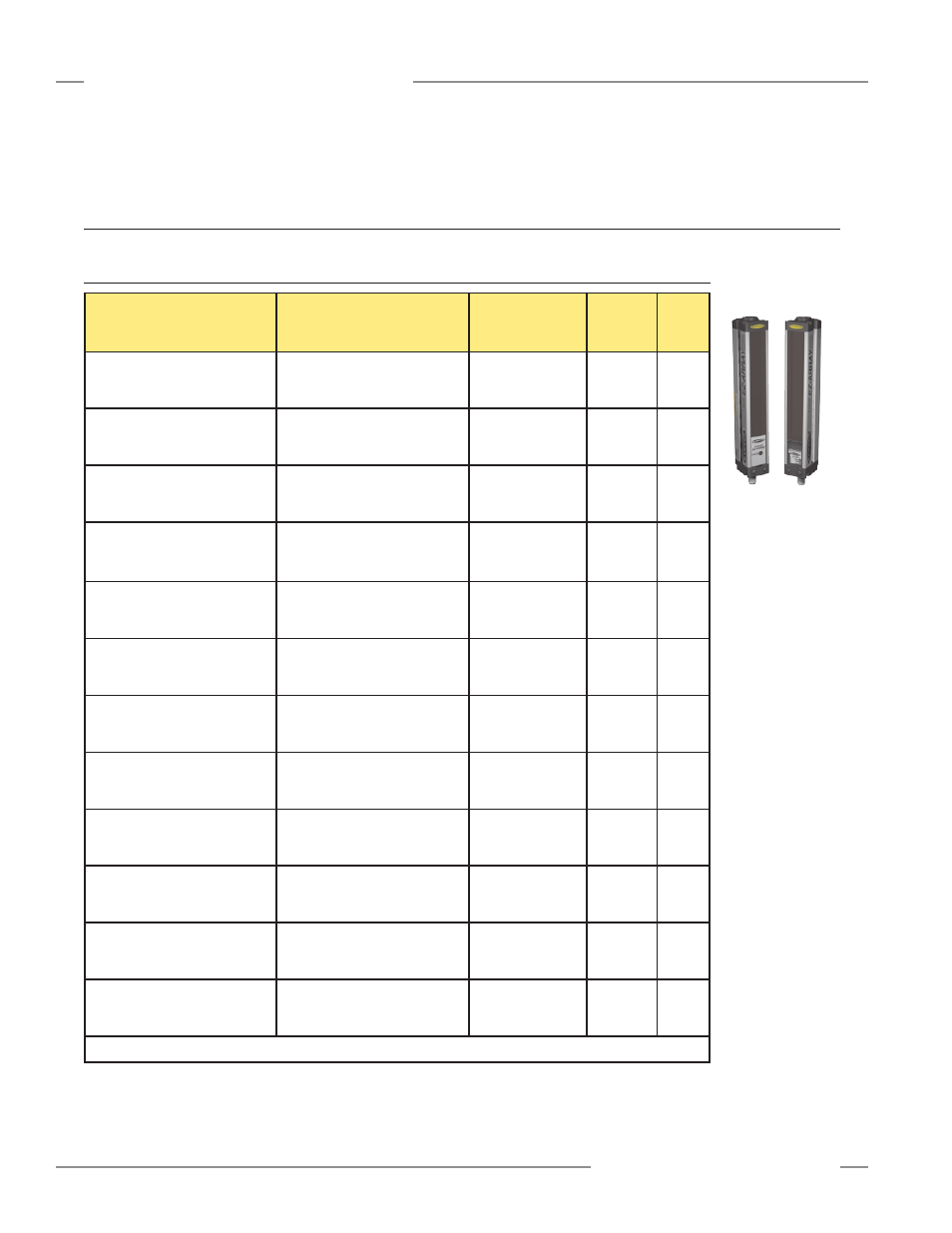

2.1 Sensor Models
Receiver Emitter
