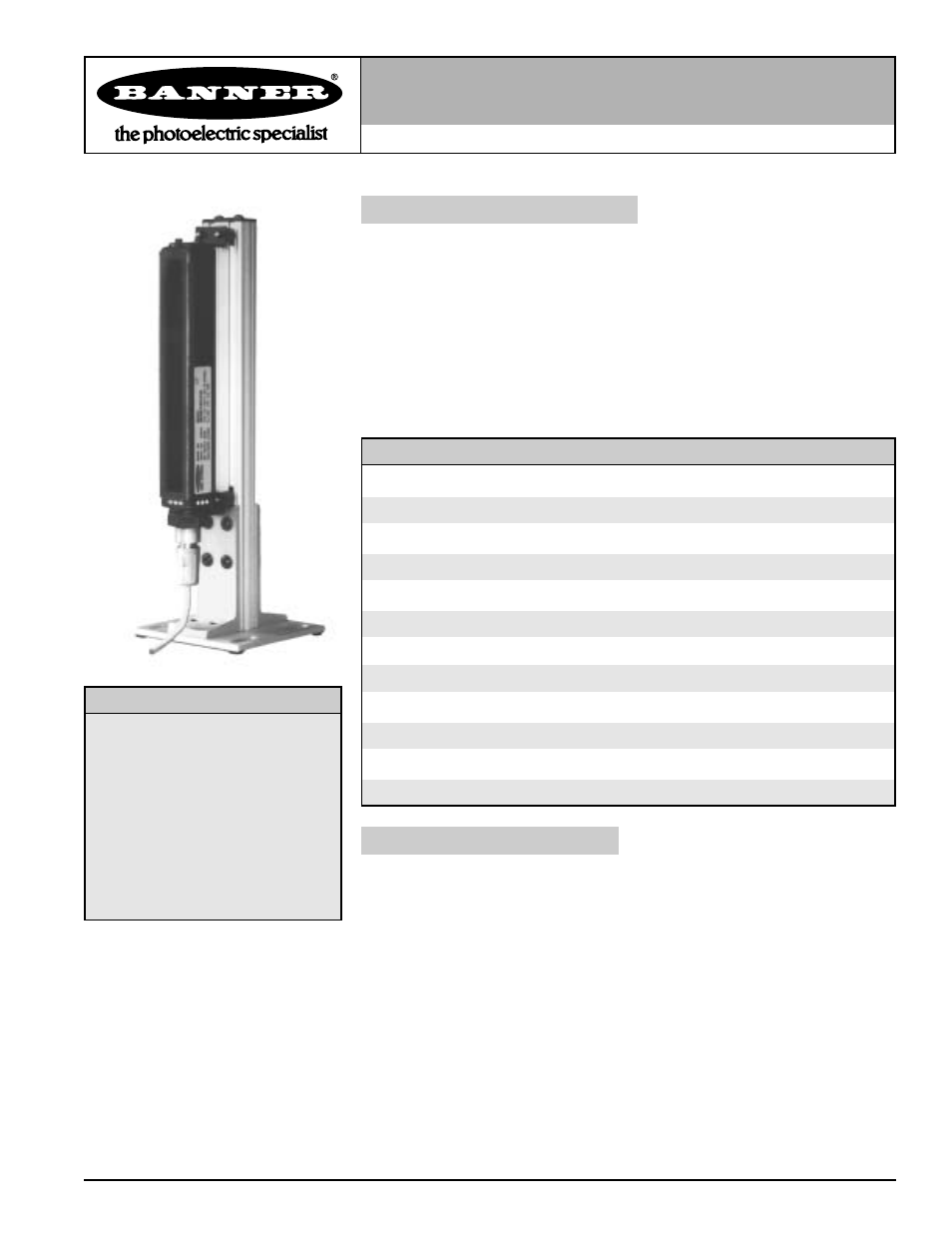

Banner MINI-SCREEN Lens Shields - Manual

4" MSS4 44308 5.4"
8" MSS8 44309 9.4"
12" MSS12 44310 13.4"
16" MSS16 44311 17.4"
20" MSS20 44312 21.4"
24" MSS24 44313 25.3"
28" MSS28 44314 29.3"
32" MSS32 44315 33.3"
36" MSS36 44316 37.3"
40" MSS40 44317 41.3"
44" MSS44 44318 45.3"
48" MSS48 44319 49.3"
Model MSSxx is a replaceable protective cover for the lens of a MINI-SCREEN or
MINI-ARRAY sensor lens. The shield is made of 1.5 mm ( 0.6”) clear polycarbonate.
Shield models are available for every length of sensor from 4-inches to 48-inches
(see chart, below). The shields attach to the sensor using two adhesive-backed Neoprene
foam strips.
Application Note: When shields are installed on both the emitter and receiver, excess
gain is reduced by 36 percent (and maximum operating range is reduced by 20 percent)
• 1.5 mm (0.6") clear polycarbon-
ate
• Neoprene foam
• Easy to assemble; available in
lengths from 4-inches to
48-inches
MINI-SCREEN ® Lens Shields
For MINI-SCREEN ® Sensors
Printed in USA P/N 44418
MSA Series Description
Protective Shield Model Number Assembly Number Length
MS Shield Features
Remove all dust, dirt, and oil from the metal surfaces on all four sides of the MINI-
SCREEN sensor lens using a mild detergent or window cleaner and a soft cloth.
Also clean the MINI-SCREEN lens and the lens shield, if needed. NOTE: Avoid
cleaning agents containing alcohol, as they will damage the acrylic lens. If in doubt
about the composition of a cleaning agent, test a small area of the acrylic sensor
lens below the active lens area (i.e. - at the bottom of the sensor, just above the
cable connector) by applying the cleaning agent and allowing it to evaporate.
The foam gasket is pre-attached to the lens shield. Peel the paper backing from the
foam gasket. Press one end of the lens shield to the bottom end of the sensor, just
above the status indicators, and continue by applying pressure and moving slowly to
the top end. The width of the lens shield is very close to the width of the sensor, so
it is easy to keep centered during mounting.
Shield Installation
