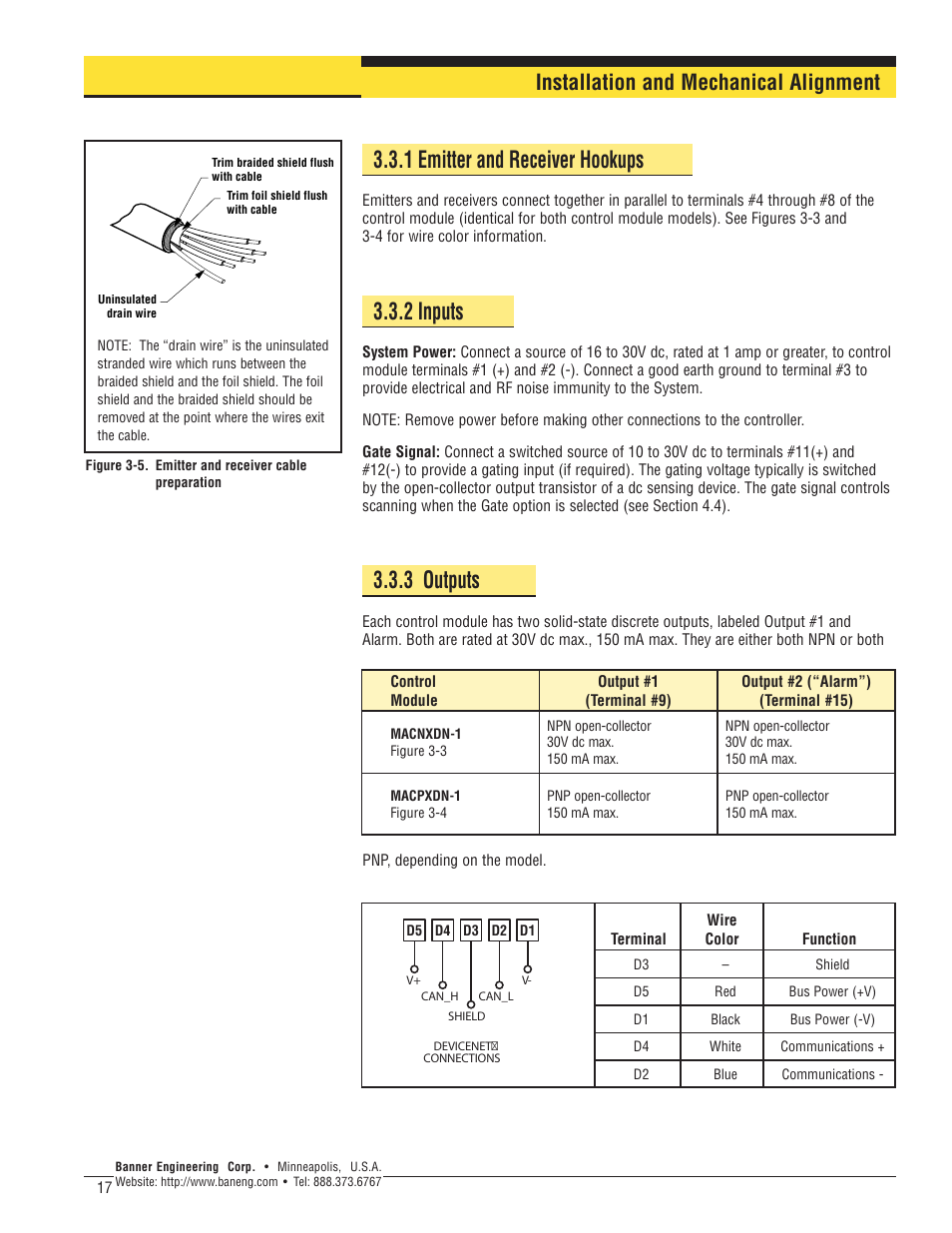

1 emitter and receiver hookups, 2 inputs, 3 outputs – Banner A-GAGE MINI-ARRAY Series User Manual
Page 17: Installation and mechanical alignment
