Banner L-GAGE LT7 Series - Manual (Page 8)

L-GAGE® LT7 Long-Range Time-of-Flight Sensor
Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: 763.544.3164
8
P/N 120244 Rev. B

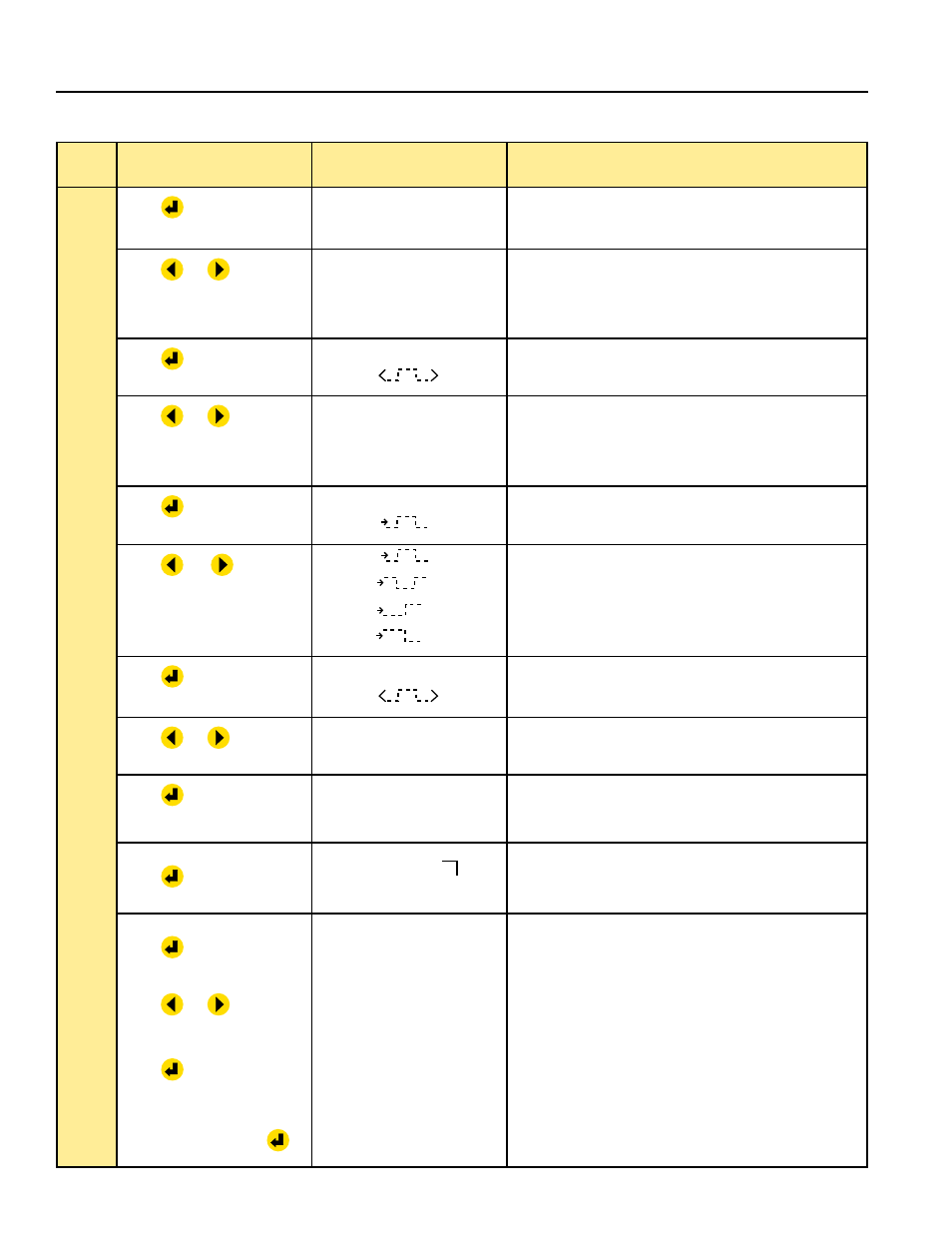

Main
Menu Procedure
Example Displays Result
TEACH-IN
(Setup) – Discrete
Press
ESC
to enter TEACH-IN
menu.
TEACH-IN Sensor displays current output selected.
Press
ESC
or
ESC
to scroll
through output options. (diffuse model only)
Sensor displays output options.
Press
ESC
to select displayed
output.
MODE Q1 Sensor displays current output and mode selections.
Press
ESC
or
ESC
to scroll
through options for Output 1.
MODE Q1
TEACH1.1
TEACH1.2
HYST 1
Sensor displays TEACH options for selected output.
See following steps for procedures if other than mode Q1.
Press
ESC
to view output mode
options.
MODE Q1 Sensor displays arrow to denote options can be viewed.
Press
ESC
or
ESC
to scroll
through options.
Sensor displays output mode options.
Press
ESC
to select displayed
output mode.
MODE Q1 Sensor saves selected option.
Press
ESC
or
ESC
to scroll
through options for Output 1.
TEACH 1.1
< 203>
Sensor again displays TEACH options for selected output.
Press
ESC
to select displayed
option.
TEACH 1.1
203
Sensor is ready to learn limit 1.
Proceed by teaching limit 1.1 target condition or via Manual Adjust
TEACH1.1
Press
ESC
to teach target
condition.
TEACH1.1
<241>
Limit 1 value
Sensor saves limit 1 setting and returns to Output 1 menu level.
Manual Adjust
Press
ESC
to access Manual
Adjust.
TEACH1.1
241
Press
ESC
or
ESC
to decrease
or increase value of each digit.
Blinking cursor indicates active digit (beginning with right-hand
digit).
Press
ESC
to select and move
one digit left.
When cursor is at left-hand digit
and value is correct, press
ESC
Sensor saves setting and returns to Output 1 menu level.
