EZA-S Series Enclosures
Banner Engineering Corp., 9714 Tenth Ave. No., Minneapolis, MN 55441 • Phone: 763.544.3164 • www.bannerengineering.com • Email: [email protected]
P/N 109308 rev. B
Installation
1. Remove front panel and top plate.
2. Position EZ-SCREEN with mounting brackets over spring nuts (supplied).
3. Fasten sensors with M6 lockwashers and screws in four places.
4. Adjust position of sensor so that the bottom light beam (dot on metal housing) is the
proper height above the floor (see Figure 1 for proper distance).
5. Reinstall top plate and front panel.

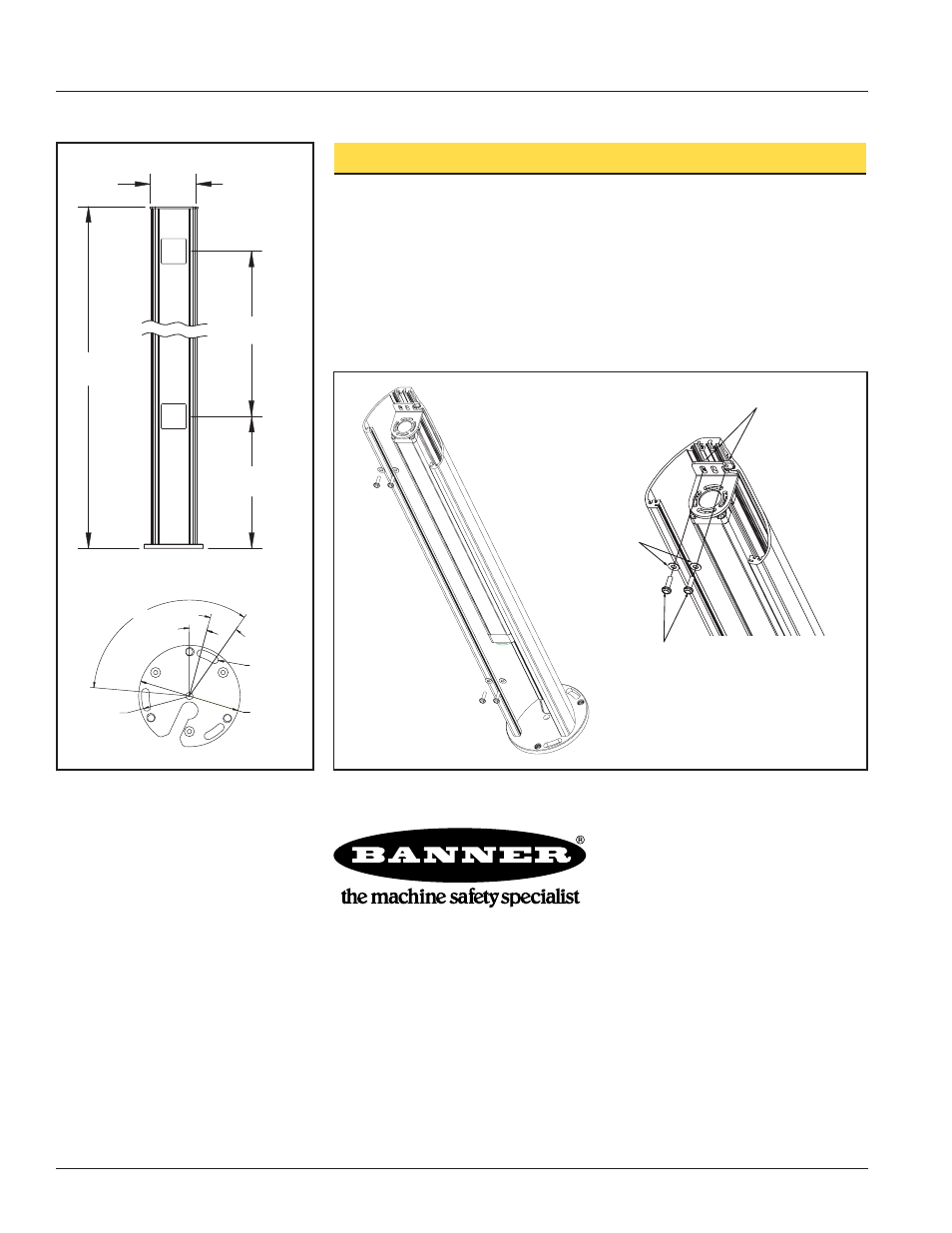

Figure 1. EZA-S Series enclosure
dimensions Figure 2. Installation of EZ-SCREEN emitter/receiver into EZA-S enclosure
M6 spring nut
M6 lockwasher
M6 screw
L1
L3
L2
145 mm
(5.7")
2X 120 °
3X 20 °
15 °
6X R6.60 mm
R (0.26")
Ø 177.8 mm
(7.00") 3X R83.8 mm
(3.30")
