6.8 Metrohm solvent delivery unit
IC Net 2.1 81

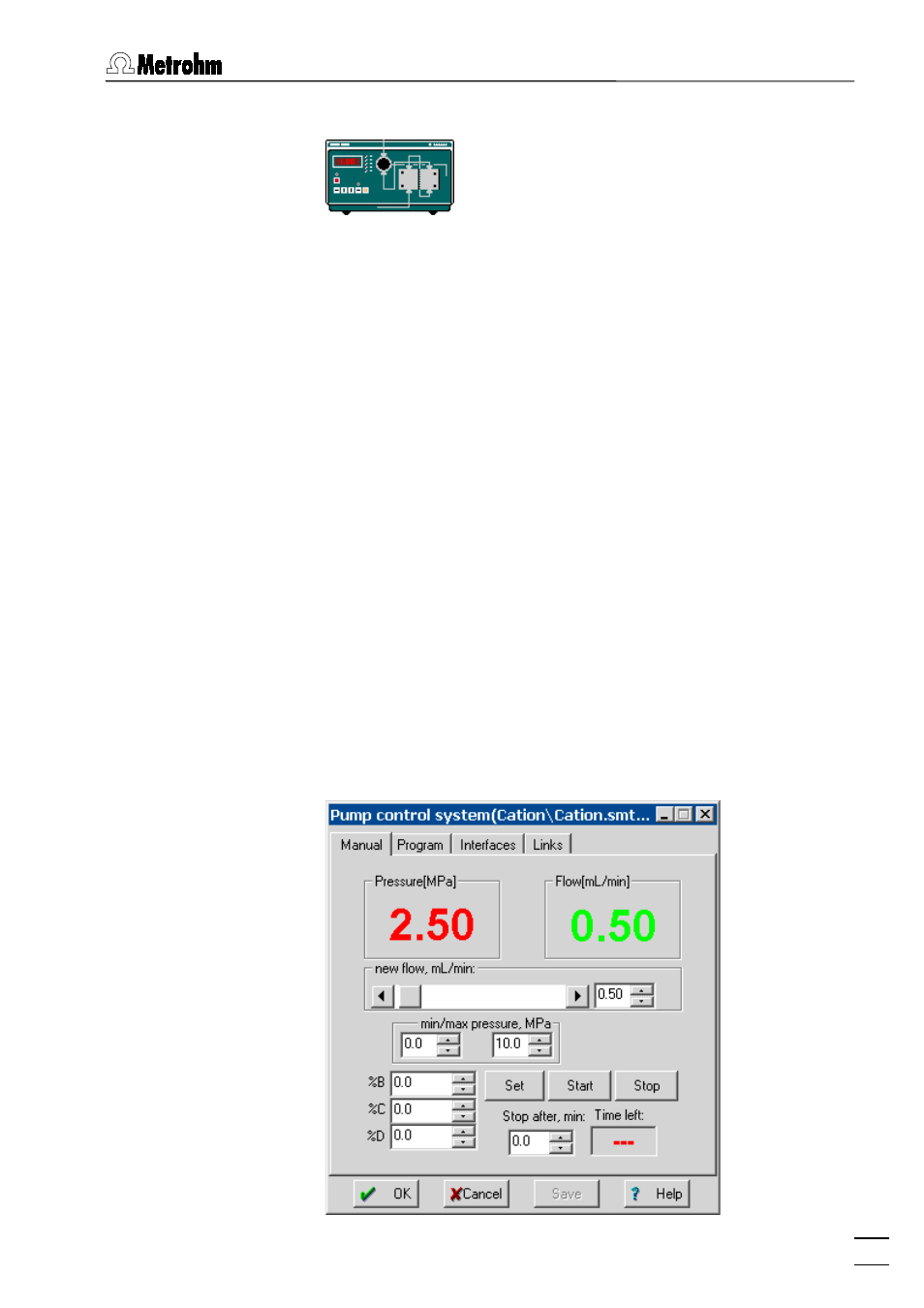

6.8.2 Metrohm SDU icon
The SDU icon is available in the SYSTEM window if an SDU (Solvent
Delivery Unit) has been installed with the New system wizard or by
using the Setup/New devices/Install new device option of the SYS-
TEM window (see section 6.1.2). The SDU icon consists of one to
four 709 IC Pump icons one above the other depending on the
SDU type installed.
If the system is connected and the
SDU icon is clicked with the
right mouse button, the following menu appears:
Open Open the SDU window for parameter settings (this
window can also be opened by double-clicking the
icon).
Unlink Delete the SDU icon from the system.
6.8.3 Metrohm SDU window
SDU icon / Open
The Pump control system window for parameter settings and man-
ual control is opened by selecting this menu option with the right
mouse button or by double-clicking the
SDU icon in the SYSTEM
window. It consists of the four tabs Manual , Program , Interfaces ,
and Links .
Manual
The Manual tab of the Metrohm SDU window is only available for a
connected system.
