5.2 762 IC Interface
IC Net 2.1 33
5.2 762 IC Interface
5.2.1 762 IC Interface features
The Metrohm 762 IC Interface is available as a one system ver-
sion (2.762.0010) or a two system version (2.762.0020). Each sys-
tem can control a complete ion chromatography or HPLC equip-
ment and contains the following parts:
x Two 24-bit Analog-to-Digital Converters (often abbreviated
as ADC) to acquire two analog signals from two different de-
tectors simultaneously (for example conductivity detection and
UV detection).
x One external start input.
x One start button at the interface front panel.
x RS232 communication ports to control up to eight devices
of a complete ion chromatography equipment.
x Seven Event output lines.
The 762 IC Interface is normally connected to a PC COM port us-
ing the 6.2134.100 connecting cable.
For detailed information about the 762 IC Interface see 762 In-
structions for Use.
5.2.2 762 icon on the toolbar
The
762 icon
is available on the toolbar if a 762 IC Interface has
been installed with the new system wizard or by using the
device> option of the WORKPLACE window (see section 5.1.2). By
clicking this icon the 762 IC Interface window for parameter set-
tings opens.
5.2.3 762 icons in the system window

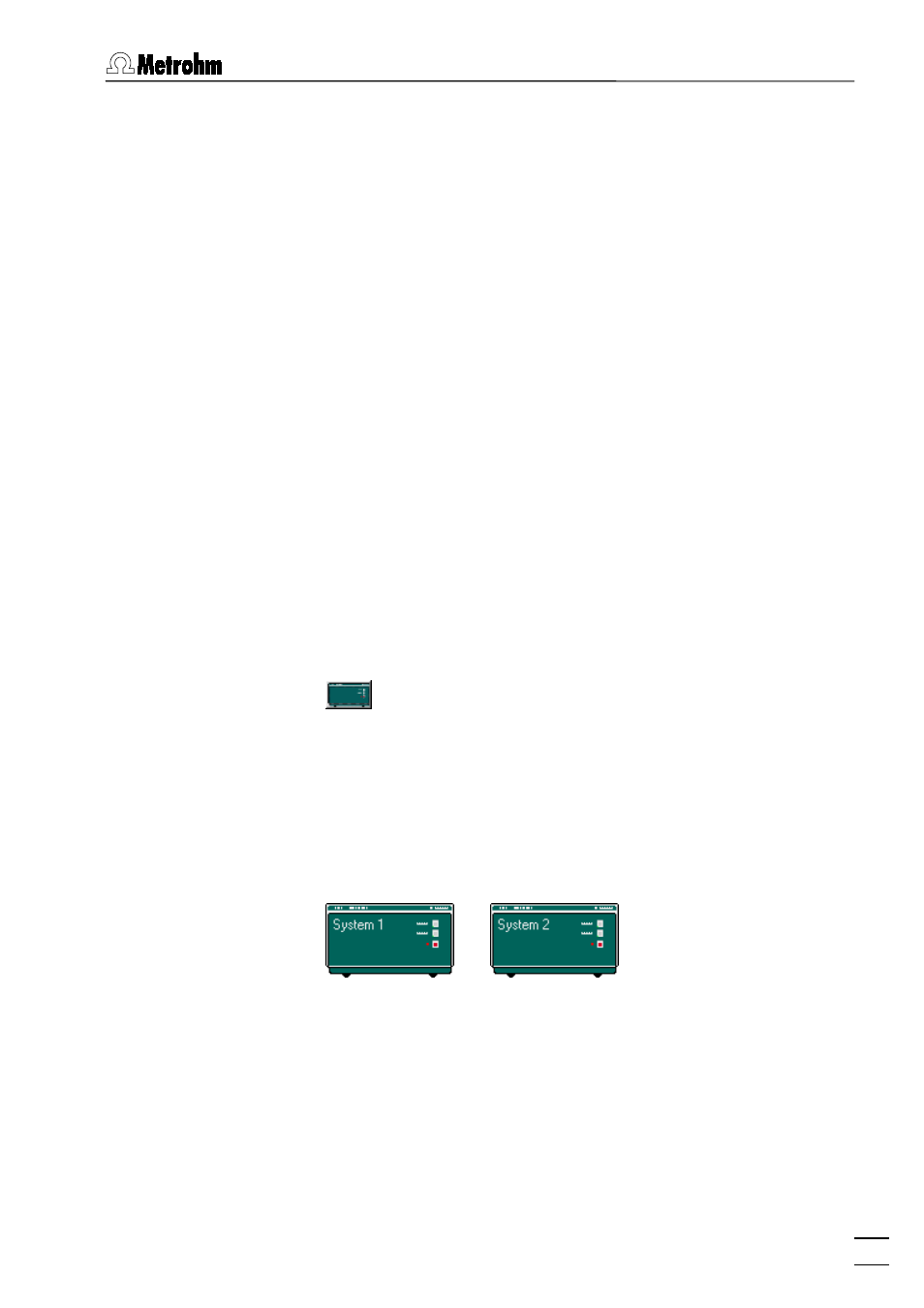

The 762 System 1 and 762 System 2 icons are available in the SYS-
TEM window if the 762 System [1] or 762 System [2] have been in-
stalled with the Install existing devices option (see section 6.1.3).
By clicking this icon using the right mouse button, the following
menu items can be selected:
Open Open the 762 System [#] window for programming the
event output lines (this window can also be opened by
double-clicking the icon).
Unlink Delete the 762 icon from the system.
