2.17 Equipping the rack
In addition to sample vessels, the sample rack can also be equipped with
various so-called Inserts, which can act as receptacles for various utensils.
6.2067.020
6.2067.010
6.2067.000

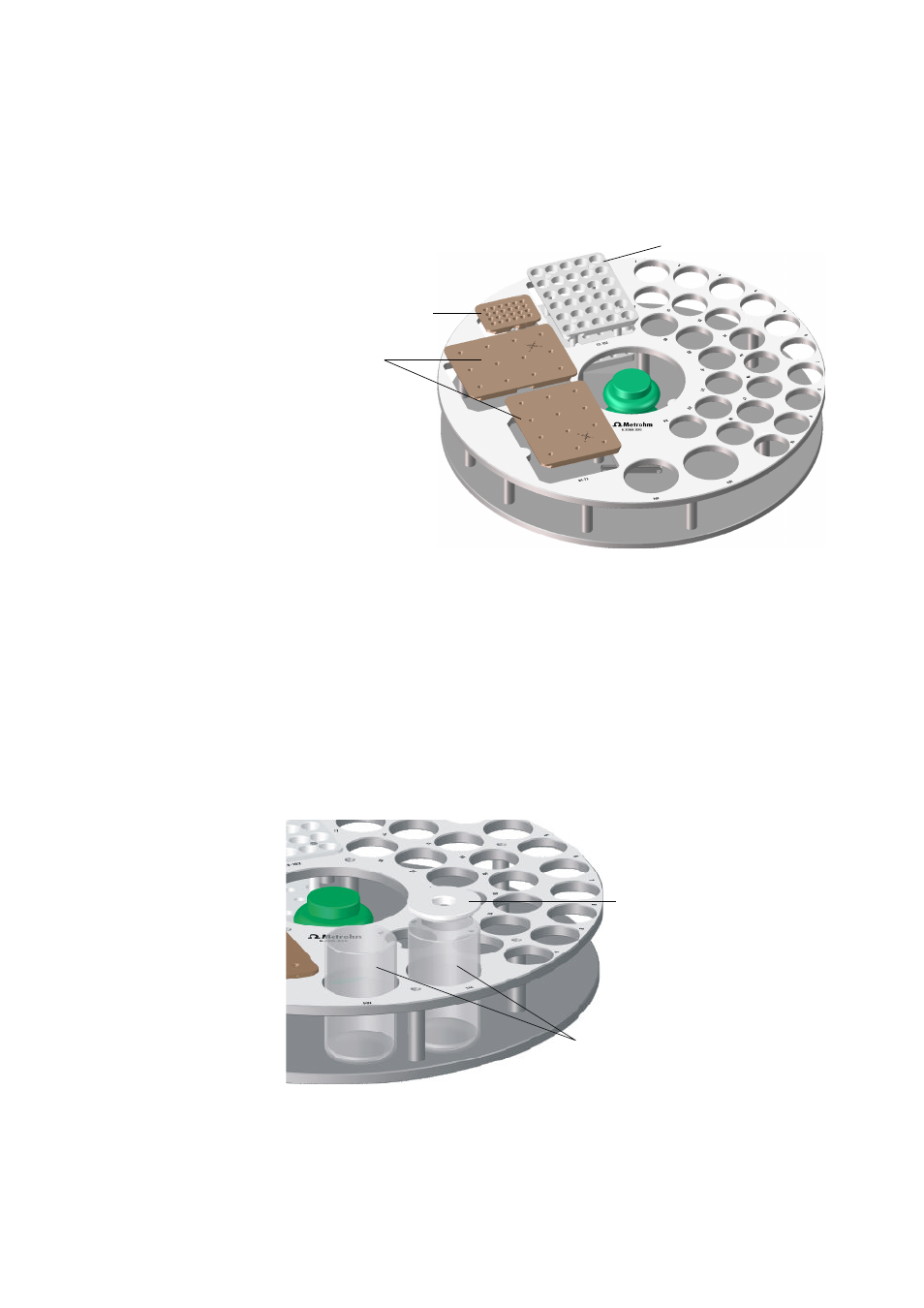

The inserts illustrated above are:
￭ 6.2067.000 - Insert for 6.2743.050 sample tubes (11 mL)
￭ 6.2067.010 - Insert for injection needles with Luer connector (maximum
length 50 mm)
￭ 6.2067.020 - Insert for disposable membrane filters with Luer connector
(maximum diameter 30 mm). This insert has a positioning reticle for
adjusting the rack and the robotic arm.
Each insert is provided with a recess that prevents it from being inserted with
the incorrect alignment.
Two positions on the sample rack are reserved for rinsing and waste beakers.
6.2037.070
6.1432.320
